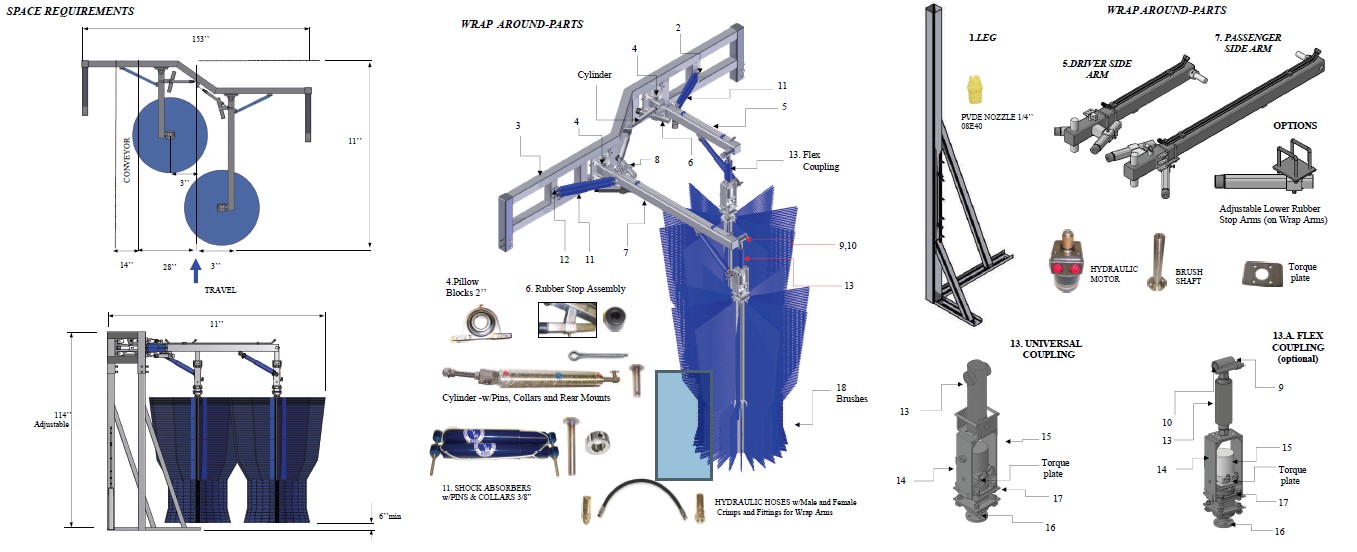

REVERSED WRAP AROUND, Model AG1-WA1: HYDRAULIC & WATER INSTALLATION
SKU Details
| Sku Images | Part# | Description | Diagram Part # | Quantity | |
|---|---|---|---|---|---|
| WA1L | HYDRAULIC & WATER INSTALLATION | - | - | ||
|
|
WA1LA | Side Water Manifold Assembly (on exit legs): | - | 2 | |
|
|
WA1LAA | Manifold | - | 2 | |
|
|
SAE140109P-8 | Hollow Hex Plug ½” NPTM | - | 2 | |
|
|
BRBPP050x050 | Barb 1/2”x ½” NPTM | - | 2 | |
| NZ1-4 | Nozzle ¼” NPTM | - | 10 | ||
| PPP3-4 | Pipe Clamp ¾”, for Water Manifold (w/screw fasteners ¼”-20) | - | 10 | ||
| SAE070115-8 | Tube support sleeves ½” JIC | - | |||
| SAE070110-8 | Nuts ½” JIC | - | |||
| WA1LB | Hydraulic hose assembly: | 8 | |||
| SAE100R7-06x34 | Hydraulic Hose 3/8” I.D. x 34” lg., thermoplastic | - | 8 | ||
| FC5810-0806 | Crimp Fitting SAE 37° JIC swivel (female) | - | 4 | ||
| (10655-8-6) | Catching Fluidpower-“Parker | (4) | |||
| FC5807-0806 | Crimp Fitting SAE 37° JIC male flare | - | 12 | ||
| (10355-8-6) | Catching Fluidpower-“Par | (12) | |||
| DMP1/2 | Damping Clamp ½”, for hydraulic tubes (w/screw fasteners ¼”) | - | 8 |
