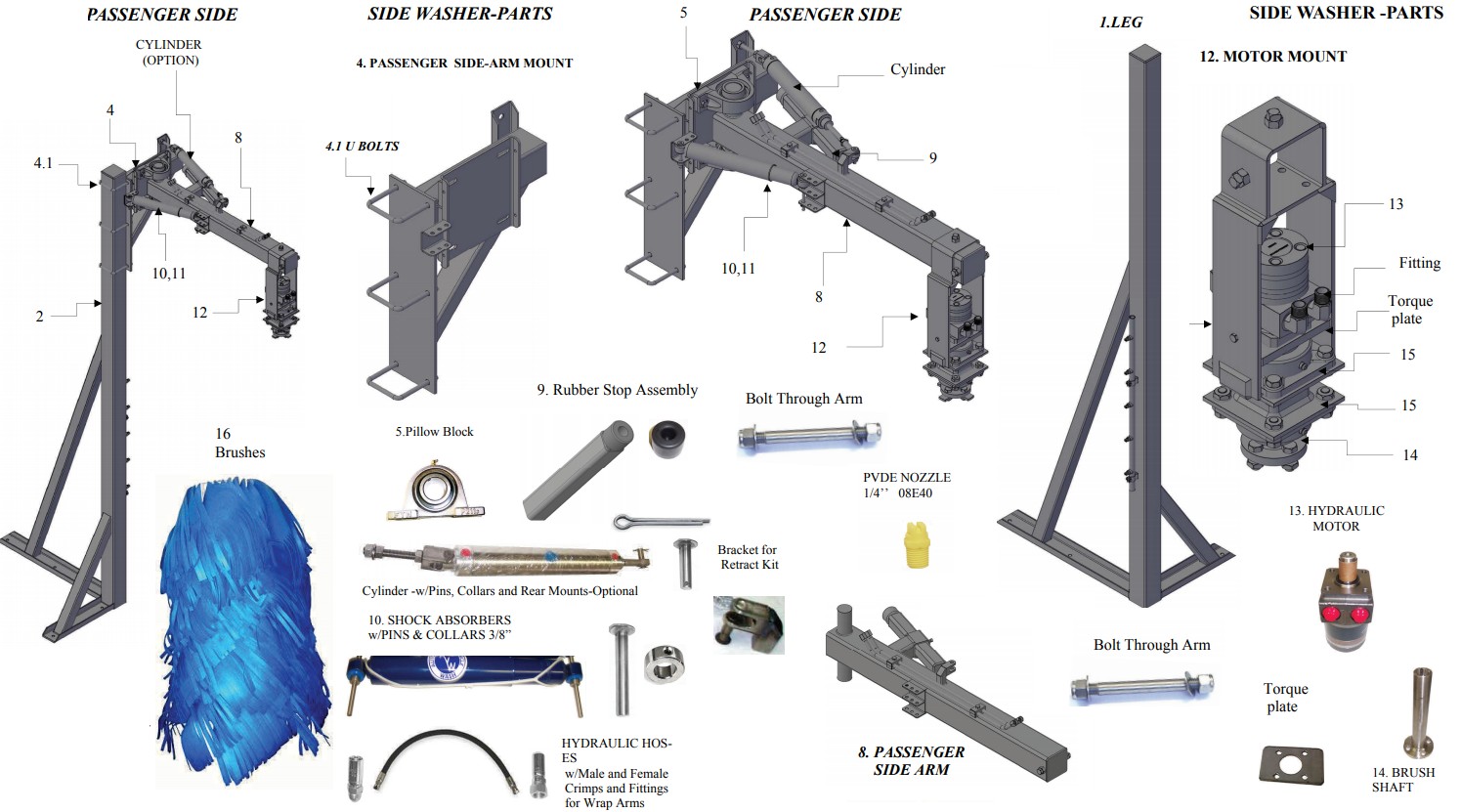

SW2 Free Standing Side Washer - Passenger Side
SKU Details
| Sku Images | Part# | Description | Diagram Part # | Quantity | |
|---|---|---|---|---|---|
| SW2K | BRUSH SHAFT ASSEMBLY: | - | 2 | ||
| SW2P | PASSENGER SIDE LEG | 2 | 1 | ||
| SC5BAA | CROSSBAR 12FT –Optional | 1 | |||
| SW5KA | MOTOR MOUNT | 12 | 2 | ||
| SW2C-0712 | ARM MOUNT ASSEMBLY – PASSENGER SIDE: | - | 1 | ||
|
|
SW2CA | Arm Mount | 4 | 1 | |
| RB2ABB | Square U-Bolt Fastener set 1/2’’ | 4.1 | 3 | ||
| RB2ABB1 | Square U-Bolt 1/2’’x17’’lg | 3 | |||
|
|
SLW12 | Split Lock Washer 1/2” | 3 | ||
| HHCS3816200F | Hex Head Cap Screw 3/8’’-16x2’’LG | 4.2 | 4 | ||
| WA1WB | PILLOW BLOCK 2” | 5 | 4 | ||
| HHCS12132 | Hex Head Cap Screw 1/2“-13x2¼”lg. | - | 8 | ||
| FW12125 | Flat Washer ½”I.D. x 1 ¼” O.D. | - | 16 | ||
| SW1E | PASSENGER SIDE ARM ASSEMBLY: | - | 1 | ||
| SW1EA | PASSENGER side ARM 42”lg. | 8 | 1 | ||
| WA1DAD | Bracket For Retract Kit (welded) | - | 1 | ||
|
|
WA1DB | Rubber Stop Arm Assembly | 9 | 1 | |
| WA1DBA | Stop Arm | - | 1 | ||
|
|
WA1DBB | Rubber Bumper | - | 1 | |
| HHCS3816125 | Hex Head Cap Screw 3/8” – 16 x 1 ¼” LG | - | 1 | ||
| FW380875 | Flat Washer 3/8”I.D.x7/8”O.D. | - | 1 | ||
| SQHS3816075 | Square Head Screw 3/8”-16x ¾” lg. | - | 2 | ||
| SW1DC-0209 | Top Arm with: | - | 1 | ||
| THRD1213500 | Threaded Rod ½’’-13x5’’lg | 1 | |||
| FW12100 | Flat Washer ½” I.D. x 1” O.D. | 2 | |||
| NLN1213 | Nylon Lock Nut ½”-13 | 2 | |||
|
|
WA1FA | SHOCK ABSORBER ASSEMBLY: | 10 | 2 | |
| WA1FAA | Shock Absorber | 11 | 2 | ||
|
|
WA1FA1 | UHMW Bushing 3/8” I.D. | - | 4 | |
| TB1AEA | PIN Ø 3/8” x 3” LG. | - | 4 | ||
|
|
WA1FC | COLLAR 3/8” | - | 4 | |
| SQHS1213150 | Square Head Screw ½” – 13 x 1½” LG. (for sleeves) | - | 4 | ||
| HHCS3816075 | w/Hex Head Screw | - | 4 | ||
| NLN3816 | Nylon Lock Nuts | - | 4 | ||
|
|
WA1KM | Hydraulic Motor, displacement 11.9 [cu.in./rev.] | 13 | 2 | |
| EL90STL050JIC050NPTF | Straight Fitting ½” NPTM x ½ ” JIC | - | 4 | ||
| WA1K1 | Torque Plate | - | 2 | ||
|
|
WA5KB-0508 | BRUSH SHAFT Ø 1 ½” x 9” lg. | 14 | 2 | |
| WA1KCB | 4-bolt Bearing 1 ½” | 15 | 4 | ||
| HHCS1213175 | Hex Head Cap Screw ½” – 13 x 1 ¾” lg. | - | 16 |
