DOUBLE PUMPING STATION 2x20GPM, Model PS2H25



The AVW DOUBLE HIGH PRESSURE PUMPING STATION features a gravity feed tank, with adjustable controls contained inside of tank. No dripping or leakage controls on the floor.

Product Features:

  • Heavy Duty Stainless Steel
  • Contained Controls
  • Clean Design

SKU Details

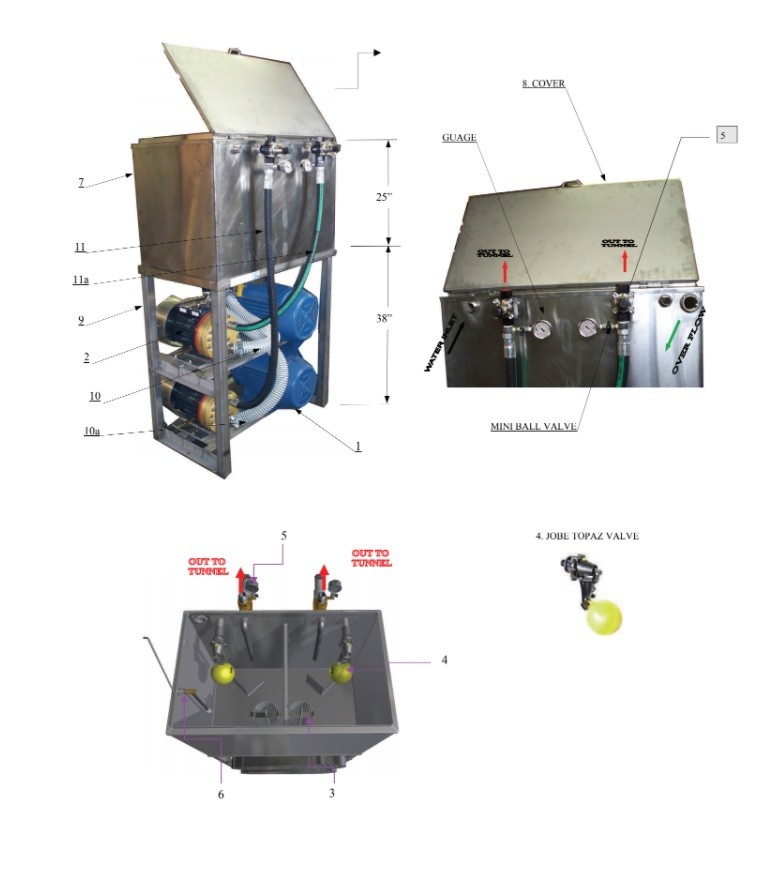

Sku Images Part# Description Diagram Part # Quantity
EM15-1800-254TC ELECTRICAL MOTOR - 15HP, 1750RPM, Frame 254TC C-Face, (Shaft Dia. 1-5/8’’), Volts 230/460, Amps 36.6/18.3, 60Hz, 3Phase 1 2
PSH25-P20 PUMP- Hydra-Cell –”Wanner Engineering”-Pump Displacement 4.4(cu.in/rev) 20GPM max at 1150RPM max (For this AVW Pumping Station : 20.9GPM at 1094RPM & 1085PSI) Inlet Port 1-1/2’’NPT, discharge port 1’NPT, Shaft Dia. Ø1-1/8’’ 2 2
BRB200x150 (12°) 12° BARB (HOSE NIPPLE) 2” x 11?2”NPT male (mounted to Pump’s inlet), stainless steel - 2
SHV-33V500SDS MOTOR PULLEY - 5.00”O.D “APEX” - 2
SHV-33V800SK PUMP PULLEY - 8.00”O.D “APEX” - 2
VBELT3R600 V-BELT 60”LG. (center distance 19 3/4”) - 6
STB-SDS158 SPLIT TAPER BUSHING 1-5/8" , for motor shaft - 2
STB-SK118 SPLIT TAPER BUSHING 1-1/8” , for pump shaft - 2
BV200X200 PLASTIC BALL VALVE 2”NPT x 2”NPT (mounted to Hydraulic 0053uction Strainer’s pipe 2”) - 2
BRB200x200 (12°) 12° BARB (HOSE NIPPLE) 2” x 2”NPT male, stainless steel (mounted to Ball Valve) - 2
PSH25-SS20 A.V.W. HYDRAULIC SUCTION STRAINER, port size 2”NPT, Ø4” x 101?2” height, perforated metal (mounted to pipe 2”) 3 2
FV1-0411 JOBE TOPAZ VALVE 1 4 1
PSH25-RV20 PRESSURE REGULATING VALVE, capacity 3-20GPM, 500-1000psi, port size 1”NPTF, “HYDRA-CELL”, “WANNER ENGINEERING” 5 2
GP1500 GAUGE 0-3000PSI bottom connection 1?4 ”, liquid filled - 2
NV1-4-1007 MINI BALL VALVE- -1/4"NPT Male x female - 2
SAE140239-4-4 SAE140239-4-4 - 2
PSH25-PDT1x18 BLACK PVC PIPE 1"sch 80 x 18" LG (Discharge Down Tube) - -
LLS1 LOW LEVEL SWITCH 1/4 (w/pipe 12”LG.) ? Madison Co 6 1
PS2H25-T TANK - (divided tank, common water) 38” x 22”W x 25”H 7 1
PS2H25-V COVER (LID) 8 1
LS1 LID SUPPORT - 1
PS2H25-A STAND (Legs: Sq.Tub. 2” x 2” x 27”LG.& 39’’LG) 9 1
PSH25-PC GUARD (PULLEYS’ COVER) - 2
CNCTSTL100JIC100MNPT-TAP STRAIGHT FITTING 1”MNPT x1”JIC w/HOLE - 1
PS2H25-NHU INTAKE HOSE PVC (McMaster-Carr): 2”I.D. x 47”LG. (upper pump’s) 10 1
PS2H25-NHL 2”I.D. x 28”LG. (lower pump’s) 10 1
PSH25-NH-C INTAKE HOSE CLAMP (McMaster-Carr) - 4
PS2H25-DHU DISCHARGE HOSE (PRESSURE LINE): 1”I.D. x _19”LG. (upper pump’s) “Aeroquip” 11 1
PS2H25-DHL 1”I.D. x 26-1/2”LG. (lower pump’s) “Aeroquip” (w/Crimp Fittings: one side-male, other side- female) 11 1
