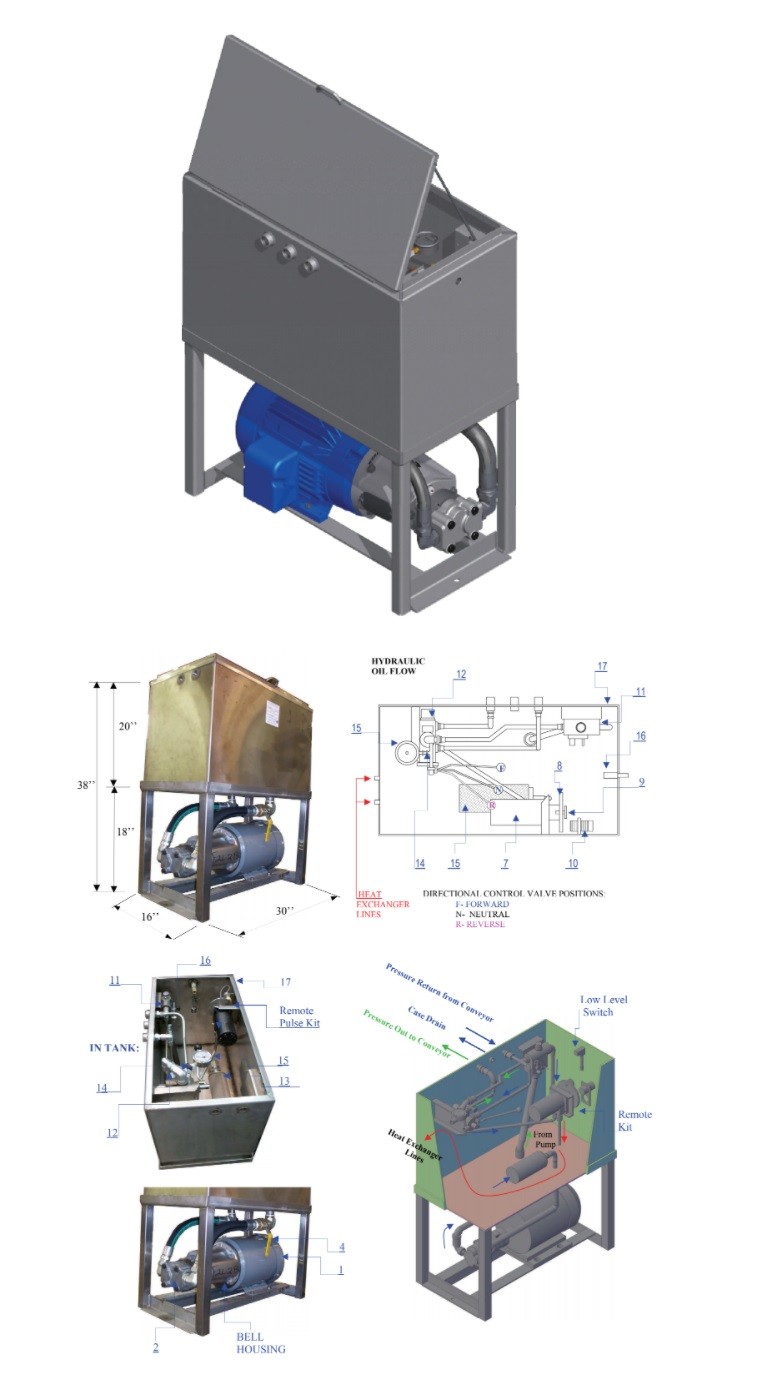

CONVEYOR POWER UNIT, Model CPU3




SKU Details



Sku Images Part# Description Diagram Part # Quantity ADDTOCARTDETAILSANDPRICE
EM07.5-1800-213TC (EM10-1800-215TC) ELECTRICAL MOTOR - 7.5HP (or 10HP,), 1770 RPM, Frame 213TC C-Face, (Shaft Dia. 1-3/8’’), Volts 208-230/460, Amps 21.7-19.6/9.80, 60Hz, 3Phase 1 1
EL90STL125JIC1625ORB GEAR PUMP INLET ELBOW 90° 1 1/4 JIC 37° Flare x 1-5/8”-12 UN/UNF-2A ORB, Steel 2a 1

GP09-P16 GEAR PUMP displacement 1.27 [cu.in./rev.], 9.67GPM (at 1760RPM) haft dia. Æ7/8” straight -inlet (suction) 1-5/8”-12UN-2B, SAE20, Straight Thread -outlet (discharge) 1-1/16”-12UN-2B, SAE12, Straight Thread 2 1

EL90STL075JIC10625ORB GEAR PUMP OUTLET ELBOW 90° 3/4 JIC 37° Flare x 1-1/16” ORB, Steel 2a 1

CPU1-PL FLEXIBLE SHAFT COUPLING LOVEJOY 3 1

CPU1-PLM (motor shaft dia. 1-3/8”, 3 -

CPU1-PLP pump shaft dia. 7/8”) 3 -

CPU1-SP w/SPIDER 3 1

BH0807-F2B BELL HOUSING - 1

BV3-4 BALL VALVE 3?4 ” 4 1
CPU2-NH-0807 INTAKE HOSE - 1 –1/4’’I.D. x 16-1/2” LG. CRIMP FITTINGS 5 1
1AV20MP20 Male - -

1AV20FJ20 Female - -

CPU2-DH-0807 DISCHARGE HOSE (PRESSURE LINE) 1” I.D. x 17”LG. CRIMP FITTINGS 6 1
1AA16MP16 CRIMP FITTINGS 1” (for Discharge Hose): - Male (“Aeroquip”) - 1

1AA16FJ16 Female (“Aeroquip”) - 1

CPU2R Remote Pulse Kit - 1

CPU2RM HYDRAULIC MOTOR, displacement 22.6 [cu.in./rev.] Parker Other 7 1
SB2ABDA OSCILLATING DISK 8 -

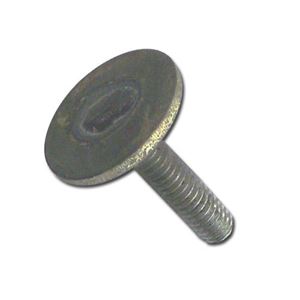

CN1BD Proximity Target 9 1

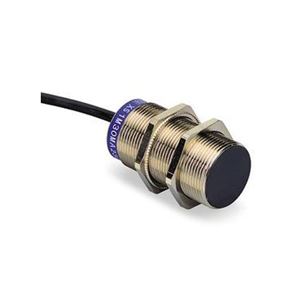

CN1SW PROXIMITY SWITCH 10 1

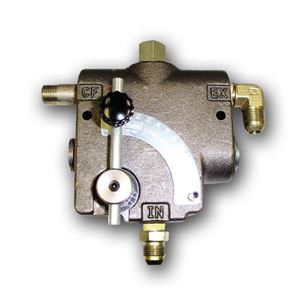

CPU1-FC09 FLOW CONTROL (SPEED CONTROL) Control Flow 8-16GPM, w/ports 1?2 ”NPT w/Hose 3/4’’I.D x 9-3/4’’ Lg, (Hydraulic Oil Line from pump ) 11 1

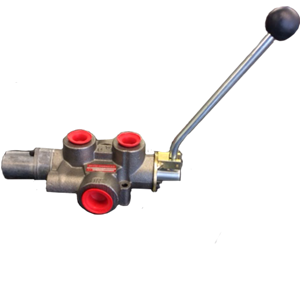

CPU1-CV09 DIRECTIONAL CONTROL VALVE, flow up to 18GPM, inlet & outlet ports 3?4 ”NPT, work port 1?2 ”NPT pressure up to 3000PSI, 12 1

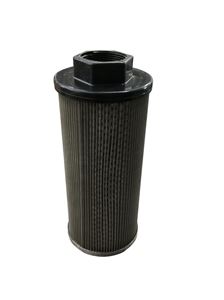

SS150 HYDRAULIC SUCTION STRAINER, port 1 1?2” NPT 13 1

SAE140140-24-12 w/Reducer Bushing 11?2” NPT male x 3?4 ” NPT female 13 1
CNCTSTL050JIC075MNPT CONNECTOR 1/2” JIC x 3/4” NPT MALE w/HOLE 14a 1

NV1-4-1007 MINI BALL VALVE- -1/4"NPT Male x female 14b 1

GP1500 GAUGE 0-3000PSI bottom connection 1?4 ”, liquid filled 15 1

LLS1-0507 LOW LEVEL SWITCH 1?4 ” 16 1
CPU3-T TANK 30” x 16” x 20” -With 3 Couplings 3/4’’ (welded ) for following lines: Return, Pressure Out and Case Drain -w/two Couplings 3?4” (welded to tank), for Heat Exchanger’s tubing 17 1

CPU2-V COVER (LID) - 1
LS1 LID SUPPORT - -
CPU2-A STAND (Legs: sq.tub. 1 1?2” x 1 1?2” x 18” lg.) - 1
SAE070115-8 Tube support sleeves ½” JIC - -
SAE070110-8 Nuts ½” JIC - -
- - -
