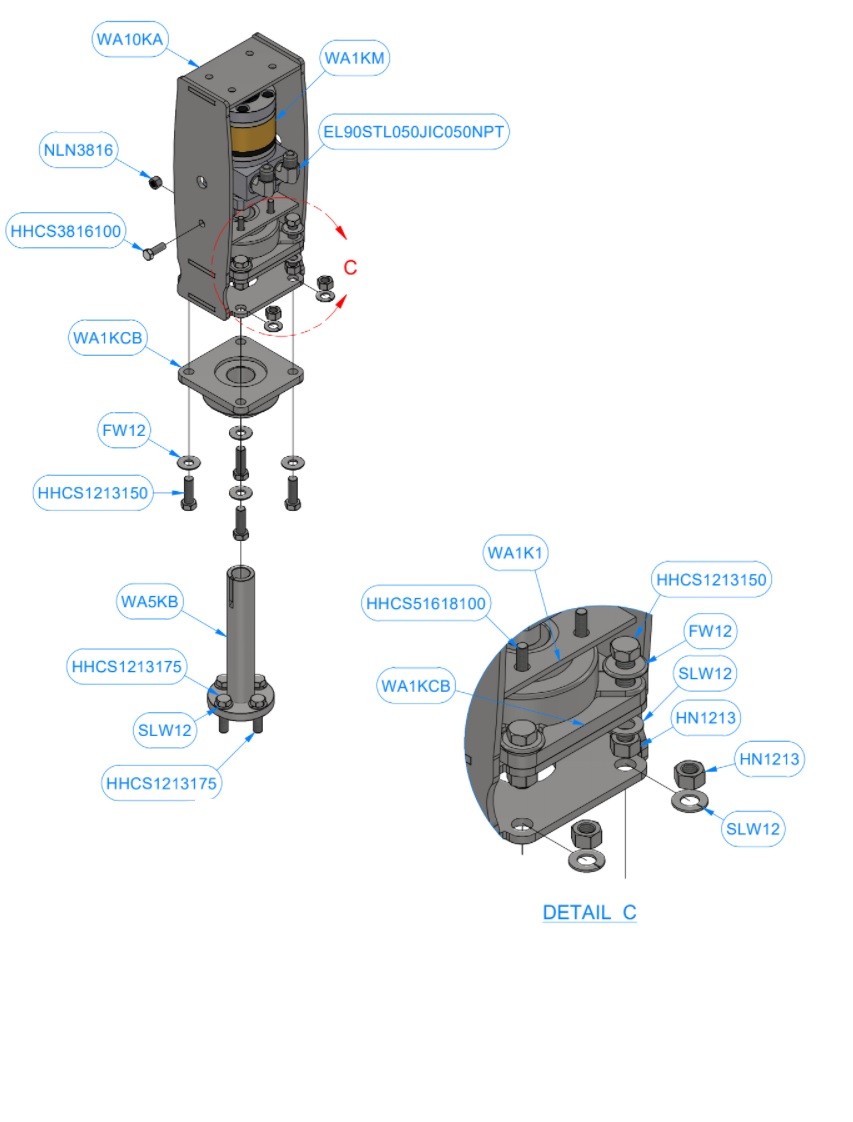

WRAP AROUND SHAFT ASSEMBLY, Model WA10K
SKU Details
| Sku Images | Part# | Description | Diagram Part # | Quantity | |
|---|---|---|---|---|---|
| EL90STL050JIC050NPT | ELBOW (1/2" NPT MALE X 1/2" JIC MALE) | - | 2 | ||
| FW12 | Flat Washer 1/2”I.D.x1-1/4”O.D. | - | 8 | ||
| HHCS1213150 | Hex Head Cap Screw 1/2”-13 x 1 1/2” LG | - | 8 | ||
| HHCS1213175 | Hex Head Cap Screw ½” – 13 x 1 ¾” lg. | - | 4 | ||
| HHCS3816100 | 3/8" - 16 x 1" UNC HEX SCREW | - | 2 | ||
| HHCS51618100 | 5/16"-18 x 1" L Hex Screw | - | 4 | ||
| NLN3816 | Nylon Lock Nuts | - | 2 | ||
|
|
SLW12 | Split Lock Washer 1/2” | - | 12 | |
| WA1K1 | Torque Plate | - | 1 | ||
| WA1KCB | 4-bolt Bearing 1 ½” | - | 2 | ||
|
|
WA1KM | Hydraulic Motor, displacement 11.9 [cu.in./rev.] | - | 1 | |
|
|
WA2H | UNIVERSAL COUPLING (Optional) | - | 1 | |
|
|
WA5KB | Brush Shaft Æ1 ½” x 10 ½” lg. | - | 1 | |
| WA10KA | HYDRAULIC MOTOR MOUNT | - | 1 |
