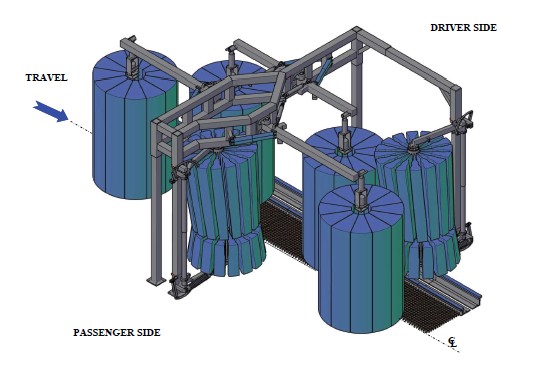

DUAL Z-WRAP CONTOUR COMBO KAADY-STYLE, Model DWACB2


DUAL Z-WRAP CONTOUR COMBO KAADY-STYLE, Model DWACB2

SKU Details

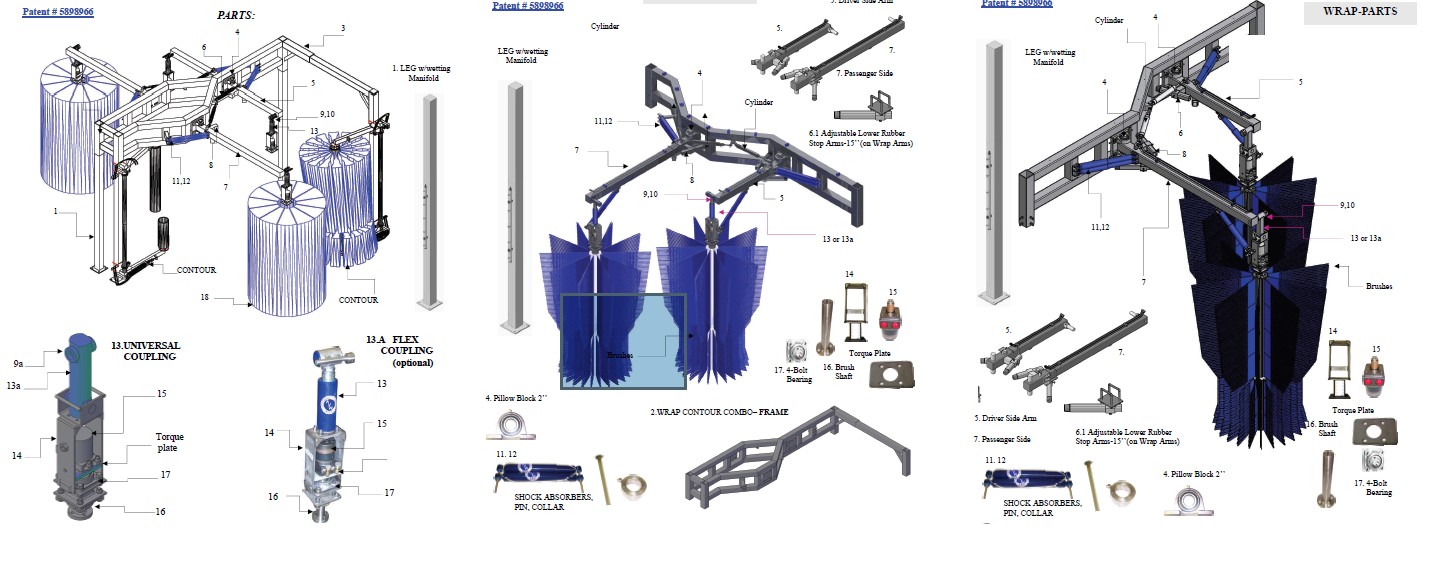

Sku Images Part# Description Diagram Part # Quantity ADDTOCARTDETAILSANDPRICE
WC3A Leg, w/Manifold, for Wrap Mitter Combo Leg, SS 1 4

DWACB1C FASTENING BAR 2 1
SQHS1213150 Square Head Screw ½” – 13 x 1½” LG. (for sleeves) - 16

HHCS3816200F Hex Head Cap Screw 3/8’’-16x2’’LG - 16

WA1CB1AA Extension Bar, for Wrap-Contour Third Leg 3 1

WA1WB PILLOW BLOCK 2” 4 8
HHCS1213225 Hex Head Cap Screw ½” – 13 x 2 ¼” LG. - 16

FW12125 Flat Washer ½”I.D. x 1 ¼” O.D. - 32

SLW1/2 Split Lock Washer - 16
WA1D DRIVER SIDE ARM ASSEMBLY: - 2

WA1DA Driver Side Arm 48”lg. 5

WA1DB Rubber Stop Arm Assembly 6 4

WA1DBA Stop Arm - 4

WA1DBB Rubber Bumper - 4

HHCS3816125 Hex Head Cap Screw 3/8” – 16 x 1 ¼” LG - 4

FW38087 Flat Washer 3/8” I.D. x 7/8” O.D - 4
HN3816 HEX NUTS 3/8’’ - 4

WA3DB-2639 ADJUSTABLE LOWER RUBBER STOP ARM (OPTION) 6.1 2

SQHS3816075 Square Head Screw 3/8”-16x ¾” lg. - 8

WA1E PASSENGER SIDE ARM ASSEMBLY: - 2

WA1EA Passenger Side Arm 76” LG 7 2

WA1DAD Bracket For Retract Kit (welded) - 2
WA11 PLASTIC SPACER 9 4

WA11-0112 PLASTIC SPACER ( for UNIVERSAL COUPLING) 9A 4

WA2J-2P 2-PIECE COLLAR 1-1/2’’ 10 4

WA1FA SHOCK ABSORBER ASSEMBLY: 11 4

WA1FAA Shock Absorber - 4
WA1FA1 UHMW Bushing 3/8” I.D. - 8

WA1FB PIN Æ3/8” x 6” LG. 12 8

WA1FC COLLAR 3/8” - 8

WA2H-0112 UNIVERSAL COUPLING ASSEMBLY 13a 4
WA2HA-0112 UHMW Flex Coupling - 4
WA1H2 UHMW Bushing 1 ½” I.D. - 4
WA2HC Mounting Channel - 4
WA2HD Shaft 1 ½” x6 ¼” LG - 4
WA1J Collar 1 ½”I.D. x 2 ½’’ O.D. x 7/8” width - 8

WA1H FLEX COUPLING ASSEMBLY (optional) 13 4
WA1HA Welded Flex Coupling - 4
WA1HB Wrap Cam ¾” I.D. - 4
WA1H1 UHMW Sleeve - 4
HHCS3816075 w/Hex Head Screw 16

WA5K WRAP AROUND SHAFT ASSEMBLY 14 4

WA5KA Motor Mount 4

NLN3816 Nylon Lock Nuts 8

WA1KM Hydraulic Motor, displacement 11.9 [cu.in./rev.] 15 4
SAE070202-8-8 Fitting 90° elbow ½” NPTM x ½” JIC 8
WA1K1 Torque Plate 4
WA5KB Brush Shaft Æ1 ½” x 10 ½” lg. 16 4

WA1KCB 4-bolt Bearing 1 ½” 17 8
HHCS1213175 Hex Head Cap Screw ½” – 13 x 1 ¾” lg. 32

FW12100 Flat Washer ½” I.D. x 1” O.D. 32
WA1M-5/10x72 BRUSH ASSEMBLY (design: 5” core, 72”lg.) 18 4
WA1L HYDRAULIC & WATER INSTALLATION 19 -
WA1LA Side Water Manifold Assembly (on exit legs): 4

WA1LAA Manifold 4

SAE140109P-8 Hollow Hex Plug ½” NPTM 4

BRB1/2x1/2 Barb ½” x ½” NPTM 4
NZ1-4-05E80 NOZZLE ¼” NPT, Yellow 20
PPP3/4 Pipe Clamp ¾”, for water hose and side water manifolds (w/screw fasteners ¼”) 20
SAE070115-8 Tube support sleeves ½” JIC 22
SAE070110-8 Nuts ½” JIC 22
WA1LB Hydraulic hose assembly: 8
SAE100R7-06x34 Hydraulic Hose 3/8” I.D. x 34” lg., thermoplastic 8
FC5810-0806 Crimp Fitting SAE 37° JIC swivel (female) 4

FC5807-0806 Crimp Fitting SAE 37° JIC male flare 12

DMP1/2 Damping Clamp ½”, for hydraulic tubes (w/screw fasteners ¼”) 8
HHCS1420125 Hex head cap screw ¼” -20 x 1¼”LG. 8
