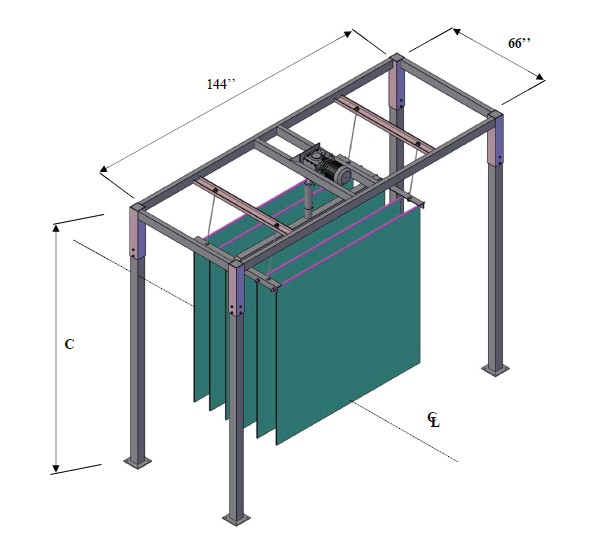

MITTER CURTAIN w/ELECTRIC DRIVE Model, MC2-EL




SKU Details

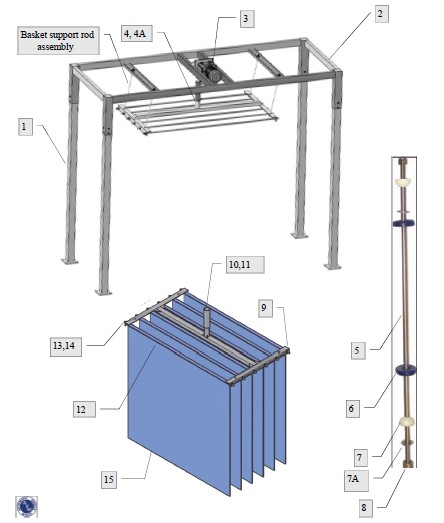

Sku Images Part# Description Diagram Part # Quantity ADDTOCARTDETAILSANDPRICE
MC1A LEG 1 4

MM5B-7 FRAME ASSEMBLY: - 1
MM5BA-7 Frame 2 1
SQHS1213150 Square Head Screw ½” – 13 x 1½” LG. (for sleeves) 3 16

MC2BB-1104 Basket Drive Assembly: - 1

WA1KM Hydraulic Motor, displacement 11.9 [cu.in./rev.] 4 1
SAE070302-8-8 Fitting 45° elbow ½” NPTM x ½ ” JIC - 2
MC2BBA-P1-1-0106 Cam Arm (w/welded weld-on hub) 5 1

P1 1” Split Taper Bushing P1 1” 6 1
HHCS3816075 w/Hex Head Screw - 4

P1 1-1/2 Split taper bushing P1 1-1/2” ( Option) 6a 1
MC1C BASKET SUPPORT ROD ASSEMBLY: 7 4

MC1C1 Basket support Rod ½” x 27” lg. - 4

MC1C2 Basket support Disk UHMW - 4

MC1C3 Basket support Halfball - 8

FW12125 Flat Washer ½”I.D. x 1 ¼” O.D. - 8

NLN1213 Nylon Lock Nut ½”-13 - 8

MM5D-7 BASKET ASSEMBLY - 1

MM4DA-7 Basket Frame 7’ 8 1

MC1DB Sleeve Assembly - 1

MC1DB1 Sleeve 9 1

MC1DB2 UHMW Bushing 1” I.D. - 1

SQHS3816075 Square Head Screw 3/8”-16x ¾” lg. 10 3

HN3816 HEX NUTS 3/8’’ - 3

MC2DC Curtain Rod Assembly 11 4

MC2DCA Curtain Rod 7’4”lg. - 4

MC1DC2-3/4x2x3/8 Plastic Spacer ¾ ” I.D.x2” O.D. x 3/8” width 12 8
PLHN3410 Plastic Hex Nut ¾”-10 16

MC1E CURTAIN (CLOTH) 14 36
MM5L HYDRAULIC & WATER INSTALLATION -
MM5BC Top Water manifold Assembly: - 1
MM5BCA Top Water Manifold (straight, tubing 1” O.D. x 96” lg. w/9 water outlets) - 1
SAE140109E-8 Hex Head Plug ½” NPTM (white plastic) - 1
BRB1/2x1/2 Barb ½” x ½” NPTM - 1
NZ1/4 Nozzle ¼” NPTM - 9
MC1BD Beam Clamp ¾”, for Water Manifold (w/screw fasteners ¼”-20) - 2

SAE010115-8 Tube Support Sleeves ½” JIC - 8

SAE070110-8 Nuts ½” JIC - 8
DMP1/2 Damping Clamp ½”, for hydraulic tubes (w/screw fasteners ¼”) - 10
