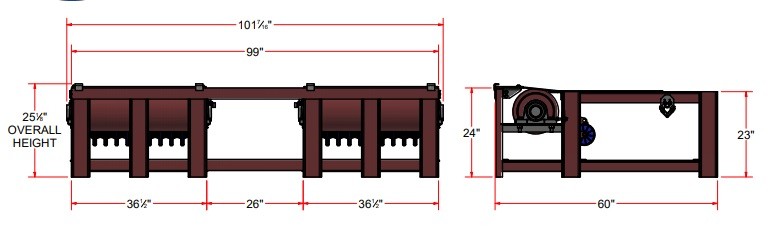

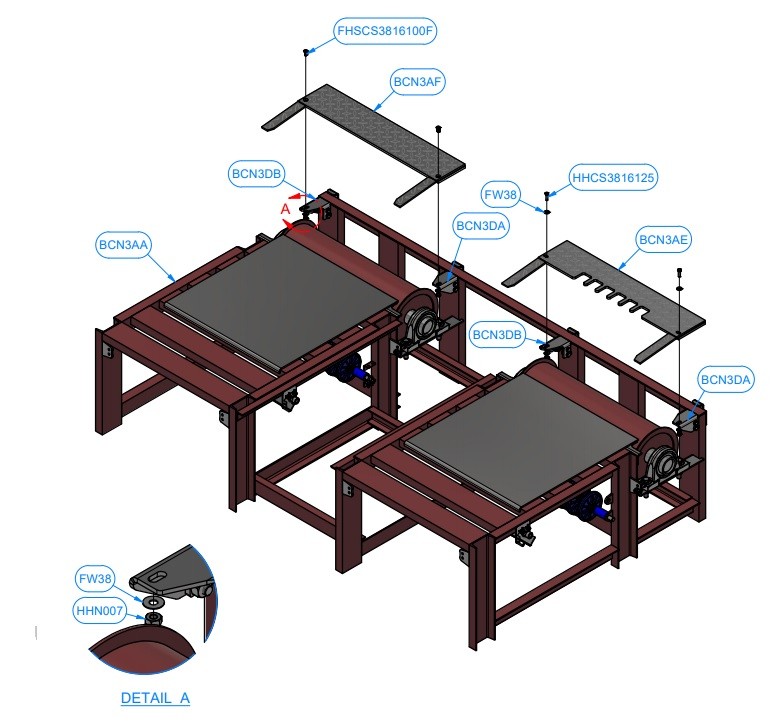

TAKE-UP SECTION - BCN3A
SKU Details
| Sku Images | Part# | Description | Diagram Part # | Quantity | |
|---|---|---|---|---|---|
| BCN3AA | TAKE-UP FRAME - WELDMENT | 1 | 1 | ||
|
|

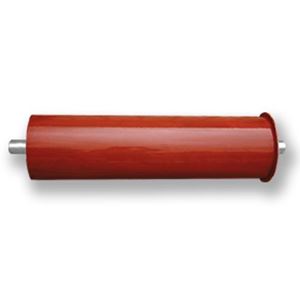

BCN3AD | TAKE-UP DRUM | 2 | 2 | |
| BCN3AF | TRANSFER PLATE / TAKE-UP (PASSENGER SIDE) | 3 | 1 | ||
| BCN3AE | TRANSFER PLATE / TAKE-UP (PASSENGER SIDE) | 4 | 1 | ||
| BCN3CA8 | DRAIN TROUGH | 5 | 2 | ||
| BCN3DA | REMOVABLE TRANSFER PLATE MOUNTING BRACKET [RIGHT] | 6 | 2 | ||
| BCN3DB | REMOVABLE TRANSFER PLATE MOUNTING BRACKET [LEFT] | 2 | |||
| BCN3QU | SUPPORT ROLLER | 7 | 2 | ||
|
|
BRG-BR1-WB21516 | PILLOW BLOCK 2 15/16" | 8 | 4 | |
| FHSCS3816100F | 3/8"-16 UNC x 1" LG. FLAT HEAD CAP SCREW | 9 | 2 | ||
| FW14, 34 | 1/4" & 3/4" FLAT WASHER | 10 | 8,16 | ||
| FW38 | WASHERS 3/8” and | 11 | 6 | ||
| HHCS1213225 | Hex Head Cap Screw ½” – 13 x 2 ¼” LG. | 12 | 4 | ||
| HHCS3410312 | 3/4"-10 UNC x 3 1/2" LG. HEX SCREW | 13 | 8 | ||
| HHCS3816125 | Hex Head Cap Screw 3/8” – 16 x 1 ¼” LG | 14 | 2 | ||
| HHN001 | 1/4"-20 18-8ss Heavy Hex Nu | 15 | 16 | ||
| HHN007 | 3/8"-16 18-8ss Heavy Hex Nut | 16 | 4 | ||
| HN3410 | HEX NUT 3/4’’-10 | 18 | 8 | ||
|
|
SLW34 | 3/4" SPLIT LOCK WASHER | 19 | 8 | |
|
|
UB-R025x075x550 | Round U-Bolt D 1/4" x 3/4" x 2 1/4" L | 20 | 2 | |
| UB-R025X100BLX200LL | Round U Bolt D 1/4" x 1" x 2" L | 21 | 4 | ||
|
|

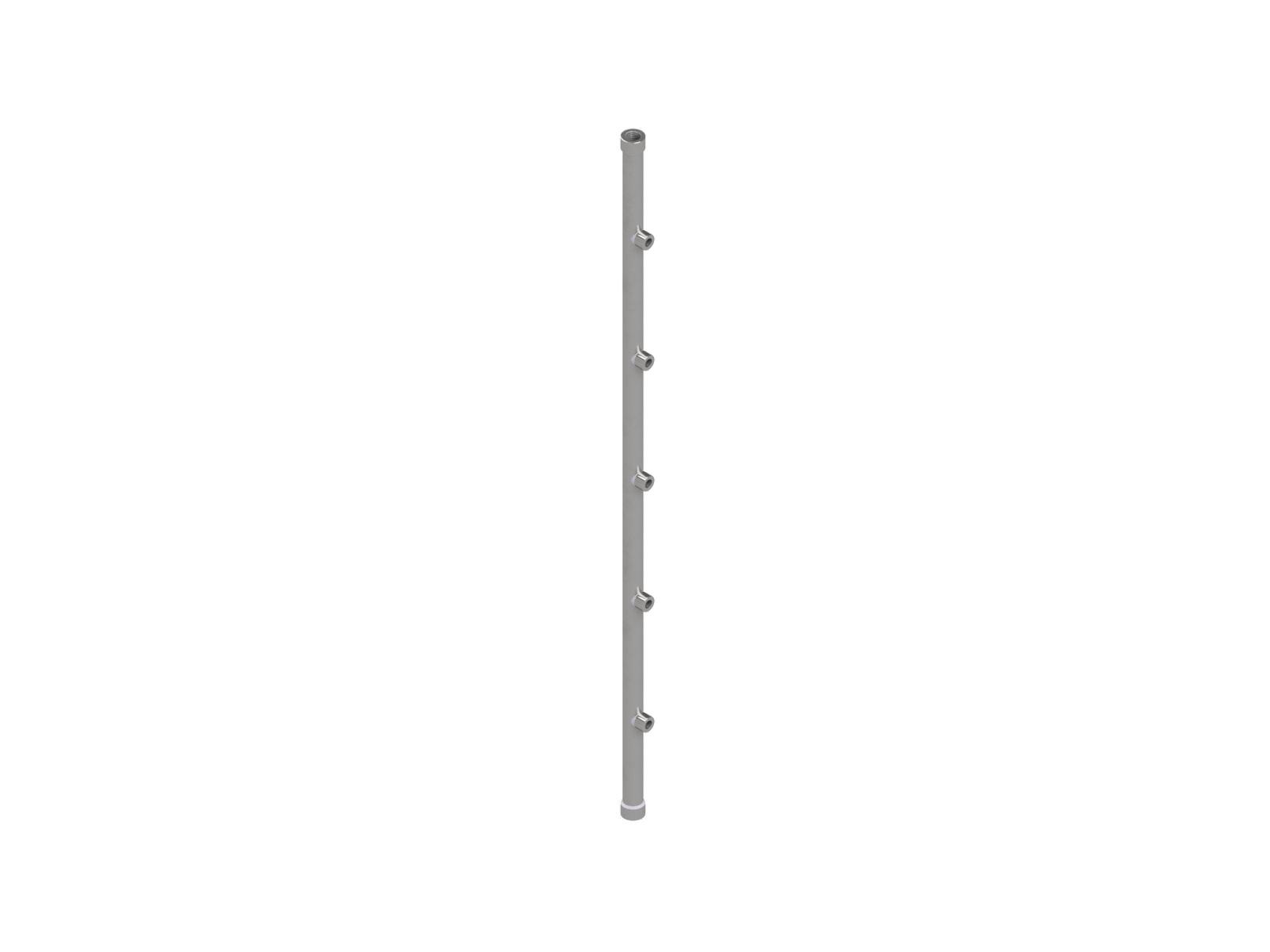

WA1LAA-38 | 38" WELDED MANIFOLD ASSEMBLY | 22 | 2 |
