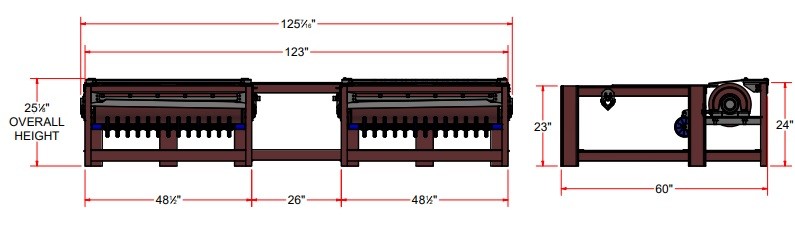

TAKE-UP SECTION - BCN4A
SKU Details

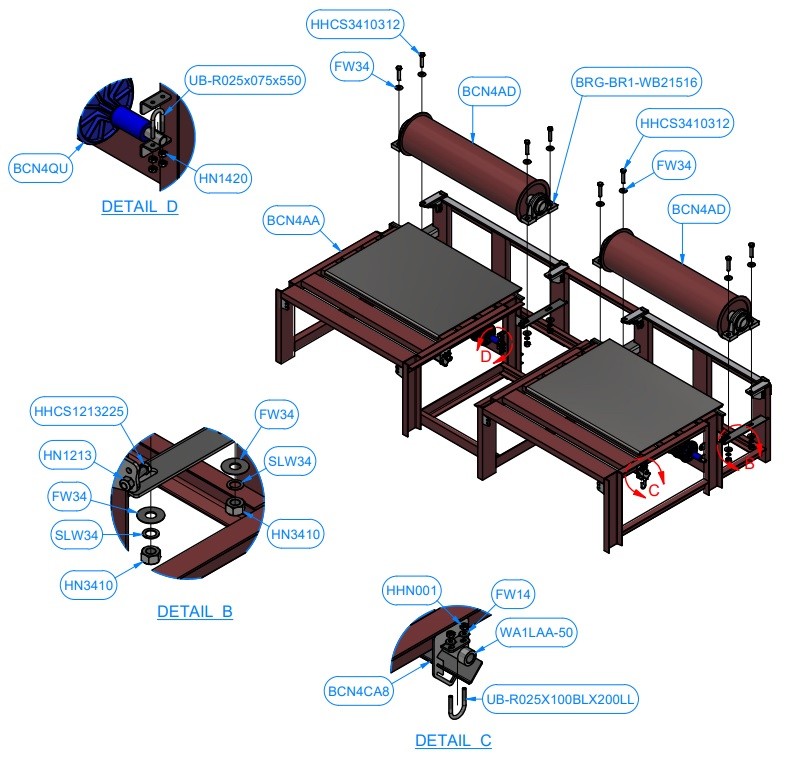

| Sku Images | Part# | Description | Diagram Part # | Quantity | |
|---|---|---|---|---|---|
| BCN3DA | REMOVABLE TRANSFER PLATE MOUNTING BRACKET [RIGHT] | 1 | 2 | ||
| BCN3DB | REMOVABLE TRANSFER PLATE MOUNTING BRACKET [LEFT] | 2 | 2 | ||
| BCN4AA | TAKE-UP FRAME_WELDMENT | 3 | 1 | ||
| BCN4AD | TAKE-UP DRUM | 4 | 2 | ||
| BCN4AE6-1120 | TRANSFER PLATE F/ TAKE-UP (PASSENGER SIDE) | 5 | 1 | ||
| BCN4AF6-1120 | TRANSFER PLATE F/ TAKE-UP (DRIVER SIDE) | 6 | 1 | ||
| BCN4CA8 | Drain Trough, 42" Dual Belt, 10 GA angle, SS | 7 | 2 | ||
| BCN4QU | SUPPORT ROLLER | 8 | 2 | ||
|
|
BRG-BR1-WB21516 | PILLOW BLOCK 2 15/16" | 9 | 4 | |
| FHSCS3816100F | 3/8"-16 UNC x 1" LG. FLAT HEAD CAP SCREW | 10 | 2 | ||
| FW14 | 1/4" FLAT WASHER | 11 | 8 | ||
| FW34 | 3/4" FLAT WASHER | 12 | 16 | ||
| FW38 | WASHERS 3/8” and | 13 | 6 | ||
| HHCS1213225 | Hex Head Cap Screw ½” – 13 x 2 ¼” LG. | 14 | 4 | ||
| HHCS3410312 | 3/4"-10 UNC x 3 1/2" LG. HEX SCREW | 15 | 8 | ||
| HHCS3816125 | Hex Head Cap Screw 3/8” – 16 x 1 ¼” LG | 16 | 2 | ||
| HHN001 | 1/4"-20 18-8ss Heavy Hex Nu | 17 | 8 | ||
| HHN007 | 3/8"-16 18-8ss Heavy Hex Nut | 18 | 4 | ||
| HN3410 | HEX NUT 3/4’’-10 | 20 | 8 | ||
|
|
SLW34 | 3/4" SPLIT LOCK WASHER | 21 | 8 | |
|
|
UB-R025x075x550 | Round U-Bolt D 1/4" x 3/4" x 2 1/4" L | 22 | 2 | |
| UB-R025X100BLX200LL | Round U Bolt D 1/4" x 1" x 2" L | 23 | 4 | ||
| WA1LAA-50 | 50" MANIFOLD ASSEMBLY | 24 | 2 | ||
| HN1420 | Hex nut ¼ ”-20 | 25 | 8 |
