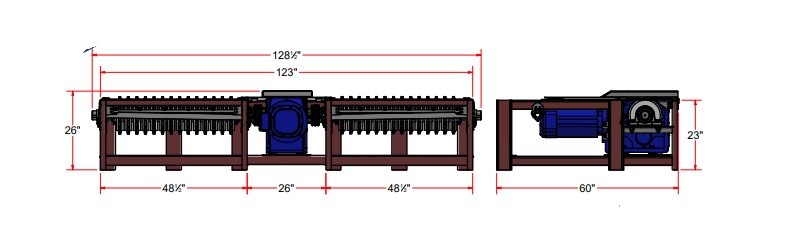

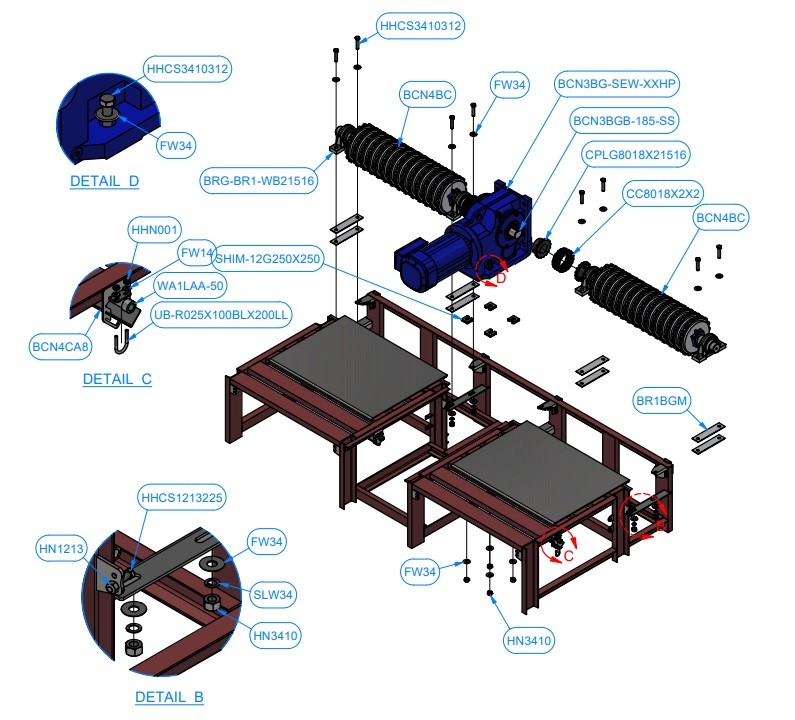

DRIVE SECTION

Part#	Description	Diagram Part #	Quantity
BCN3AP-0714	COVER DIAMOND PLATE	1	1
BCN3BGB-185-SS	Gear Drive Shaft 3 1/4" OD x 18 1/2" LG	2	1
BCN3BG-SEW-XXHP	SEW Eurodrive Gearmotor	3	1
BCN3DA	REMOVABLE TRANSFER PLATE MOUNTING BRACKET [RIGHT]	4	2
BCN3DB	REMOVABLE TRANSFER PLATE MOUNTING BRACKET [LEFT]	5	2
BCN4BA	DRIVE SECTION FRAME_WELDMENT	6	1
BCN4BC	DRIVE SHAFT ASSEMBLY	7	2
BCN4BE7-1120	TRANSFER PLATE F/ DRIVER SECTION [PASSENGER]	8	1
BCN4BF7-1120	TRANSFER PLATE F/ DRIVE SECTION [DRIVER]	9	1
BCN4CA8	Drain Trough, 42" Dual Belt, 10 GA angle, SS	10	2
BR1BGM	Shim Plate #3/16" x 2 1/2" x 11" LG	11	8
BRG-BR1-WB21516	PILLOW BLOCK 2 15/16"	12	4
CC8018X2X2	CC8018 CHAIN	13	2
CPLG8018X21516	SPROCKET FLANGE 2 15/16"	14	2
FHSCS3816100F	3/8"-16 UNC x 1" LG. FLAT HEAD CAP SCREW	15	2
FW14	1/4" FLAT WASHER	16	8
FW34	3/4" FLAT WASHER	17	24
FW38	WASHERS 3/8” and	18	6
HHCS1213225	Hex Head Cap Screw ½” – 13 x 2 ¼” LG.	19	4
HHCS3410312	3/4"-10 UNC x 3 1/2" LG. HEX SCREW	20	12
HHCS3816125	Hex Head Cap Screw 3/8” – 16 x 1 ¼” LG	21	2
HHN001	1/4"-20 18-8ss Heavy Hex Nu	22	8
HHN007	3/8"-16 18-8ss Heavy Hex Nut	23	4
HN3410	HEX NUT 3/4’’-10	25	12
SHIM-12G250X250	SS Sheet Metal #12Ga (0.1046 in) x 2 1/2" x 2 1/2"	26	20
SLW34	3/4" SPLIT LOCK WASHER	27	8
UB-R025X100BLX200LL	Round U Bolt D 1/4" x 1" x 2" L	28	4
WA1LAA-50	50" MANIFOLD ASSEMBLY	29	2
