BLOWER PRODUCER 10 HP, 15 HP, 20HP- 3600 RPM
BLOWER PRODUCER 10 HP, 15 HP, 20HP- 3600 RPM
Product Features:
- Screw Fastener Sets (for 10/15HP Producers) Blower Producer Cover’s Screw Fastener Set ¼” (Qty. 8)
- Hex Head Cap Screw ¼”-20 x ¾”LG…………… 8
- Flat Washer ¼”I.D……………………………… 8
- Hex Nut ¼”-20………….. ……………………… 8 Screw Fastener Sets (for 10/15HP Producers) Blower Nozzle’s Screw Fastener Set 1/4” (Qty. 10)
- Hex Head Cap Screw 1/4”-20 x 1”LG………… 10
- Split Lock Washer 1/4”-20 …………….......... 10
- Flat Washer 1/4’’ ………………………………. 10
- Hex Nut 1/4”-20…………………………...…… 10
SKU Details

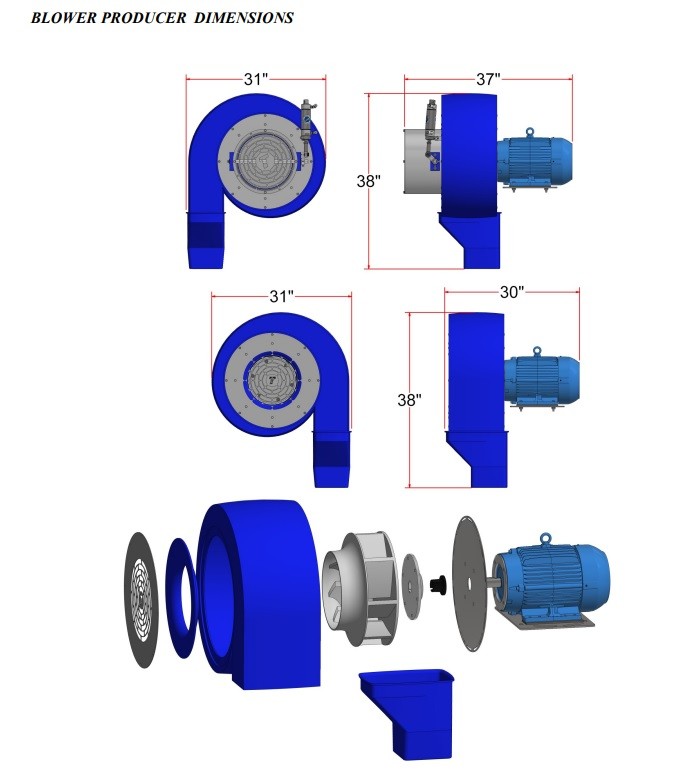

| Sku Images | Part# | Description | Diagram Part # | Quantity | |
|---|---|---|---|---|---|
| EM15-3600-215TC | ELECTRICAL MOTOR 15 HP 3600RPM (for Plastic and S. Steel Housing) | 1 | 1 | ||
|
|
EM10-3600-215TC | ELECTRICAL MOTOR 10 HP 3600RPM (for Plastic and S. Steel Housing) | 1.1 | 1 | |
| BL1-IMP | IMPELLER (Clockwise or Counterclockwise) (BL1-IMP-CCW or BL1-IMP-CW) | 2 | 1 | ||
| BL1-IMP-CP | IMPELLER CONNECTING PLATE | 2a | 1 | ||
|
|
STB-P1X138 | plit Taper bushing P1 1-3/8” | 3 | 1 | |
| BL1DK-180 | BLOWER SWIVEL MOUNT ( Optional ) | 3a | 1 | ||
| R-BL1DK | MOUNTING PLATE (RAINBOW STYLE) ASSEMBLY (Optional) | 4 | 1 | ||
| R-BL1DK2 | HALF COLLAR (Optional) | 4a | 2 | ||
|
|
UB-R050x300x1100 | 3’’Round U -Bolts 1/2” Size | - | 2 | |
| HN1216 | -w/ HEX NUT 1/2’’ | - | 4 | ||
| FW1216 | Flat Washer 1/2’’ | - | 4 | ||
| BL0716DHAR | 6a -BLOWER HOUSING PLASTIC, RED | 6a | 1 | ||
| BL0716DHAB | BLOWER HOUSING PLASTIC, BLUE | - | 1 | ||
| BL0716DHAK | BLOWER HOUSING PLASTIC, BLACK | - | 1 | ||
|
|
BL0115DCA | BLOWER INTAKE SCREEN | 7 | 1 | |
| BL0115DCR | BLOWER INTAKE SCREEN w/CONE, RED | 7.1 | - | ||
| BL0115DCB | BLOWER INTAKE SCREEN w/CONE, BLUE | 7.1 | - | ||
| BL0115DCK | BLOWER INTAKE SCREEN w/CONE , BLACK | 7.1 | - | ||
| BL0115DCCR | PLASTIC INTAKE BLOWER CONE, RED | 7.2 | - | ||
| BL0115DCCB | PLASTIC INTAKE BLOWER CONE, BLUE | 7.2 | - | ||
| BL0115DCCK | PLASTIC INTAKE BLOWER CONE, BLACK | 7.2 | - | ||
| BL1007DD | Blower BACK PLATE S. Steel, (only for Plastic Housing Blower) w/ | 8 | 1 | ||
| HHCS1420075 | Hex Head Cap Screws 1/4’’-20x3/4’’LG | 8 | 8 | ||
| FW34125 | Flat Washer 1/4’’ | 8 | 8 | ||
| BL0716D-NZPLR | NOZZLE for 15/10 HP Blower ( PLASTIC), RED | 9b | 1 | ||
| BL0716-NZPLB | NOZZLE for 15/10 HP Blower ( PLASTIC), BLUE | 9b | - | ||
| BL0716-NZPLK | NOZZLE for 15/10 HP Blower ( PLASTIC), BLACK | 9b | - |
