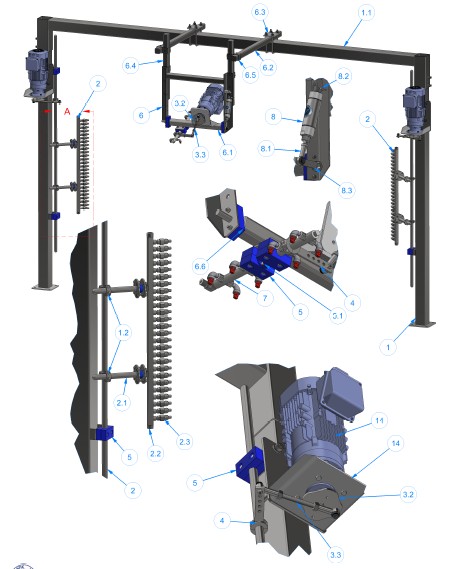

AUTOMATED PREPPING SYSTEM ROBOT, MODEL MG-RT1-2276-EL




SKU Details



Sku Images Part# Description Diagram Part # Quantity ADDTOCARTDETAILSANDPRICE
AA0A-2763 Leg 1 2
AA0B Top Bar 1.1 1

RT1AB1 Round Vertical Bar 1.1 2

RT1ABB Dual Split Collars 1.2 4

HHCS3816075 w/Hex Head Screw - 8

NLN3816 Nylon Lock Nuts - 8

RT1ABA Robot Manifold 2 2

RT1ABAA Adjustable Angle Holder 2.1 4

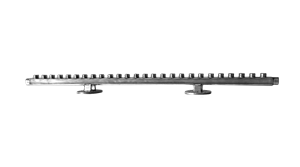

RT1ABAB Manifold 2.2 2

RIF-NOZ-BODY-SS Riffle Nozzle Body-SS 2.3 52
RIF-NOZ-BODY1-SS Riffle Nozzle - 52
SAE#070102-4-4 Custom Straight Fitting (Welded to Robot’s Manifold) - 52
TP00035 Washjets - 52
PO1DBB Drive Assembly 3 3

TB1ADBM HYDRAULIC MOTOR , displacement 5.0 [cu.in./rev.] 3.1 3
SB2ADBA Oscillating Disk 3.2 3
PO1CBB-10 OSCILLATING ARM ASSEMBLY 3.3 3

RT1-CAM3 Cam Arm 4 1/ Side

PO1C2 UHMW BLOCK MANIFOLD 5 2/ Side

RT1DDA UHMW SPLIT COLLAR 1’’ I.D. (1/PER MANIFOLD) 5.1 2/ Side

PO1DA-2276 Custom Oscillating Top Manifold 6 1
PO1DAA-2276 w/Bolt w/Longer thread 6.1 1
PO1DD-2763 Extension Arm 6.2 2
PO1DE-2763 Mounting Assembly 6.3 4
UB-SQ050x1500 U Bolts 1/2” to accept Rect. Tub. 2”x6” - 4

PO1DB-2319 Extension Arm—Drop Down 6.4 2

PO1DC-2319 Dual Sleeves to accept Sq. Tub. 2x2 6.5 2
PO2DM-2276 Manifold Assembly 7 1

AC2x3 CYLINDER 8 1

BJ1-2-20 BALL JOINT ROD END1/2-20 8.1 1

CP18-112 COTTER PIN 8.2 1
PO1CAM1 PIVOT CAM 8.3 1
