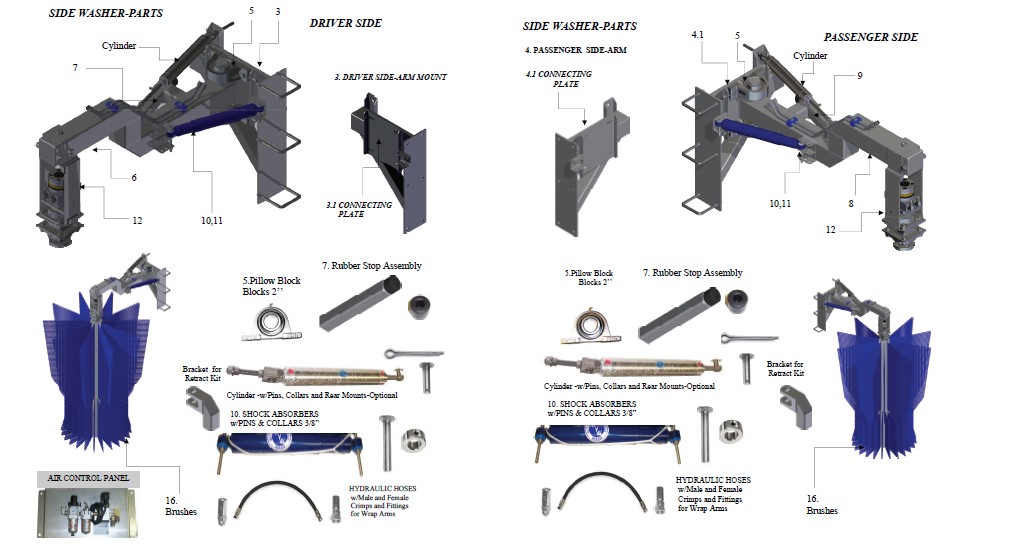

SIDE WASHER w/ MINI MITTER COMBO, Model SCM5
SKU Details
| Sku Images | Part# | Description | Diagram Part # | Quantity | ADDTOCARTDETAILSANDPRICE |
|---|---|---|---|---|---|
| MC1A | LEG | 1 | 4 | ||
| SCM5B | FRAME ASSEMBLY: | - | 1 | ||
| MC2BA | FRAME | 2 | 1 | ||
| SQHS1213150 | Square Head Screw ½” – 13 x 1½” LG. (for sleeves) | 16 | |||
|
|
SW2B | ARM MOUNT ASSEMBLY | - | 1 | |
|
|
SW2BA | Arm Mount | 3 | 1 | |
| SW2B1 | Connecting Plate | *3 | 1 | ||
| HHCS3816125 | Hex Head Cap Screw 3/8” – 16 x 1 ¼” LG | - | 10 | ||
|
|
SLW38 | SPLIT LOCK WASHER 3/8” | - | 10 | |
| HN3816 | HEX NUTS 3/8’’ | - | 10 | ||
| HHCS3816200F | Hex Head Cap Screw 3/8’’-16x2’’LG | - | 4 | ||
|
|
SW2C | ARM MOUNT ASSEMBLY – PASSENGER SIDE: | 1 | ||
|
|
SW2CA | Arm Mount | 4 | 1 | |
| HHCS3816200 | Hex Head Cap Screw 3/8”-16x2”lg.(fully threaded, for pillow block adjustment) | - | 4 | ||
| WA1WB | PILLOW BLOCK 2” | 5 | 4 | ||
| HHCS12132 | Hex Head Cap Screw 1/2“-13x2¼”lg. | - | 8 | ||
| FW12125 | Flat Washer ½”I.D. x 1 ¼” O.D. | - | 16 | ||
|
|
SLW12 | Split Lock Washer 1/2” | - | 8 | |
| SW1D | DRIVER SIDE ARM ASSEMBLY: | - | 1 | ||
| SW1DA | DRIVER side ARM 42”lg. | 6 | 1 | ||
| WA1DAD | Bracket For Retract Kit (welded) | - | 1 | ||
|
|
WA1DB | Rubber Stop Arm Assembly | 7 | 1 | |
| WA1DBA | Stop Arm | - | 1 | ||
|
|
WA1DBB | Rubber Bumper | - | 1 | |
| FW38087 | Flat Washer 3/8” I.D. x 7/8” O.D | - | 1 | ||
| SQHS3816075 | Square Head Screw 3/8”-16x ¾” lg. | - | 2 | ||
| SW1DC-0210 | Top Arm with: | - | 1 | ||
| SW1E | PASSENGER SIDE ARM ASSEMBLY: | 1 | |||
| SW1EA | PASSENGER side ARM 42”lg. | 8 | 1 | ||
|
|
WA1FA | SHOCK ABSORBER ASSEMBLY: | 10 | 2 | |
| WA1FAA | Shock Absorber | - | 2 | ||
|
|
WA1FA1 | UHMW Bushing 3/8” I.D. | - | 4 | |
| TB1AEA | PIN Ø 3/8” x 3” LG. | 11 | 4 | ||
|
|
WA1FC | COLLAR 3/8” | - | 4 | |
| SW2K | BRUSH SHAFT ASSEMBLY: | - | 2 | ||
| SW5KA | MOTOR MOUNT | 12 | 2 | ||
| HHCS3816075 | w/Hex Head Screw | - | 4 | ||
| NLN3816 | Nylon Lock Nuts | - | 4 | ||
|
|
WA1KM | Hydraulic Motor, displacement 11.9 [cu.in./rev.] | 13 | 4 | |
| SAE070202-8-8 | Fitting 90° elbow ½” NPTM x ½” JIC | - | 2 | ||
| WA1K1 | Torque Plate | - | 4 | ||
|
|
WA5KB | Brush Shaft Æ1 ½” x 10 ½” lg. | 14 | 2 | |
| WA1KCB | 4-bolt Bearing 1 ½” | 15 | 4 | ||
| HHCS1213175 | Hex Head Cap Screw ½” – 13 x 1 ¾” lg. | - | 16 | ||
| FW12100 | Flat Washer ½” I.D. x 1” O.D. | - | 16 | ||
| SW1M-5X72 | BRUSH ASSEMBLY | 16 | 2 | ||
| SW1L | WATER INSTALLATION: | - | 1set | ||
|
|
WA1LA | Side Water Manifold Assembly (on exit legs): | - | 2 | |
|
|
WA1LAA | Manifold | - | 2 | |
|
|
SAE140109P-8 | Hollow Hex Plug ½” NPTM | - | 2 | |
|
|
BRBPP050x050 | Barb 1/2”x ½” NPTM | - | 2 | |
| NZ1-4 | Nozzle ¼” NPTM | - | 10 | ||
| PPP3-4 | Pipe Clamp ¾”, for Water Manifold (w/screw fasteners ¼”-20) | - | 4 | ||
| SAE070115-8 | Tube support sleeves ½” JIC | - | |||
| SAE070110-8 | Nuts ½” JIC | - | |||
| WA1LB | Hydraulic hose assembly: | - | 8 | ||
| SAE100R7-08x34 | Hydraulic Hose 3/8”I.D.x34“lg., thermoplastic | - | 8 | ||
| FC5810-0806 | Crimp Fitting SAE 37° JIC swivel (female) | - | 4 | ||
| FC5807-0806 | Crimp Fitting SAE 37° JIC male flare | - | 12 | ||
|
|
DMP12 | UHMW DAMPING CLAMP 1/2“, | - | 4 | |
| MC2BB-1104 | Basket Drive Assembly: | - | 1 | ||
| SAE070101-8-8 | Fitting Straight 1/2” NPTMx 1/2”JIC | 18 | 2 | ||
| MC2BBA-P1 10106 | Cam Arm (w/welded weld-on hub) | 19 | 1 | ||
|
|
STB-P1X100 | Split Taper Bushing P1 1” | - | 1 | |
|
|
MC1C | BASKET SUPPORT ROD ASSEMBLY: | 4 | ||
|
|
MC1C1 | Basket support Rod ½” x 27” lg. | 20 | 4 | |
|
|
MC1C2 | Basket support Disk UHMW | 21 | 8 | |
|
|
MC1C3 | Basket support Halfball | 22 | 8 | |
| NLN 1213 | Nylon Lock Nut 1/2”-13 | 24 | 8 | ||
| MC2D | BASKET DRIVE ASSEMBLY: | - | 1 | ||
|
|
MC2DA | Basket Frame 7’ | 25 | 1 | |
|
|
MC1DB | Sleeve Assembly | - | 1 | |
|
|
MC1DB1 | Sleeve | 26 | 1 | |
|
|
MC1DB2 | UHMW Bushing 1” I.D. | 27 | 1 | |
|
|
MC2DC | Curtain Rod Assembly | 6 | ||
|
|
MC2DCA | Curtain Rod 7’4”lg. | 28 | 6 | |
| MC1DC2-3-4x2x1-8 | Plastic Spacer ¾ ” I.D.x2” O.D. x 3/8” width | 29 | 12 | ||
| PLHN3410 | Plastic Hex Nut ¾”-10 | 30 | 24 | ||
| MC1E | CURTAIN (CLOTH) | 31 | 42 | ||
| MC2L | HYDRAULIC & WATER INSTALLATION |
|
|||
| SAE010115-8 | Tube Support Sleeves ½” JIC | - | 8 |
