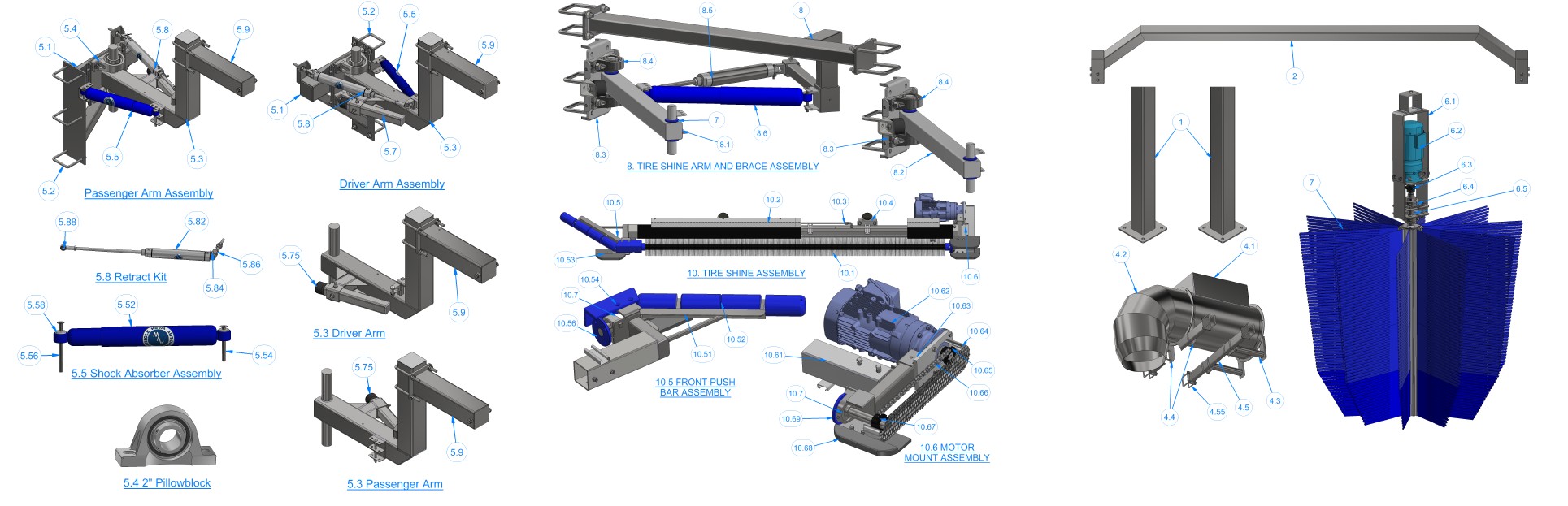

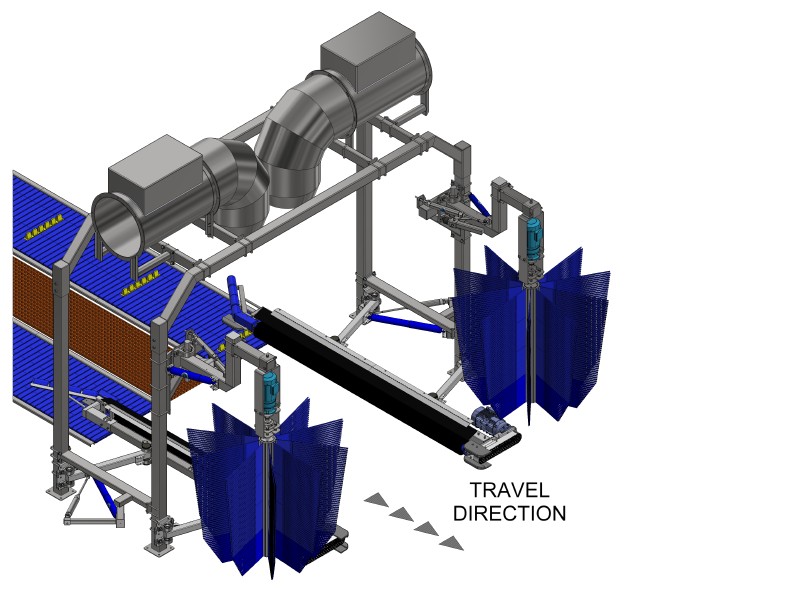

FINISHING MODULE, MODEL FM1-EL:Passenger's Side- Other Parts List
SKU Details
| Sku Images | Part# | Description | Diagram Part # | Quantity | ADDTOCARTDETAILSANDPRICE |
|---|---|---|---|---|---|
|
|
SW2C | ARM MOUNT ASSEMBLY – PASSENGER SIDE: | - | 1 | |
|
|
SW2CA | Arm Mount | 5.1 | 1 | |
| SW2B1 | Connecting Plate | - | 1 | ||
| SLW3/8 | SPLIT LOCK WASHER 3/8” | - | 10 | ||
| HHCS3816200 | Hex Head Cap Screw 3/8”-16x2”lg.(fully threaded, for pillow block adjustment) | - | 4 | ||
|
|
SW1D-5905 | DUAL STEP UP ARM ASSEMBLY | - | 1 | |
|
|
SW1EA-5905 | Side ARM 42”lg. | 5.3 | 1 | |
| WA1DAD | Bracket For Retract Kit (welded) | - | 1 | ||
|
|
WA1DB | Rubber Stop Arm Assembly | 5.75 | 1 | |
| WA1DBA | Stop Arm | - | 1 | ||
| HHCS3816125 | Hex Head Cap Screw 3/8” – 16 x 1 ¼” LG | - | 1 | ||
| FW38087 | Flat Washer 3/8” I.D. x 7/8” O.D | - | 1 | ||
| SQHS3816075 | Square Head Screw 3/8”-16x ¾” lg. | - | 2 | ||
| SW1DC-0209 | Top Arm with: | - | 1 | ||
| THRD1213500 | Threaded Rod ½’’-13x5’’lg | - | 1 | ||
| NLN1213 | Nylon Lock Nut ½”-13 | - | 2 | ||
| WA1WB | PILLOW BLOCK 2” | 5.4 | 2 | ||
|
|
WA1FA | SHOCK ABSORBER ASSEMBLY: | 5.5 | 2 | |
| WA1FB | PIN Æ3/8” x 6” LG. | 5.56 | 4 | ||
|
|
AC2X10 | AIR CYLINDER 2”x10” | 5.82 | 1 | |
|
|
WA2GA | FRONT MOUNT: | 5.86 | 1 | |
| WA2GA1 | Clevis | - | 1 | ||
| WA2GA2 | Threaded rod ½” -13x5”LG. | - | 1 | ||
| WA1GB | Pin 3/8”x1½”lg. | 5.84 | 1 | ||
| CP3-8 | Cotter Pin | - | 1 | ||
| WA1GD | Collar ½” | - | 1 | ||
| JN1220 | JAM NUT | - | 1 | ||
| TB3A-CUS999-EL | TIRE BRUSH SIDE | - | 1 | ||
| HBB-212SCH40-45-375 | HORIZONTAL BRACE BAR 45” 3/8” | 8 | 1 | ||
|
|
WA1DBB | Rubber Bumper | - | 1 | |
| HHCS3816200F | Hex Head Cap Screw 3/8’’-16x2’’LG | - | 8 | ||
| FW380875 | Flat Washer 3/8”I.D.x7/8”O.D. | - | 1 | ||
| TB3ABx32 | FRONT ARM | 8.1 | 1 | ||
| TB3ACX32 | REAR ARM | 8.2 | 1 | ||
| TB2AAC | PILLOW BLOCK MOUNTING PLATE | 8.3 | 2 | ||
| TB2AACA | Mounting Plate | - | 2 | ||
| RB2ABB | Square U-Bolt Fastener set 1/2’’ | - | 4 | ||
| UB-SQ050x17 | Square U-Bolt 1/2’’x17’’LG | - | 4 | ||
| BRG-RB1WB-TB1WC | PILLOW BLOCK BEARINGS 1-1/4’’ (Capped) | 8.4/10.4 | 4 | ||
| BRG-207CPE-NP | Cap | - | 4 | ||
| HHCS1213225 | Hex Head Cap Screw ½” – 13 x 2 ¼” LG. | - | 16 | ||
| FW12125 | Flat Washer ½”I.D. x 1 ¼” O.D. | - | 32 | ||
| HN1216 | -w/ HEX NUT 1/2’’ | - | 16 | ||
| TB2AF | TIRE WASHER RETRACT KIT | 8.5 | 1Set | ||
| TB2AGB-1104 | REAR MOUNT for Air Cylinder | 8.52 | 1 | ||
| AC2X | AIR CYLINDER (2’’ Bore, 8’’ Stroke) | - | 1 | ||
|
|
BJ1-2-20 | BALL JOINT ROD END1/2-20 | - | 1 | |
| WA1GC | Front pin ½” x 2” LG | - | 2 | ||
| CP1-2 | COTTER PIN | - | 2 | ||
| WA1P | RETRACT AIR CONTROL PANEL(OPTIONAL) | - | 1 | ||
| TB1AE | SHOCK ABSORBER ASSEMBLY: | 8.6 | 1 | ||
| WA1FAA | Shock Absorber | - | 1 | ||
| TB2AG-1104 | SHOCK ABSORBER’S MOUNTING | - | 1 | ||
|
|
WA1FA1 | UHMW Bushing 3/8” I.D. | - | 2 | |
| TB1AEA | PIN Ø 3/8” x 3” LG. | - | 2 | ||
|
|
WA1FC | COLLAR 3/8” | - | 2 | |
| TB3ADB-4B-CUS999-EL | BRUSH DRIVE ASSEMBLY (4-Bolt spindle Des.) | - | 1 | ||
| TB1ADE-4B-94-CUS999 | BRUSH SET | 10.1 | 1 | ||
| TB1ADEA-4B-104-CUS999 | BRUSH Ø8’’x104’’lg | - | 1 | ||
| TB1ADEB-4B | 4-BOLT SPINDLE | - | 2 | ||
| TB2MH-CUS999-1216 | COVER w/HINGES | 10.2 | 1 | ||
| TB2M-CUS999-1216 | APPLICATION MANIFOLD ASSEMBLY | 10.3 | |||
| UN075175-TB2M | HOLDER ( w/UNISTRUT AND CLAMP) | - | |||
| CHC050-SS | CLAMP 1/2” | - | 1 | ||
| TB1BDC | ROLLER GUIDE SET (PUSH BAR) | 10.51 | 1 | ||
| TB1BDC1-0209 | Roller I (Dia. 3’’x3’’LG) | 10.52 | 1 | ||
| VD3L-34x125 | Collars | - | 2 | ||
|
|
TB1BDC4-0209 | Shaft ( Dia. 3/4’’x14-1/2’’LG) | 10.53 | 1 | |
|
|
TB2BD2 | Bumper Front, 10”LG | 10.54 | 1 | |
| TB2BD2-0809-EL | ENTRANCE COVER (FRONT) | 10.56 | 1 | ||
|
|
TB1AD1-4B | DRIVE SHAFT Ø 1-1/4’’x6’’LG | 2 | ||
| SHCS3816100F | SOCKET HEAD CAP SCREW | 8 | |||
| TB2AD-4B-0810-EL | BRUSH -RACK SUPPORT FRAME ASSEMBLY | 10.61 | 1 | ||
| GRMTR1-5HP-75-230-460 | ELECTRIC MOTOR | 10.62 | 1 | ||
| TB2ADA-4B-0810-EL | BRUSH SUPPORT FRAME- (RACK) | - | 1 | ||
| TB2ADAA-4B-0810-EL | FRAME | - | 1 | ||
| TB2ADABA-4B-0810 | ADJUSTABLE PUSH BAR | - | 1 | ||
| TB2AD3A-2636 | MOTOR GUARD | 10.64 | 1 | ||
| TB2AD3-0809-EL | EXIT COVER | 10.68 | 1 | ||
| CBS3816125 | CARRIAGE BOLT 3/8’’-16x1-1/4’’LG | - | 4 | ||
| HN3816 | HEX NUTS 3/8’’ | - | 4 | ||
| TB1ADDA | TAPPED BASE BEARING 1-14’’ | - | 2 | ||
| HHCS71614075 | Hex Head Cap Screw 7/16’’- | - | 4 | ||
| SLW716 | Split Lock Washer 7/16’’ | - | 4 | ||
| APS1-2F | AIR PUMPING STATION w/2 FLOJET | - | 1 | ||
| APS1F | FLOOJET PUMP | - | 2 | ||
| SW8K-EL | BRUSH SHAFT ASSEMBLY | - | 2 |
|
|
| SW8KA-EL | Motor Mount | 6.1 | 2 | ||
| SQHS1213150 | Square Head Screw ½” – 13 x 1½” LG. (for sleeves) | - | 8 | ||
| NLN3816 | Nylon Lock Nuts | - | 16 | ||
|
|
GRMTR1-5HP-81-230-460 | Electric Motor, displacement 11.9{cu.in./rev.} | 6.2 | 2 | |
| SAE070202-8-8 | Fitting 90° elbow ½” NPTM x ½” JIC | - | 4 | ||
| WA1K1 | Torque Plate | - | 2 | ||
| HHCS3816075 | w/Hex Head Screw | - | - | ||
| WA1KCB | 4-bolt Bearing 1 ½” | 6.5 | - | ||
| WA5KB-9 | Brush Shaft Æ1½”x10-1/2”lg. | 6.4 | 4 | ||
| HHCS1213175 | Hex Head Cap Screw ½” – 13 x 1 ¾” lg. | 8 | |||
| FW12100 | Flat Washer ½” I.D. x 1” O.D. | 8 | |||
|
|
SLW12 | Split Lock Washer 1/2” | 16 | ||
| FM1D | CROSSBARS 2”x4”x7Ga x 43-3/8”LG. | ||||
| HT2 | HEATERS | 4.1 | 2 | ||
| J4005 | Nozzle, 90° Exit Elbow, for FInishing Module Heater, SS, Includes Fasteners to Door Jet Heater Flange | 4.2 | 2 | ||
| HT2A | MOUNTING BRACKETS (OUTER) | 4.4 | 2 | ||
| HT2B | MOUNTING BRACKETS (OUTER) | 4.4 | 2 | ||
| HT21 | MOUNTING BRACKETS (INNER) | 4.5 | 2 | ||
| HT22 | MOUNTING BRACKETS (INNER) | 4.5 | 2 | ||
| WA1M-5/10x72 | BRUSH ASSEMBLY (design: 5” core, 72”lg.) | 7 | 1 |
