TIRE WASHER w/DUAL TOP BRUSH, Model TRTB2-1655


TIRE WASHER w/DUAL TOP BRUSH, Model TRTB2-1655

SKU Details

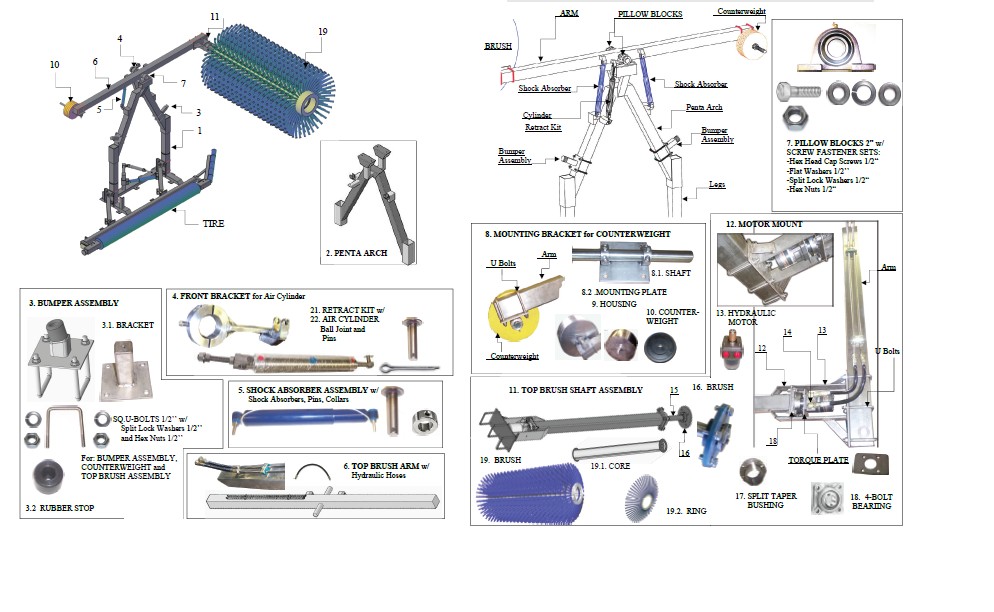

Sku Images Part# Description Diagram Part # Quantity ADDTOCARTDETAILSANDPRICE
TBTR20304 LEG 1 2
TR1DB0304 BUMPER ASSEMBLY 2 2

SQHS1213150 Square Head Screw ½” – 13 x 1½” LG. (for sleeves) 16

SQ-UB050x1500 SQ.U-BOLTS 1/2’’ w/ 4
SLW1/2 Split Lock Washer 16
HN1213 HEX NUT 1/2’’ 16
WA1DBB Rubber Bumper 3.2 4

WA1DBB-S UHMW SPACER 3.3 4

TR1ACF0304 FRONT BRACKET for AIR CYLINDER 4 2

WA1FA SHOCK ABSORBER ASSEMBLY: 5 4

WA1FAA Shock Absorber 5.1 4
WA1FA1 UHMW Bushing 3/8” I.D. 5.2 8

TB1AEA PIN Ø 3/8” x 3” LG. 5.3 8

WA1FC COLLAR 3/8” 5.4 8

TR1SAF0304 FRONT MOUNT for SHOCK ABSORBER 5.5 4

TR1C0304 TOP BRUSH ARM w/ 6 2

WA1WB PILLOW BLOCK 2” 7 2
HHCS1213225 Hex Head Cap Screw ½” – 13 x 2 ¼” LG. 4

FW12125 Flat Washer ½”I.D. x 1 ¼” O.D. 16

TR1D-1-1/2 MOUNTING BRACKET for COUNTERWEIGHT 8 2
TR1D1-1-1/2 SHAFT for Counterweight 11/2 ” 8.1 2
TR1FH HOUSING for COUNTERWEIGHT 9 2

TR1F0304 COUNTERWEIGHT 10 8
TR1G TOP BRUSH SHAFT ASSEMBLY: 11 2

TR1GA MOTOR MOUNT 12 2

HHCS3816075 w/Hex Head Screw 4

NLN3816 Nylon Lock Nuts 4

TB1ADBM HYDRAULIC MOTOR , displacement 5.0 [cu.in./rev.] 13 2
WA1K1 Torque Plate 2
TR1GB BRUSH SHAFT 1 ½” x 60” LG. 15 2

TR1GC BRUSH CONNECTING DISK (w/welded weld-on hub) 16 2

P1-1½ SPLIT TAPER BUSHING 1½” 17 2
WA1KCB 4-bolt Bearing 1 ½” 18 4
HHCS1213175 Hex Head Cap Screw ½” – 13 x 1 ¾” lg. 16

FW12100 Flat Washer ½” I.D. x 1” O.D. 16
TR1H FOAMED BRUSH (Foam Aid 60” dia. x 82”lg.) w/ 19 2 SETS

TR1HB CORE 19.1 2
TR1HA RING 19.2 140
AC2X10 AIR CYLINDER 2”x10” 21 2

BJ1/2-20 BALL JOINT ROD END1/2-20 2
WA1GB Pin 3/8”x1½”lg. 2

CP3/8 Cotter Pin 2
WA1GC Front pin ½” x 2” LG 2

WA1GD Collar ½” 12
