OCTALINE Z-WRAP CONTOUR COMBO-EL, Model OT-WACB0405: DRIVER'S SIDE


OCTALINE Z-WRAP CONTOUR COMBO-EL, Model OT-WACB0405: DRIVER'S SIDE

SKU Details

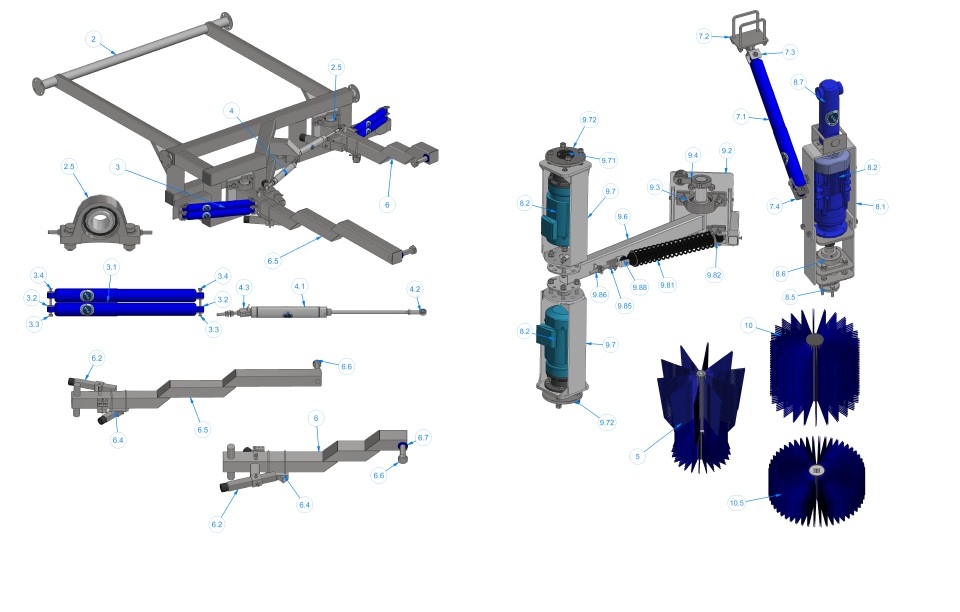

Sku Images Part# Description Diagram Part # Quantity ADDTOCARTDETAILSANDPRICE
WA1FA SHOCK ABSORBER ASSEMBLY: 3 2

WA1FAA Shock Absorber 3.1 2
WA1FA1 UHMW Bushing 3/8” I.D. 3.2 4

AC2X10 AIR CYLINDER 2”x10” 4.1 4

BJ1-2-20 BALL JOINT ROD END1/2-20 4.2 4

WA2GA FRONT MOUNT: 4.3 4

CP3-8 Cotter Pin 4.5 4

WA1GC Front pin ½” x 2” LG - 4

WA1GD Collar ½” - 4

JN1220 JAM NUT - 4

WA1M-5/10x72 BRUSH ASSEMBLY (design: 5” core, 72”lg.) 5 1
WA1D DRIVER SIDE ARM ASSEMBLY: 6/6.5 1

WA1DA Driver Side Arm 48”lg. 6.1 1

WA1DB Rubber Stop Arm Assembly 6.2 1

WA1DBA Stop Arm 6.3 1

WA1DBB Rubber Bumper 6.4 2

HHCS3816125 Hex Head Cap Screw 3/8” – 16 x 1 ¼” LG - 4

FW380875 Flat Washer 3/8”I.D.x7/8”O.D. - 4

WA3DB-2639 ADJUSTABLE LOWER RUBBER STOP ARM (OPTION) - 1

SQHS3816075 Square Head Screw 3/8”-16x ¾” lg. - 4

WA150SCC 1 1/2" Split Collar 6.6 1

WA1H2 UHMW Bushing 1 ½” I.D. 6.7 1
WA2F-0318 Wrap Stabilizer Kit, with Fasteners and U-bolt Rear Mount to Arm; with 4" x 5-3/4" Heavy Duty Plate and Two U-bolts. (1 set - 2 pcs.) 7 2

WA2F-A SHOCK ABSORBER ASSEMBLY 7.1 2
WA2FC Rear Stabilizer Mount 7.2 2

WA2FB-0318 FRONT STABILIZER MOUNT ASSEMBLY 7.3 2

WA2DAE-0318 STABILIZER KIT BRACKET 7.4 2

WA8K-EL WRAP AROUND SHAFT ASSEMBLY: - 2
WA8KA-EL Motor Mount 8.1 2
NLN3816 Nylon Lock Nuts - 4

GRMTR1-5HP-81-230-460 Electric Motor, displacement 11.9{cu.in./rev.} 8.2 2

WA1K1 Torque Plate 8.3 4
HHCS3816075 w/Hex Head Screw 8.4 8

WA5KB Brush Shaft Æ1 ½” x 10 ½” lg. 8.5 2

WA1KCB 4-bolt Bearing 1 ½” 8.6 4
HHCS1213175 Hex Head Cap Screw ½” – 13 x 1 ¾” lg. - 16

FW12100 Flat Washer ½” I.D. x 1” O.D. - 16
SLW12 Split Lock Washer 1/2” - 16

WA2H-0210 UNIVERSAL COUPLING ASSEMBLY 8.7 2

CB0405AB ARM MOUNT ASSEMBLY 9 1
RB2ABB Square U-Bolt Fastener set 1/2’’ - 2

RB2ABB1 Square U-Bolt 1/2’’x17’’lg 9.1 2
CB0405ABA ARM MOUNT 9.2 1

WA1WB PILLOW BLOCK 2” 9.3 2
HHCS1213225 Hex Head Cap Screw ½” – 13 x 2 ¼” LG. - 2

CB0405ACA 2-Piece BUMPER MOUNT 9.4 1
HHCS3816150 Hex Head Cap Screw 3/8’’-16x1-1/2’’lg - 2

SLW 3/8 Split Lock Washer 3/8’’ - 2
HN3816 HEX NUTS 3/8’’ - 1

CB0405DAx32 ARM 9.6 1

RB1AE BRUSH DRIVE LOWER ASSEMBLY - 1

RB2AEA-EL MOTOR MOUNT ( 20’’ LG ) 9.7 4

HHCS1213300 Hex Head Cap Screw ½” -13x3”lg. -

FW12125 Flat Washer ½”I.D. x 1 ¼” O.D. - 4

SSS1420050C SPLIT TAPER BUSHING 1” 9.71 4

RB2AEB-P1-1-0106 (set w/two socket set screws ¼ ”-20x ½ ”lg., carbon steel) - 1
MC2BBA3-P1-0106 BRUSH CONNECTING DISK 9.72 1
HHCS1213125 Hex Head Screw 3/8’’-16x2’’Lg (Fully threaded, for pillow block adjusted) - 4

SLW1/2 Split Lock Washer - 4
RB1AF SHOCK ABSORBER ASSEMBLY 9.80 1

RB1AFA SPRING SHOCK ABSORBER 9.81 1
RB1AFA1 UHMW bushing 3/8”I.D - 2

RB2AFB Spring adjuster assembly (aluminum 2-piece collar): 9.82 1

RB2AFB1 Aluminum adjuster (2-piece collar) - 1

HHCS1420125 Hex head cap screw ¼” -20 x 1¼”LG. - 2

HN1420 Hex nut ¼ ”-20 - 2

RB1AFC Plastic spacer - 1

TB1AEA PIN Ø 3/8” x 3” LG. 9.83 2

RB1AG FRONT MOUNT: 9.85 1

WA2GA1 Clevis - 1

WA2GA2 Threaded rod ½” -13x5”LG. 9.86 1

HN1213 HEX NUT 1/2’’ - 3
WA1GB Pin 3/8”x1½”lg. - 1

WA1FC COLLAR 3/8” 9.87 1

RB1AGA Shock mount 9.88 1

CB0405AM-51 UPPER BRUSH 51” ASSEMBLY 10 1
CB1AMA-51 Brush Cloth - 1
CB1AMC-51 Aluminum Extrusion - 2
CB1AMB-51 Two-piece Collar 1½”x12 core - 2
CB0405AM-21 LOWER BRUSH 21” ASSEMBLY: 10.5 1
CB1AMA-21 Brush cloth - 1
CB1AMC-21 Aluminum Extrusion - 2
CB1AMB-21 Two-piece collar 1½”x12 core - 2
