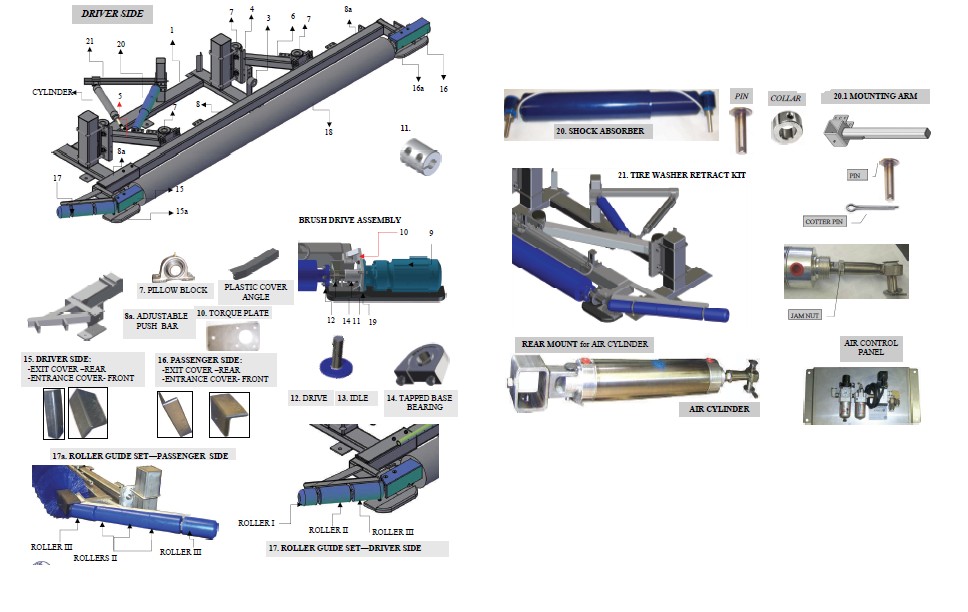

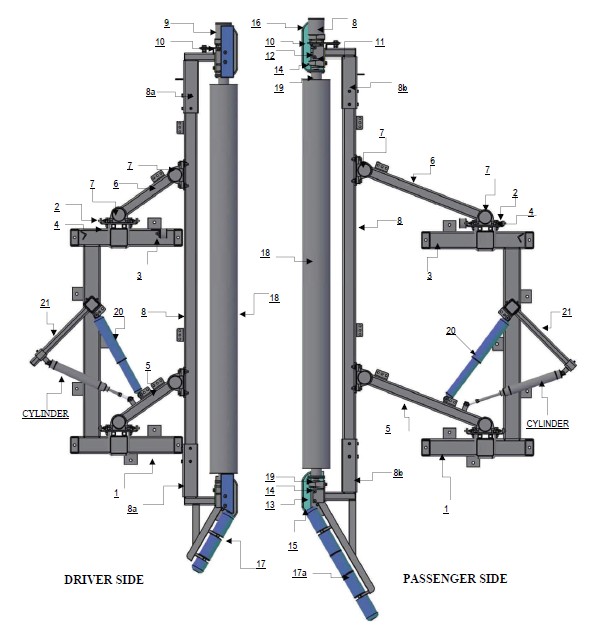

STEPPED TIRE WASHER, Model TB2-1655-EL: PASSENGER'S SIDE
SKU Details
| Sku Images | Part# | Description | Diagram Part # | Quantity | ADDTOCARTDETAILSANDPRICE |
|---|---|---|---|---|---|
| TB2B-EL | TIRE BRUSH SIDE | - | 1 | ||
| TB2BA | FRAME ASSEMBLY | - | 1 | ||
| TB2BAA | FRAME | 1 | 1 | ||
| HHCS3816200F | Hex Head Cap Screw 3/8’’-16x2’’LG | 2 | 8 | ||
|
|
WA1DBB | Rubber Bumper | 3 | 1 | |
| FW380875 | Flat Washer 3/8”I.D.x7/8”O.D. | - | 1 | ||
| HN3816 | HEX NUTS 3/8’’ | - | 1 | ||
| TB2AAC | PILLOW BLOCK MOUNTING PLATE | 4 | 2 | ||
| TB2AACA | Mounting Plate | - | 2 | ||
| RB2ABB | Square U-Bolt Fastener set 1/2’’ | - | 4 | ||
|
|
UB-SQ050x1700 | Square U-Bolt 1/2’’x17’’lg | - | 4 | |
|
|
SLW12 | Split Lock Washer 1/2” | - | 8 | |
|
|
HN1213 | HEX NUT 1/2’’ | - | 8 | |
| TB2ABX32 | FRONT ARM (ENTRANCE END) | 5 | 1 | ||
| TB2ACX32 | REAR ARM ( EXIT END) | 6 | 1 | ||
| BRG-RB1WB-TB1WC | PILLOW BLOCK BEARINGS 1-1/4’’ (Capped) | 7 | 4 | ||
| BRG-207CPE-NP | Cap | - | 4 | ||
| HHCS1213225 | Hex Head Cap Screw ½” – 13 x 2 ¼” LG. | - | 16 | ||
| FW12125 | Flat Washer ½”I.D. x 1 ¼” O.D. | - | 32 | ||
| HN1216 | -w/ HEX NUT 1/2’’ | - | 16 | ||
| TB2BD-4B-0810-EL | BRUSH -RACK SUPPORT FRAME ASSEMBLY | - | 1 | ||
| TB2BDA-4B-0810-EL | BRUSH SUPPORT FRAME- (RACK) | 8 | 1 | ||
| TB2BDAA-4B-0810-EL | FRAME | - | 1 | ||
| TB2BDC-0810 | PUSH BAR ASSEMBLY | 8.1 | 1 | ||
| TB2ADABA-4B-0810 | ADJUSTABLE PUSH BAR | 8a | 1 | ||
| TB2ADB-4B-CUS999-EL | BRUSH DRIVE ASSEMBLY (4-Bolt spindle Des) | - | 2 | ||
| GRMTR1-5HP-21-1-Ratio | ELECTRIC MOTOR Displac. 11.9(cu.in/rev.) | 9 | 1 | ||
| SAE070102-8-8 | 1/2’’JIC -1/2’’NPT, MALE | - | 2 | ||
| TB2ADB1-4B-EL | TORQUE PLATE | 10 | 1 | ||
| TB1ADBC-EL | ALUMINIUM COUPLING 1 -1/8’’ x 1-1/4’’ | 11 | 1 | ||
|
|
TB1AD1-4B | DRIVE SHAFT Ø 1-1/4’’x6’’LG | 12 | 1 | |
| SHCS3816100F | SOCKET HEAD CAP SCREW | - | 4 | ||
| TB1ADDA | TAPPED BASE BEARING 1-14’’ | 14 | 2 | ||
| HHCS71614075 | Hex Head Cap Screw 7/16’’- | - | 4 | ||
| SLW716 | Split Lock Washer 7/16’’ | - | 4 | ||
|
|
TB2BD2-0809 | ENTRANCE COVER (FRONT) | 15 | 1 | |
|
|
TB2BD2 | Bumper Front, 10”LG | - | 1 | |
| TB2BD3-0809-EL | EXIT COVER | 16 | 1 | ||
| TB2BD3-EL | Exit Bumper , 12” LG | - | 1 | ||
| CBS3816125 | CARRIAGE BOLT 3/8’’-16x1-1/4’’LG | - | 4 | ||
| HN3816716 | HEX NUT3/8’’ | - | 4 | ||
| TB1BDC | ROLLER GUIDE SET (PUSH BAR) | 17 | 1 | ||
| TB1ADC2-0209 | Roller II (Dia. 3’’x5-5/8’’’LG) | - | 3 | ||
| TB1ADC3-0209 | Roller III (Dia. 3’’x5-5/8’’’LG) | - | 2 | ||
| TB1ADCA | Collars 1” | - | 2 | ||
|
|
TB1BDC4-0209 | Shaft ( Dia. 3/4’’x14-1/2’’LG) | - | 1 | |
| TB1ADE-4B-94-CUS999 | BRUSH SET | - | 1 | ||
| TB1ADEA-4B-100-CUS999 | BRUSH Ø8’’x100’’LG | 18 | 1 | ||
| TB1ADEB-4B | 4-BOLT SPINDLE | 19 | 2 | ||
| TB1AE | SHOCK ABSORBER ASSEMBLY: | - | 1 | ||
| WA1FAA | Shock Absorber | 20 | 1 | ||
| TB2AG-1104 | SHOCK ABSORBER’S MOUNTING | - | 1 | ||
|
|
WA1FA1 | UHMW Bushing 3/8” I.D. | - | 2 | |
| TB1AEA | PIN Ø 3/8” x 3” LG. | - | 2 | ||
|
|
WA1FC | COLLAR 3/8” | - | 2 | |
|
|
TB2AGA-1104 | MOUNTING ARM | 20.1 |
