WRAP AROUND KAADY CONTOUR COMBO Model -WACB2


WRAP AROUND KAADY CONTOUR COMBO Model -WACB2

SKU Details

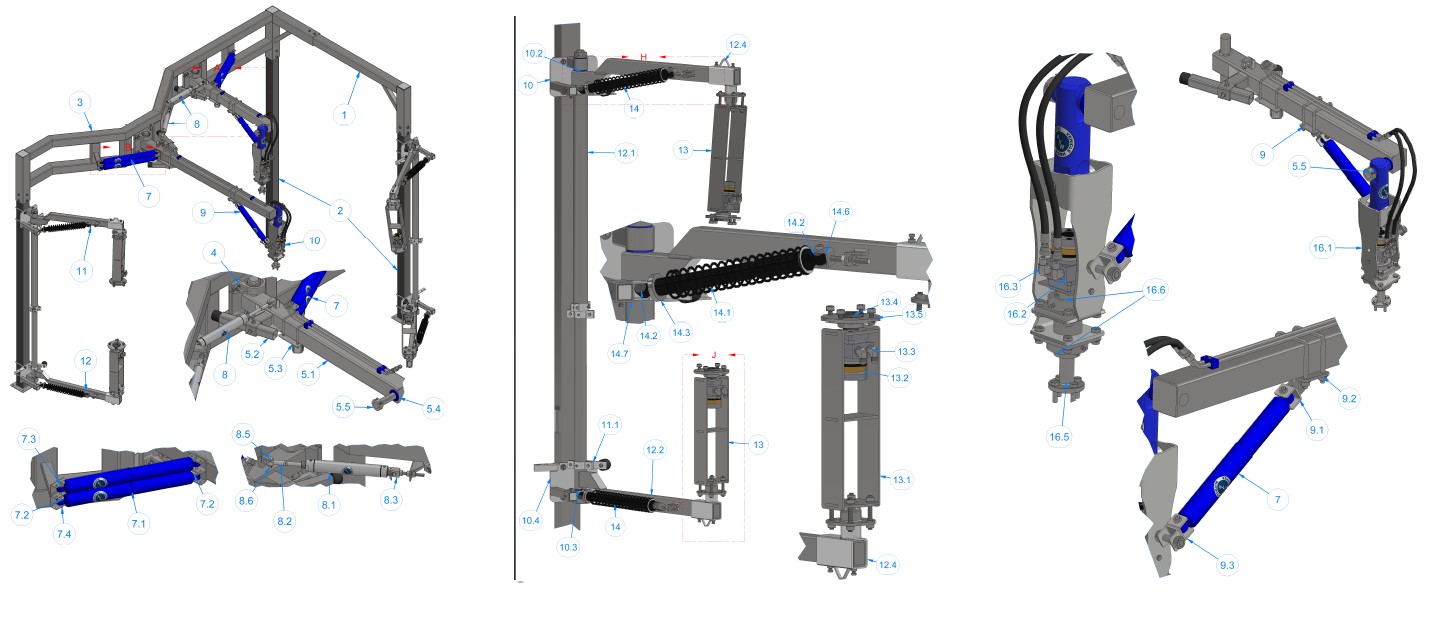

Sku Images Part# Description Diagram Part # Quantity ADDTOCARTDETAILSANDPRICE
WA1CB1AA Extension Bar, for Wrap-Contour Third Leg 1 1

WC3A Leg, w/Manifold, for Wrap Mitter Combo Leg, SS 2 3

WA1C-1566 Z-CROSSBAR 3 1

SQHS1213150 Square Head Screw ½” – 13 x 1½” LG. (for sleeves) - 8

HHCS3816200F Hex Head Cap Screw 3/8’’-16x2’’LG - 8

WA1WB PILLOW BLOCK 2” 4 4
HHCS1213225 Hex Head Cap Screw ½” – 13 x 2 ¼” LG. - 8

FW12125 Flat Washer ½”I.D. x 1 ¼” O.D. - 16

SLW1/2 Split Lock Washer - 8
HN1213 HEX NUT 1/2’’ - 8
WA1FA SHOCK ABSORBER ASSEMBLY: 7 2

WA1FAA Shock Absorber 7.1 2
WA1FA1 UHMW Bushing 3/8” I.D. 7.2 4

WA1FB PIN Æ3/8” x 6” LG. 7.3 4

WA1FC COLLAR 3/8” 7.4 4

WA1GA RETRACT KIT: 8 2

AC2X10 AIR CYLINDER 2”x10” 8.1 2

BJI-2-20 Ball Joint Rod End 8.2 2
WA2GA FRONT MOUNT: 8.3 2

WA2GA1 Clevis - 2

WA2GA2 Threaded rod ½” -13x5”LG. - 2

HN213 -Hex Nut 1/2”-13 - 6
WA1GB Pin 3/8”x1½”lg. 8.4 2

CP3-8 Cotter Pin - 2

WA1GC Front pin ½” x 2” LG 8.5 2

WA1GD Collar ½” 8.6 2

JN1220 JAM NUT - 2

WA2F-0318 Wrap Stabilizer Kit, with Fasteners and U-bolt Rear Mount to Arm; with 4" x 5-3/4" Heavy Duty Plate and Two U-bolts. (1 set - 2 pcs.) 9 2

WA2FA Shock Absorber Assembly 7 2

WA2FC Rear Stabilizer Mount 9.1 2

WA2DAE Stabilizer Bracket Kit 9.2 2

WA2FB-0416 Front Stabilizer Mount 9.3 2
CB1AC BUMPER ASSEMBLY 11 2

CB1ACA 2-Piece BUMPER MOUNT (w/Plate welded) 11.1 2

HHCS3816150 Hex Head Cap Screw 3/8’’-16x1-1/2’’lg - 2

SLW 3/8 Split Lock Washer 3/8’’ - 2
HN3816 HEX NUTS 3/8’’ - 2

WA1DBB Rubber Bumper 11.2 2

HHCS3816125 Hex Head Cap Screw 3/8” – 16 x 1 ¼” LG - 2

FW38087 Flat Washer 3/8” I.D. x 7/8” O.D - 2
RB1AE BRUSH DRIVE LOWER ASSEMBLY 13 2

RB1AEA MOTOR MOUNT ( 8’’ LG ) 13.1 2

HHCS1213300 Hex Head Cap Screw ½” -13x3”lg. - 8

SLW12 Split Lock Washer 1/2” - 8

TB1ADBM HYDRAULIC MOTOR , displacement 5.0 [cu.in./rev.] 13.2 2
SAE070202-8-8 Fitting 90° elbow ½” NPTM x ½” JIC 13.3 4
HHCS3816075 w/Hex Head Screw - 8

STB-P1X100 Split Taper Bushing P1 1” 13.4 2

SSS1420050C SPLIT TAPER BUSHING 1” - 2

RB2AEB-P1-1-0106 (set w/two socket set screws ¼ ”-20x ½ ”lg., carbon steel) 13.5 2

HHCS1213125 Hex Head Screw 3/8’’-16x2’’Lg (Fully threaded, for pillow block adjusted) - 8

RB1AF SHOCK ABSORBER ASSEMBLY 14 2

RB1AFA SPRING SHOCK ABSORBER 14.1 2
RB1AFA1 UHMW bushing 3/8”I.D 14.2 2

RB2AFB Spring adjuster assembly (aluminum 2-piece collar): 14.3 2

RB2AFB1 Aluminum adjuster (2-piece collar) - 2

HHCS1420125 Hex head cap screw ¼” -20 x 1¼”LG. - 4

HN1420 Hex nut ¼ ”-20 - 4

RB1AFC Plastic spacer - 2

TB1AEA PIN Ø 3/8” x 3” LG. 14.4 4

RB1AG FRONT MOUNT: 14.5 4

RB1AGA Shock mount 14.7 2

RB1ABAM Moveable Rear Shock Mount 14.8 2

CB1AM-21/CB1AM-51 LOWER BRUSH 21” / UPPER 51” ASSEMBLY: 15 2
CB1AMA-21/CB1AMA-51 Brush Cloth 15.1 2
CB1AMC-21/CB1AMC-51 Aluminum Extrusion 15.2 2
CB1AMB-21/CB1AMB-51 Two-piece Collar 1½”x12 core 15.3 2
WA5K WRAP AROUND SHAFT ASSEMBLY 16 2

WA5KA Motor Mount 16.1 2

NLN3816 Nylon Lock Nuts - 4

TB0195-WA1KM Hydraulic Motor, displacement 11.9 [cu.in./rev.], Parker TB0195FP100AAAB 16.2 2

WA1K1 Torque Plate 16.4 2
WA5KB Brush Shaft Æ1 ½” x 10 ½” lg. 16.4 2

WA1KCB 4-bolt Bearing 1 ½” 16.5 2
HHCS1213175 Hex Head Cap Screw ½” – 13 x 1 ¾” lg. - 16

FW12100 Flat Washer ½” I.D. x 1” O.D. - 16
WA1M-5/10x72 BRUSH ASSEMBLY (design: 5” core, 72”lg.) 17 2
WA1L HYDRAULIC & WATER INSTALLATION - -
WA1LA Side Water Manifold Assembly (on exit legs): - 2

WA1LAA Manifold - 2

SAE140109P-8 Hollow Hex Plug ½” NPTM - 2

BRB1/2x1/2 Barb ½” x ½” NPTM - 2
NZ1/4 Nozzle ¼” NPTM - 10
PPP3/4 Pipe Clamp ¾”, for water hose and side water manifolds (w/screw fasteners ¼”) - 10
SAE070115-8 Tube support sleeves ½” JIC -
SAE070110-8 Nuts ½” JIC -
WA1LB Hydraulic hose assembly: 8
SAE100R7-06x34 Hydraulic Hose 3/8” I.D. x 34” lg., thermoplastic - 8
FC5810-0806 Crimp Fitting SAE 37° JIC swivel (female) - 4

(10655-8-6) Catching Fluidpower-“Parker - (4)
FC5807-0806 Crimp Fitting SAE 37° JIC male flare - 12

(10355-8-6) Catching Fluidpower-“Par (12)
DMP1/2 Damping Clamp ½”, for hydraulic tubes (w/screw fasteners ¼”) 8
