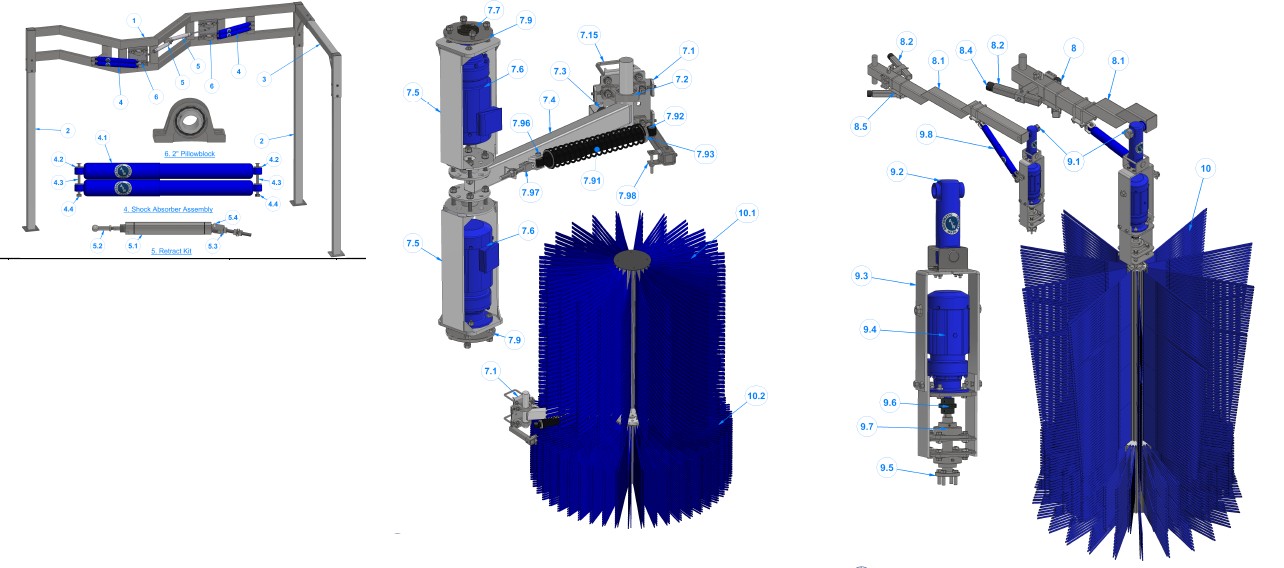

Z-WRAP CONTOUR COMBO Model WACB0405-EL: PASSENGER SIDE
SKU Details
| Sku Images | Part# | Description | Diagram Part # | Quantity | ADDTOCARTDETAILSANDPRICE |
|---|---|---|---|---|---|
| CB0405E | ARM ASSEMBLY | 7 | 1 | ||
| CB0405BB | ARM MOUNT ASSEMBLY | 7.1 | 1 | ||
| RB2ABB | Square U-Bolt Fastener set 1/2’’ | 7.15 | 2 | ||
| RB2ABB1 | Square U-Bolt 1/2’’x17’’lg | 2 | |||
|
|
SLW12 | Split Lock Washer 1/2” | 2 | ||
|
|
HN1213 | HEX NUT 1/2’’ | 2 | ||
| WA1WB | PILLOW BLOCK 2” | 7.2 | 2 | ||
| HHCS1213225 | Hex Head Cap Screw ½” – 13 x 2 ¼” LG. | 2 | |||
| FW12125 | Flat Washer ½”I.D. x 1 ¼” O.D. | 2 | |||
| CB0405AC | BUMPER ASSEMBLY | 7.3 | 1 | ||
| HHCS3816150 | Hex Head Cap Screw 3/8’’-16x1-1/2’’lg | - | 2- | ||
|
|
SLW38 | SPLIT LOCK WASHER 3/8” | - | 2 | |
| HN3816 | HEX NUTS 3/8’’ | - | 1 | ||
|
|
WA1DBB | Rubber Bumper | - | 1 | |
| HHCS3816125 | Hex Head Cap Screw 3/8” – 16 x 1 ¼” LG | - | 1 | ||
| FW380875 | Flat Washer 3/8”I.D.x7/8”O.D. | - | 1 | ||
| CB0405EAx32 | ARM (Weldment assembly only) | 7.4 | 1 | ||
| RB2AE-EL | BRUSH DRIVE UPPER/LOWER ASSEMBLY | - | 1 | ||
| RB1AEA-EL | MOTOR MOUNT ( 20’’ LG) | - | 1 | ||
| HHCS1213300 | Hex Head Cap Screw ½” -13x3”lg. | - | 4 | ||
|
|
GRMTR1-5HP-81-230-460 | Electric Motor, displacement 11.9{cu.in./rev.} | 7.6 | 1 | |
| HHCS3816075 | w/Hex Head Screw | - | 2 | ||
|
|
STB-P1X100 | Split Taper Bushing P1 1” | 7.7 | ||
| SSS1420050C | SPLIT TAPER BUSHING 1” | 1 | |||
|
|
RB2AEB-P1-1-0106 | (set w/two socket set screws ¼ ”-20x ½ ”lg., carbon steel) | 7.8 | 2 | |
| MC2BBA3-P1-0106 | BRUSH CONNECTING DISK | - | 1 | ||
| THRD1213400 | (connection of the brush with disk): | 4 | |||
|
|
RB1AF | SHOCK ABSORBER ASSEMBLY | 7.9 | 1 | |
| RB1AFA | SPRING SHOCK ABSORBER | 7.91 | 1 | ||
| RB1AFA1 | UHMW bushing 3/8”I.D | 7.92 | 2 | ||
| RB2AFB | Spring adjuster assembly (aluminum 2-piece collar): | 7.93 | 1 | ||
| RB2AFB1 | Aluminum adjuster (2-piece collar) | 1 | |||
| HHCS1420125 | Hex head cap screw ¼” -20 x 1¼”LG. | 2 | |||
| HN1420 | Hex nut ¼ ”-20 | 2 | |||
| RB1AFC | Plastic spacer | 7.94 | 1 | ||
| TB1AEA | PIN Ø 3/8” x 3” LG. | 7.95 | 2 | ||
|
|
WA1FC | COLLAR 3/8” | 7.96 | 2 | |
| RB1AG | FRONT MOUNT: | 7.97 | 1 | ||
| WA2GA1 | Clevis | - | 1 | ||
| WA2GA2 | Threaded rod ½” -13x5”LG. | - | 1 | ||
| WA1GB | Pin 3/8”x1½”lg. | - | 1 | ||
|
|
RB1AGA | Shock mount | 7.98 | 1 | |
| WA1E2000 | WRAP ARM ASSEMBLY | 8 | 1 | ||
| WA1EA-2000 | Passenger Side Arm 76”lg. | 8.1 | 1 | ||
|
|
WA1DB | Rubber Stop Arm Assembly | 8.2 | 2 | |
| WA1DBA | Stop Arm | 8.3 | 2 | ||
| WA3DB-2639 | ADJUSTABLE LOWER RUBBER STOP ARM (OPTION) | 8.5 | 1 | ||
| SQHS3816075 | Square Head Screw 3/8”-16x ¾” lg. | - | 4 |
