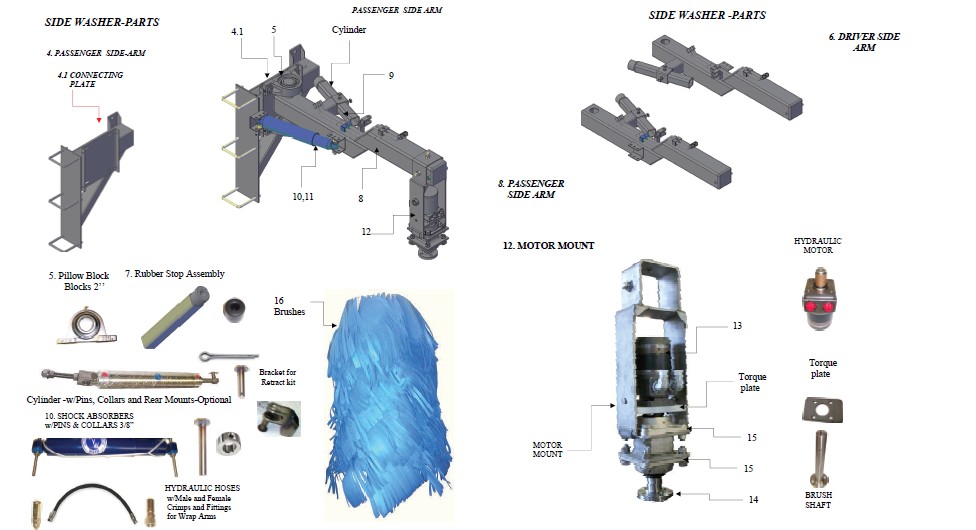

Z-WRAP SIDE WASHER COMBO, Model WSW4: SIDE WASHER-PARTS
SKU Details
| Sku Images | Part# | Description | Diagram Part # | Quantity | ADDTOCARTDETAILSANDPRICE |
|---|---|---|---|---|---|
| SC5BAA | CROSSBAR 12FT –Optional | - | 1 | ||
|
|
SW2B | ARM MOUNT ASSEMBLY | - | 1 | |
|
|
SW2BA | Arm Mount | 3 | 1 | |
| SW2B1 | Connecting Plate | *3.1 | 1 | ||
| HHCS3816125 | Hex Head Cap Screw 3/8” – 16 x 1 ¼” LG | - | 10 | ||
| SLW3/8 | SPLIT LOCK WASHER 3/8” | - | 10 | ||
| HN3816 | HEX NUTS 3/8’’ | - | 10 | ||
| SQHS1213150 | Square Head Screw ½” – 13 x 1½” LG. (for sleeves) | - | 2 | ||
| HHCS3816200F | Hex Head Cap Screw 3/8’’-16x2’’LG | - | 4 | ||
|
|

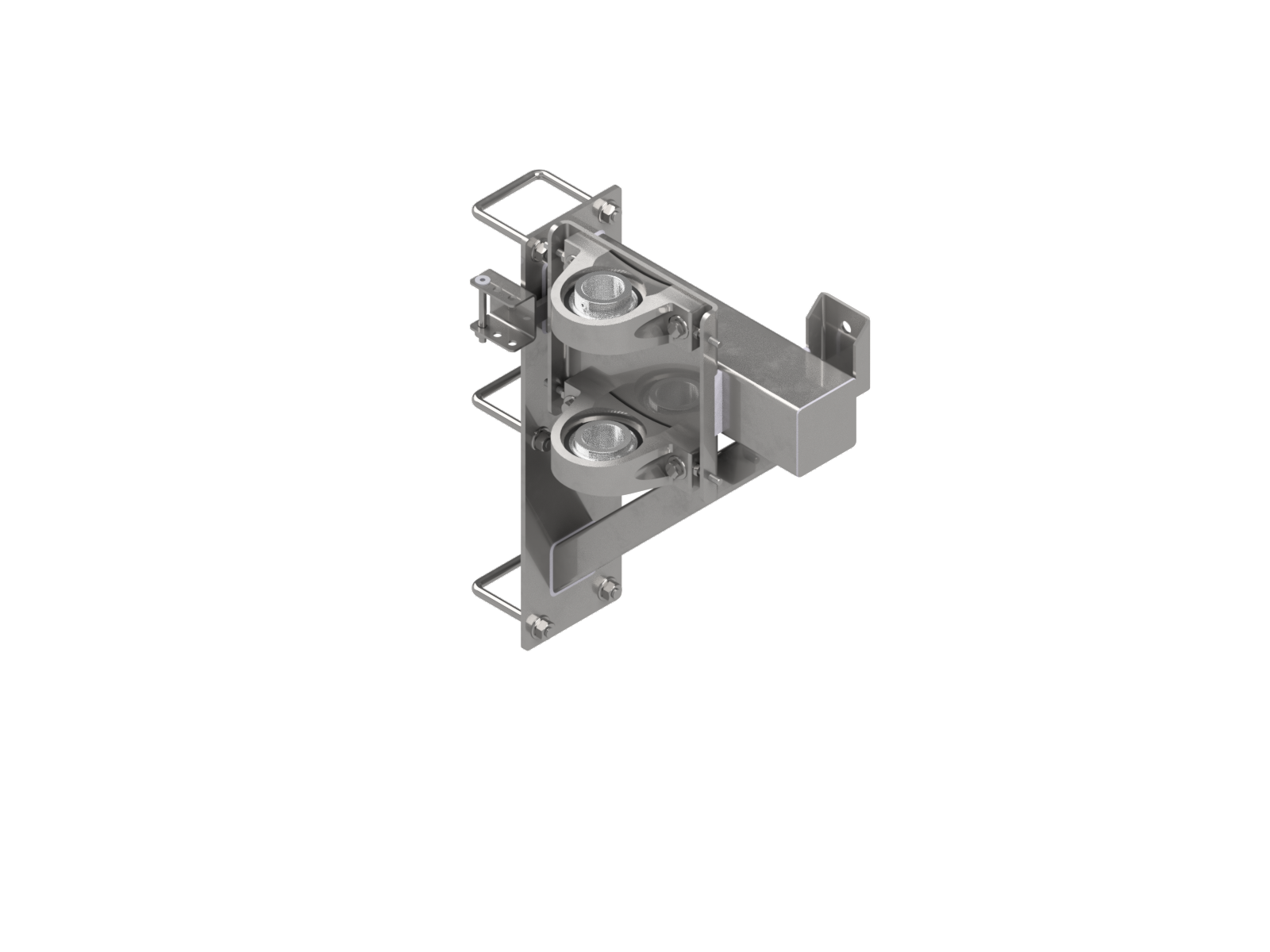

SW2C | ARM MOUNT ASSEMBLY – PASSENGER SIDE: | - | 1 | |
|
|

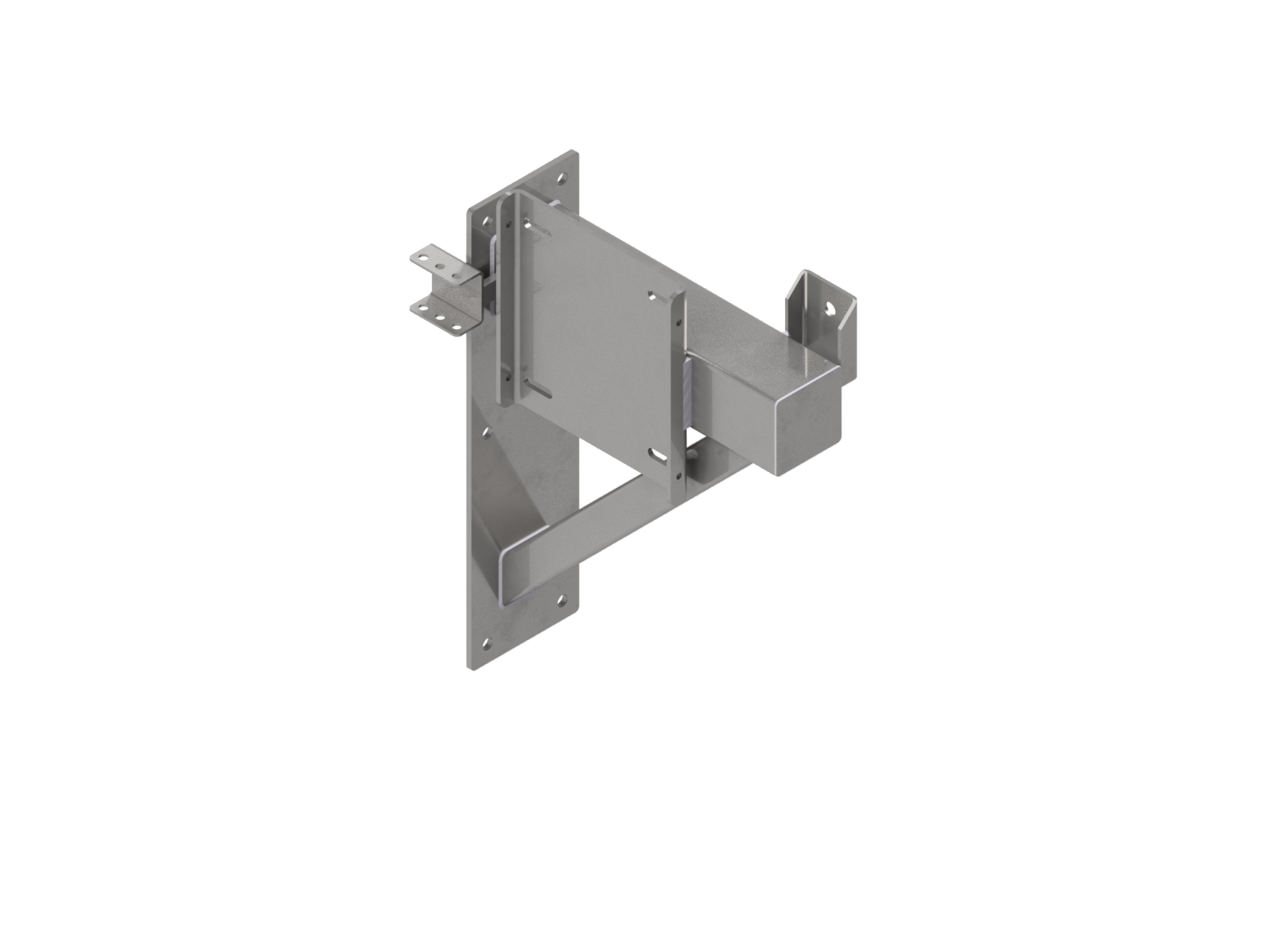

SW2CA | Arm Mount | 4 | 1 | |
| HHCS3816200 | Hex Head Cap Screw 3/8”-16x2”lg.(fully threaded, for pillow block adjustment) | - | 4 | ||
| WA1WB | PILLOW BLOCK 2” | 5 | 4 | ||
| HHCS12132 | Hex Head Cap Screw 1/2“-13x2¼”lg. | - | 8 | ||
| FW12125 | Flat Washer ½”I.D. x 1 ¼” O.D. | - | 16 | ||
|
|
SLW12 | Split Lock Washer 1/2” | - | 8 | |
|
|
HN1213 | HEX NUT 1/2’’ | - | 8 | |
| SW1D | DRIVER SIDE ARM ASSEMBLY: | - | 1 | ||
| SW1DA | DRIVER side ARM 42”lg. | 6 | 1 | ||
| WA1DAD | Bracket For Retract Kit (welded) | - | 1 | ||
|
|
WA1DB | Rubber Stop Arm Assembly | 7 | 1 | |
| WA1DBA | Stop Arm | - | 1 | ||
|
|
WA1DBB | Rubber Bumper | - | 1 | |
| FW38087 | Flat Washer 3/8” I.D. x 7/8” O.D | - | 1 | ||
| SQHS3816075 | Square Head Screw 3/8”-16x ¾” lg. | - | 2 | ||
| SW1DC-0210 | Top Arm with: | - | 1 | ||
| THRD1213500 | Threaded Rod ½’’-13x5’’lg | - | 1 | ||
| FW12100 | Flat Washer ½” I.D. x 1” O.D. | - | 2 | ||
| NLN1213 | Nylon Lock Nut ½”-13 | - | 2 | ||
| SW1E | PASSENGER SIDE ARM ASSEMBLY: | - | 1 | ||
| SW1EA | PASSENGER side ARM 42”lg. | 8 | 1 | ||
| SW1DC-0209 | Top Arm with: | - | 1 | ||
|
|
WA1FA | SHOCK ABSORBER ASSEMBLY: | 10 | 2 | |
| WA1FAA | Shock Absorber | - | 2 | ||
|
|
WA1FA1 | UHMW Bushing 3/8” I.D. | - | 4 | |
| TB1AEA | PIN Ø 3/8” x 3” LG. | 11 | 4 | ||
|
|
WA1FC | COLLAR 3/8” | - | 4 | |
| SW2K | BRUSH SHAFT ASSEMBLY: | - | 2 | ||
| SW5KA | MOTOR MOUNT | 12 | 2 | ||
| HHCS3816075 | w/Hex Head Screw | - | 4 | ||
| NLN3816 | Nylon Lock Nuts | - | 4 | ||
|
|
WA1KM | Hydraulic Motor, displacement 11.9 [cu.in./rev.] | 13 | 2 | |
| SAE070202-8-8 | Fitting 90° elbow ½” NPTM x ½” JIC | - | 4 | ||
| WA1K1 | Torque Plate | - | 2 | ||
| WA5KB-9 | Brush Shaft Æ1½”x10-1/2”lg. | 14 | 2 | ||
| WA1KCB | 4-bolt Bearing 1 ½” | 15 | 4 | ||
| HHCS1213175 | Hex Head Cap Screw ½” – 13 x 1 ¾” lg. | - | 16 | ||
| SLW1/2 | Split Lock Washer | - | 16 | ||
| SW1L | WATER INSTALLATION: | 17 | 1 set | ||
|
|
WA1LA | Side Water Manifold Assembly (on exit legs): | - | 2 | |
|
|
WA1LAA | Manifold | - | 2 | |
|
|
SAE140109P-8 | Hollow Hex Plug ½” NPTM | - | 2 | |
| BRB1/2x1/2 | Barb ½” x ½” NPTM | - | 2 | ||
| NZ1/4 | Nozzle ¼” NPTM | - | 10 | ||
| PPP3/4 | Pipe Clamp ¾”, for water hose and side water manifolds (w/screw fasteners ¼”) | - | 4 | ||
| SAE070115-8 | Tube support sleeves ½” JIC | - | |||
| SAE070110-8 | Nuts ½” JIC | - | |||
| WA1LB | Hydraulic hose assembly: | - | 8 | ||
| SAE100R7-08x34 | Hydraulic Hose 3/8”I.D.x34“lg., thermoplastic | - | 8 | ||
| FC5810-0806 | Crimp Fitting SAE 37° JIC swivel (female) | - | 4 | ||
| FC5807-0806 | Crimp Fitting SAE 37° JIC male flare | - | 12 | ||
| DMP1/2 | Damping Clamp ½”, for hydraulic tubes (w/screw fasteners ¼”) | - | 4 |
