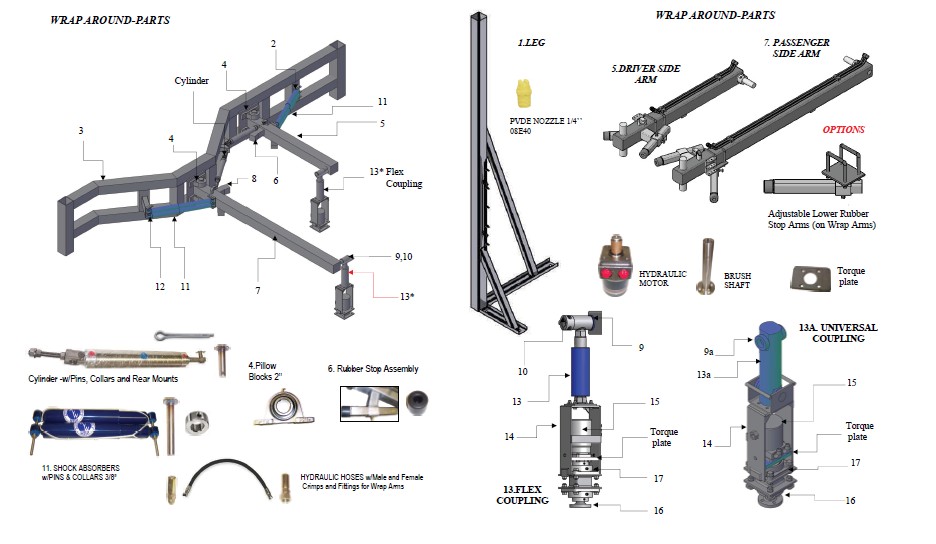

FREE STANDING WRAP AROUND - Model WA1-1952




SKU Details



Sku Images Part# Description Diagram Part # Quantity ADDTOCARTDETAILSANDPRICE
WA1A DRIVER SIDE LEG 1 1
WA1B PASSENGER SIDE LEG 2 1

WACB1C-1566 Z-CROSSBAR 3 1
SQHS1213150 Square Head Screw ½” – 13 x 1½” LG. (for sleeves) - 8

HHCS3816200F Hex Head Cap Screw 3/8’’-16x2’’LG - 8

WA1WB PILLOW BLOCK 2” 4 4
HHCS1213225 Hex Head Cap Screw ½” – 13 x 2 ¼” LG. - 8

FW12125 Flat Washer ½”I.D. x 1 ¼” O.D. - 16

SLW1/2 Split Lock Washer - 8
HN1213 HEX NUT 1/2’’ - 8
WA1D DRIVER SIDE ARM ASSEMBLY: - 1

WA1DA Driver Side Arm 48”lg. - 1

WA1DB Rubber Stop Arm Assembly 5 2

WA1DBA Stop Arm 6 2

WA1DBB Rubber Bumper - 2

HHCS3816125 Hex Head Cap Screw 3/8” – 16 x 1 ¼” LG - 2

FW38087 Flat Washer 3/8” I.D. x 7/8” O.D - 2
HN3816 HEX NUTS 3/8’’ - 2

SQHS3816075 Square Head Screw 3/8”-16x ¾” lg. - 4

WA1E PASSENGER SIDE ARM ASSEMBLY: - 1

WA1EA Passenger Side Arm 76” LG 7 1

WA11 PLASTIC SPACER 9 2

WA11-0112 PLASTIC SPACER ( for UNIVERSAL COUPLING) 9A 2

WA2J-2P 2-PIECE COLLAR 1-1/2’’ 10 2

WA2H-0112 UNIVERSAL COUPLING ASSEMBLY 13A 2
WA2HA-0112 UHMW Flex Coupling - 2
WA1H2 UHMW Bushing 1 ½” I.D. - 2
WA2HC Mounting Channel - 2
WA2HD Shaft 1 ½” x6 ¼” LG - 2
WA1J Collar 1 ½”I.D. x 2 ½’’ O.D. x 7/8” width - 2

HHCS3816075 w/Hex Head Screw - 8

WA5K WRAP AROUND SHAFT ASSEMBLY - 2

WA5KA Motor Mount 14 2

NLN3816 Nylon Lock Nuts - 4

WA1KM Hydraulic Motor, displacement 11.9 [cu.in./rev.] 15 2
SAE070202-8-8 Fitting 90° elbow ½” NPTM x ½” JIC - 4
WA1K1 Torque Plate - 2
WA5KB Brush Shaft Æ1 ½” x 10 ½” lg. 16 2

WA1KCB 4-bolt Bearing 1 ½” 17 4
HHCS1213175 Hex Head Cap Screw ½” – 13 x 1 ¾” lg. - 16

FW12100 Flat Washer ½” I.D. x 1” O.D. - 16
WA1M-5/10x72 BRUSH ASSEMBLY (design: 5” core, 72”lg.) 18 2
WA1L HYDRAULIC & WATER INSTALLATION - -
WA1LA Side Water Manifold Assembly (on exit legs): - 2

WA1LAA Manifold - 2

SAE140109P-8 Hollow Hex Plug ½” NPTM - 2

BRB1/2x1/2 Barb ½” x ½” NPTM - 2
NZ1/4 Nozzle ¼” NPTM - 10
PPP3/4 Pipe Clamp ¾”, for water hose and side water manifolds (w/screw fasteners ¼”) - 10
SAE070115-8 Tube support sleeves ½” JIC -
SAE070110-8 Nuts ½” JIC - 8
WA1LB Hydraulic hose assembly: - 8
SAE100R7-06x34 Hydraulic Hose 3/8” I.D. x 34” lg., thermoplastic - 8
FC5810-0806 Crimp Fitting SAE 37° JIC swivel (female) - 4

(10655-8-6) Catching Fluidpower-“Parker - (4)
FC5807-0806 Crimp Fitting SAE 37° JIC male flare - 12

(10355-8-6) Catching Fluidpower-“Par - (12)
DMP1/2 Damping Clamp ½”, for hydraulic tubes (w/screw fasteners ¼”) - 8
