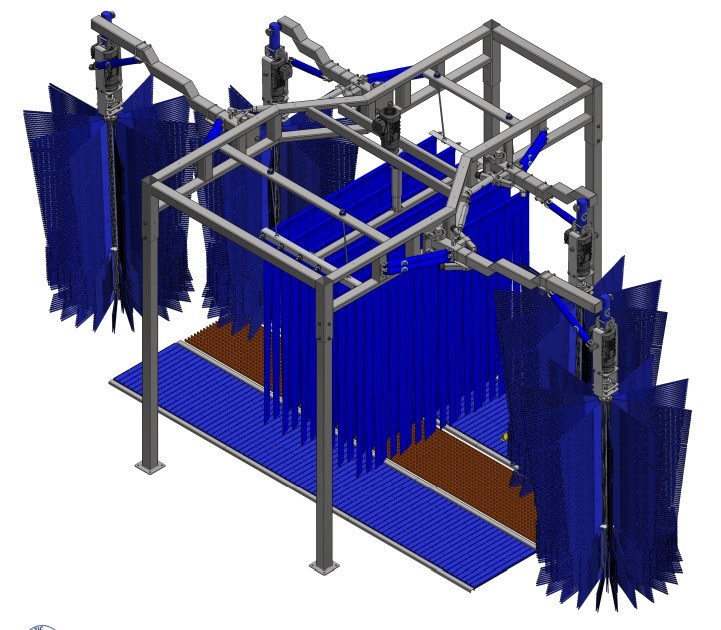

DUAL Z-WRAP MITTER COMBO, MODEL 2WAMC2-EL
The AVW DUAL Z-WRAP MITTER ELECTRIC COMBO operate on gravity. No complicated controls because of the design it can self adjust to most Conveyor speed requirements. Simple design and low maintenance. The mitter curtain has a unique basket motion that provides aggressive motion on the vehicle surface not just at the top of the basket. It is constructed of high grade stainless steel. Telescopic height adjustment allows for easy installation even in settings with limited or obstructed heights. There are no bearings to grease on this unit.
Product Features:
- Electric Motors
- For Wrap Around: Displacement 11.9cu.in./rev., 60 RPM)
- Water: ½” NPT Outlet

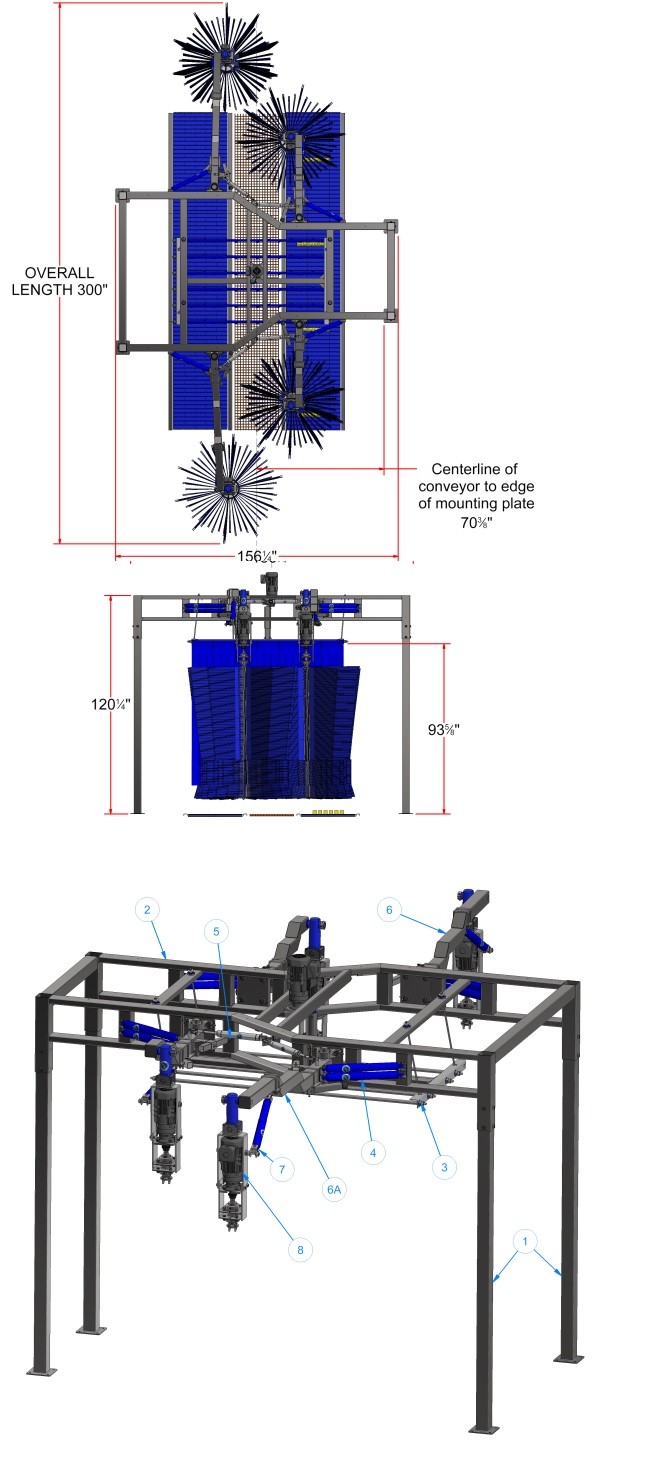

- Equipment Center Line
- 28” from inside Conveyor Rail
SKU Details
| Sku Images | Part# | Description | Diagram Part # | Quantity | |
|---|---|---|---|---|---|
| WC3A | Leg, w/Manifold, for Wrap Mitter Combo Leg, SS | 11 | 44 | ||
| 2WAMC2 | Dual "Z"-Wrap w/Full Mitter Combo (Brushes Not Included) | 22 | 11 | ||
| MC2D | BASKET DRIVE ASSEMBLY: | 33 | 11 | ||
|
|
WA1FA | SHOCK ABSORBER ASSEMBLY: | 44 | 84 | |
| WA1GA | RETRACT KIT: | 55 | 41 | ||
| WA1D/WA1E/WA1DA/WA1EA | ARM ASSEMBLIES | 6 | 1 | ||
| WA2F-0318 | Wrap Stabilizer Kit, with Fasteners and U-bolt Rear Mount to Arm; with 4" x 5-3/4" Heavy Duty Plate and Two U-bolts. (1 set - 2 pcs.) | 77 | 42 | ||
| WA8K-EL | WRAP AROUND SHAFT ASSEMBLY: | 88 | 42 | ||
| WA1M-72-510 | BRUSH ASSEMBLY (design:5’’ core, 72’’ Lg) | 99 | 44 | ||
| SQHS1213150 | Square Head Screw ½” – 13 x 1½” LG. (for sleeves) | - | 16 | ||
| HHCS3816200F | Hex Head Cap Screw 3/8’’-16x2’’LG | - | 16 | ||
| WA1WB | PILLOW BLOCK 2” | 2.1 | 8 | ||
| - | ------ | 164424- | |||
| HHCS1213225 | Hex Head Cap Screw ½” – 13 x 2 ¼” LG. | - | 16 | ||
| FW12125 | Flat Washer ½”I.D. x 1 ¼” O.D. | -- | 328 | ||
| SLW1/2 | Split Lock Washer | - | 16 | ||
|
|
HN1213 | HEX NUT 1/2’’ | --- | 1612 | |
|
|

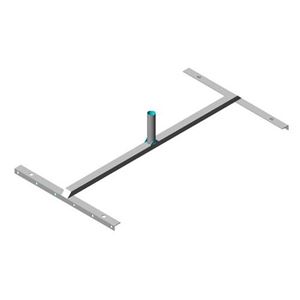

MC2DA | Basket Frame 7’ | 3.1 | 1 | |
| MC2BBA-P1-1-0114 | Cam Arm (w/ welded weld-on hub) | 3.2 | 1 | ||
| P1X100 | Split Taper Bushing P1 1” | 3.3 | 1 | ||
|
|
MC1DB | Sleeve Assembly | - | 1 | |
|
|
MC1DB1 | Sleeve | 3.4 | 1 | |
|
|
MC1DB2 | UHMW Bushing 1” I.D. | - | 1 | |
| SQHS3816075 | Square Head Screw 3/8”-16x ¾” lg. | --- | 388 | ||
| HN3816 | HEX NUTS 3/8’’ | --- | 344 | ||
| MC2DC | Curtain rod assembly: | 3.5 | 6 | ||
|
|
MC2DCA | Curtain Rod 7’4”lg. | 3.6 | 6 | |
| MC1DC2-3/4x2x3/8 | Plastic Spacer ¾ ” I.D.x2” O.D. x 3/8” width | - | 12 | ||
| PLHN3410 | Plastic Hex Nut ¾”-10 | - | 24 | ||
|
|
MC1C | BASKET SUPPORT ROD ASSEMBLY: | 3.7 | 4 | |
|
|
MC1C1 | Basket support Rod ½” x 27” lg. | 3.8 | 4 | |
|
|
MC1C2 | Basket support Disk UHMW | 3.9 | 8 | |
|
|
MC1C3 | Basket support Halfball | - | 8 | |
| NLN1213 | Nylon Lock Nut ½”-13 | - | 8 | ||
| WA1FAA | Shock Absorber | 4.1 | 4 | ||
|
|
WA1FA1 | UHMW Bushing 3/8” I.D. | 4.2 | 8 | |
| WA1FB | PIN Æ3/8” x 6” LG. | 4.3 | 8 | ||
|
|
WA1FC | COLLAR 3/8” | 4.4 | 8 | |
|
|
AC2X10 | AIR CYLINDER 2”x10” | 5.1 | 1 | |
|
|
BJ1-2-20 | BALL JOINT ROD END1/2-20 | 5.2 | 1 | |
|
|

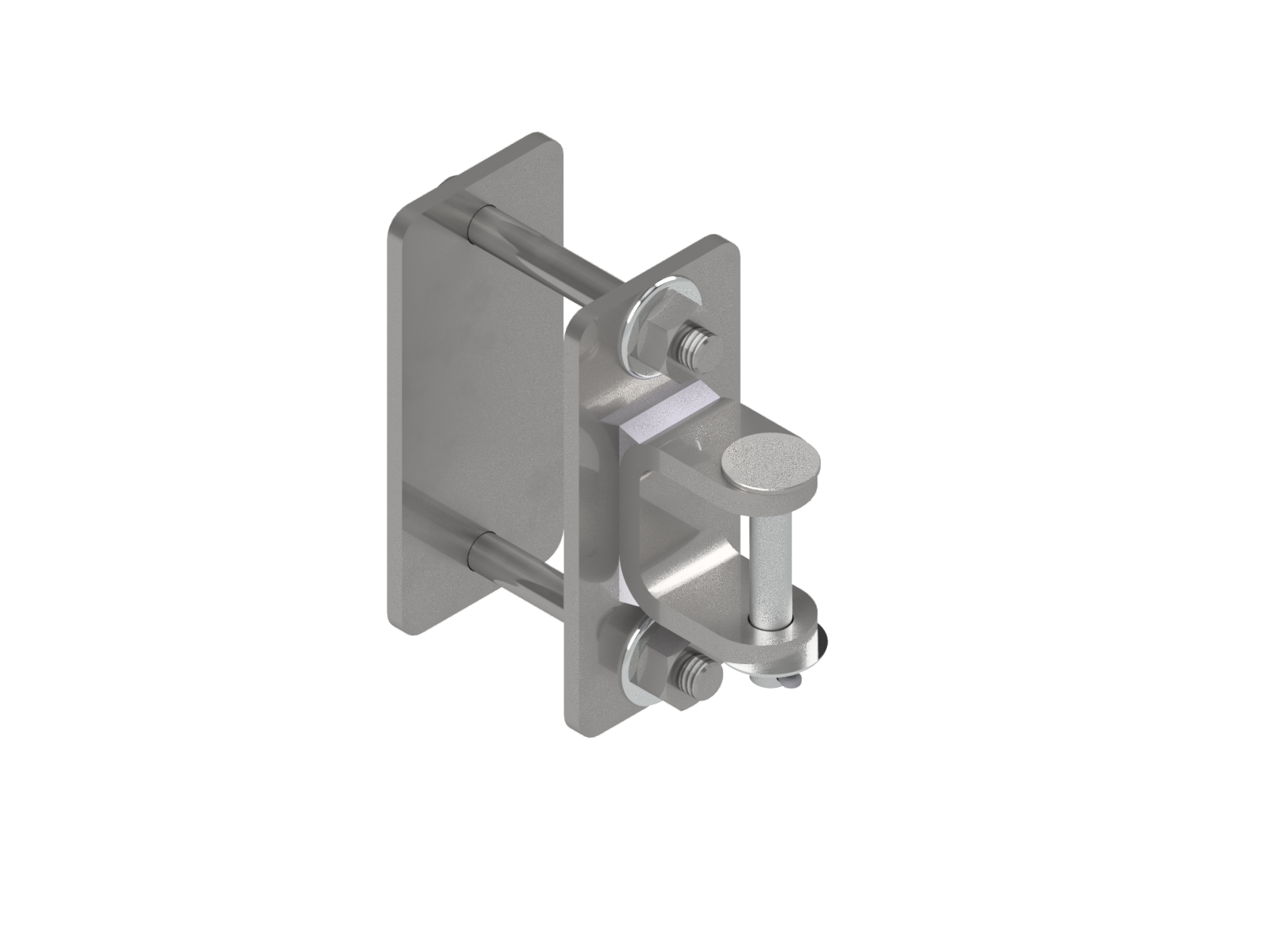

WA2GA | FRONT MOUNT: | 5.3 | 1 | |
| WA2GA1 | Clevis | - | 1 | ||
| WA2GA2 | Threaded rod ½” -13x5”LG. | - | 1 | ||
| WA1GB | Pin 3/8”x1½”lg. | 5.4 | 1 | ||
| CP3-8 | Cotter Pin | - | 1 | ||
| WA1GC | Front pin ½” x 2” LG | 5.5 | 1 | ||
| WA1GD | Collar ½” | - | 1 | ||
| JN1220 | JAM NUT | - | 1 | ||
|
|
WA1D | DRIVER SIDE ARM ASSEMBLY: | - | 2 | |
|
|
WA1DA | Driver Side Arm 48”lg. | 6 | 1 | |
| AG1-WA1DA | Driver Arm 48”lg.-Rev/Passenger Arm 76”lg.-Rev | 6A | 1 | ||
|
|
WA1DB | Rubber Stop Arm Assembly | 6.16.1 | 44 | |
| WA1DBA | Stop Arm | 6.26.2 | 44 | ||
|
|
WA1DBB | Rubber Bumper | 6.36.3 | 44 | |
| HHCS3816125 | Hex Head Cap Screw 3/8” – 16 x 1 ¼” LG | -- | 44 | ||
| FW38087 | Flat Washer 3/8” I.D. x 7/8” O.D | -- | 44 | ||
| WA11-0112 | PLASTIC SPACER ( for UNIVERSAL COUPLING) | 6.46.4 | 22 | ||
| WA2J-2P | 2-PIECE COLLAR 1-1/2’’ | 6.56.5 | 22 | ||
| WA3DB-2639 | ADJUSTABLE LOWER RUBBER STOP ARM (OPTION) | 6.66.6 | 22 | ||
| HHS1213112 | Square Head Screw 1/2” - 13x 1-1/2” LG | -- | 44 | ||
|
|
WA1E | PASSENGER SIDE ARM ASSEMBLY: | - | 2 | |
|
|
WA1EA | Passenger Side Arm 76” LG | 6 | 1 | |
| AG1-WA1EA | Driver Arm 48”lg.-Rev/Passenger Arm 76”lg.-Rev | 6A | 1 | ||
| WA8KA-EL | Motor Mount | 8.1 | 2 | ||
| HHCS3816075 | w/Hex Head Screw | -8.3 | 42 | ||
| NLN3816 | Nylon Lock Nuts | - | 4 | ||
|
|

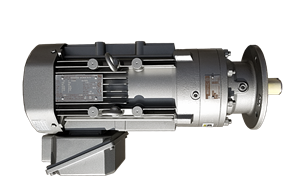

GRMTR1-5HP-81-230-460 | Electric Motor, displacement 11.9{cu.in./rev.} | 8.2 | 2 | |
|
|
WA5KB | Brush Shaft Æ1 ½” x 10 ½” lg. | 8.4 | 8 | |
| WA1KCB | 4-bolt Bearing 1 ½” | 8.5 | 2 | ||
| HHCS1213175 | Hex Head Cap Screw ½” – 13 x 1 ¾” lg. | - | 16 | ||
| FW12100 | Flat Washer ½” I.D. x 1” O.D. | - | 16 | ||
|
|
SLW12 | Split Lock Washer 1/2” | - | 16 | |
|
|
WA2H | UNIVERSAL COUPLING (Optional) | 8.6 | 4 | |
|
|
WA2FA | Shock Absorber Assembly | 7.1 | 2 | |
|
|

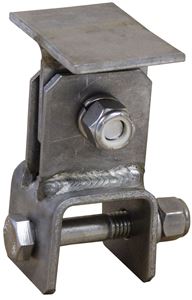

WA2FC | Rear Stabilizer Mount | 7.2 | 2 | |
| WA2DAE | Stabilizer Bracket Kit | 7.3 | 2 | ||
| WA2FB-0416 | Front Stabilizer Mount | 7.4 | 2 | ||
| WA1L | HYDRAULIC & WATER INSTALLATION | - | - | ||
|
|
WA1LA | Side Water Manifold Assembly (on exit legs): | - | 3 | |
|
|
WA1LAA | Manifold | - | 3 | |
|
|
SAE140109P-8 | Hollow Hex Plug ½” NPTM | - | 3 | |
|
|
BRBPP050x050 | Barb 1/2”x ½” NPTM | - | 3 | |
| NZ1-4 | Nozzle ¼” NPTM | - | 15 | ||
| PPP3-4 | Pipe Clamp ¾”, for Water Manifold (w/screw fasteners ¼”-20) | - | 15 |
