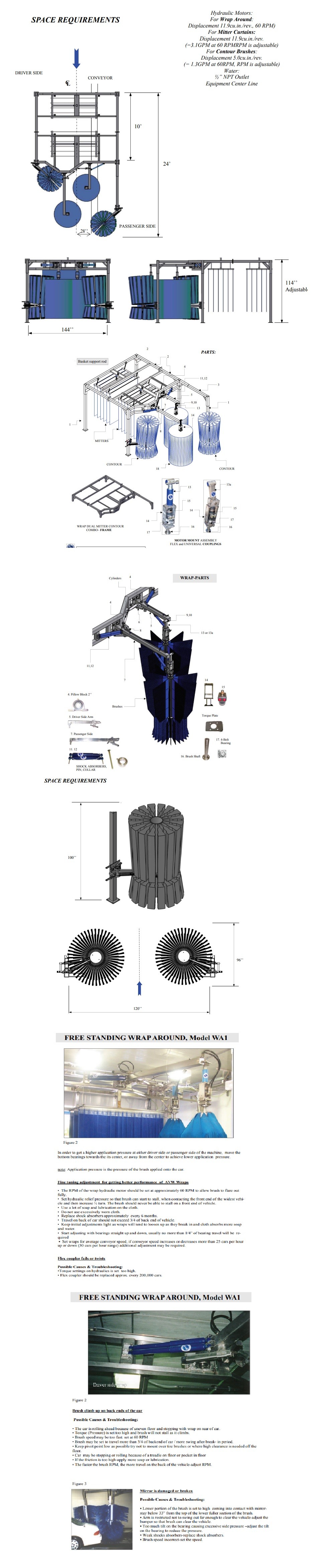

Z-WRAP DUAL MITTER CONTOUR COMBO AVW-STYLE, Model DC3CB0405
The AVW Stainless Steel Z - Wrap Dual Mitter Contour Combo ideal for space savings in tunnels and clean appearance desired in longer tunnels. Z-Wrap Around operates on gravity, no complicated controls. Because of the Design it can self adjust to most conveyor speed requirements. The AVW Stainless Steel Mitter Curtain has a unique basket motion that provides aggressive motion on the vehicle surface not just at the top of the basket. Simple design The AVW Contour is constructed of heavy grade Stainless steel designed to rotate reverse of the AVW Wrap Around and to provide constant pressure to the both side of vehicles. Van High brush height is ideal for vans and sport utility vehicles because it cleans the sides with smooth even pressure.
Product Features:
- Compact cleaning (12’)
- Framework has only three Support legs
- Contours use two independent motor for top and bottom
- Retract kit is available
SKU Details
| Sku Images | Part# | Description | Diagram Part # | Quantity | |
|---|---|---|---|---|---|
| MC1A | LEG | 1 | 5 | ||
| DC3CB0405B | FRAME ASSEMBLY | 2 | 1 | ||
| DC3CB0405BA | Z-FRAME SECTION | - | 1 | ||
| DM2BA | MITTER FRAME SECTION | - | 1 | ||
| SQHS1213150 | Square Head Screw ½” – 13 x 1½” LG. (for sleeves) | - | 12 | ||
| HHCS3816200F | Hex Head Cap Screw 3/8’’-16x2’’LG | - | 8 | ||
| - | Screw fastener set 3/8”, for collar | --------- | -22416---- | ||
| HHCS1213150 | Hex Head Cap Screw 1/2”-13 x 1 1/2” LG | - | 8 | ||
| FW12125 | Flat Washer ½”I.D. x 1 ¼” O.D. | -- | 1616 | ||
| SLW1/2 | Split lock washer | --- | 8816 | ||
| HN1213 | Hex nut 1/2”-13 | -- | 816 | ||
| WACB1D | FASTENING BAR | 3 | 1 | ||
| SQHS1213150 | Square head screw ½” - 13 x 1 ½” lg. (for sleeves) | - | 4 | ||
| WA1WB | PILLOW BLOCK 2” | 4 | 4 | ||
| - | ---- | 88--- | |||
| HHCS12132 | Hex Head Cap Screw 1/2“-13x2¼”lg. | - | 8 | ||
|
|
HN1213 | HEX NUT 1/2’’ | -- | 8- | |
|
|
WA1D | DRIVER SIDE ARM ASSEMBLY: | - | 1 | |
| WA1DA | Driver Side Arm 48”lg. | 5 | 1 | ||
| WA1DB | Rubber Stop arm assembly: | 6 | 2 | ||
| WA1DBA | Stop Arm | -- | 22 | ||
| WA1DBB | Rubber Bumper | -- | 22 | ||
| HHCS3816125 | Hex Head Cap Screw 3/8” – 16 x 1 ¼” LG | - | 2 | ||
| FW38087 | Flat Washer 3/8”I.D.x7/8”O.D. | --- | 228 | ||
| HN3816 | Hex nut 3/8”-16 | --- | 228 | ||
| SQHS3816075 | Square head screw 3/8”-16x ¾” lg. | -- | 44 | ||
|
|
WA1E | PASSENGER SIDE ARM ASSEMBLY: | - | 1 | |
| WA1EA | Driver Side Arm 76”lg. | 7 | 1 | ||
| WA1DAD | BRACKET for RETRACT KIT (Welded to Arm) | - | 1 | ||
|
|
WA1DB | Rubber Stop Arm Assembly | 8 | 2 | |
| HHCS3816125 | Hex Head Cap Screw 3/8” – 16 x 1 ¼” lg. | - | 2 | ||
| WA11 | PLASTIC SPACER | 9 | 2 | ||
| WA2J-2P | 2-PIECE COLLAR 1-1/2’’ | 10 | 2 | ||
|
|
WA1FA | SHOCK ABSORBER ASSEMBLY: | 11 | 2 | |
| WA1FAA | Shock Absorber | - | 2 | ||
| WA1FA1 | UHMW Bushing 3/8” I.D. | - | 4 | ||
| WA1FB | PIN Æ3/8”x6”lg. | 12 | 4 | ||
|
|
WA1FC | COLLAR 3/8” | - | 4 | |
| WA1H | FLEX COUPLING ASSEMBLY (optional) | 13 | 2 | ||
| WA1HA | Welded Flex Coupling | - | 2 | ||
| WA1HB | Wrap Cam ¾ ”I.D. | - | 2 | ||
| WA1H1 | UHMW Sleeve | - | 2 | ||
| WA1H2 | UHMW Bushing 1½”I.D. | -- | 22 | ||
|
|
WA2H | UNIVERSAL COUPLING (Optional) | 13a | 2 | |
|
|

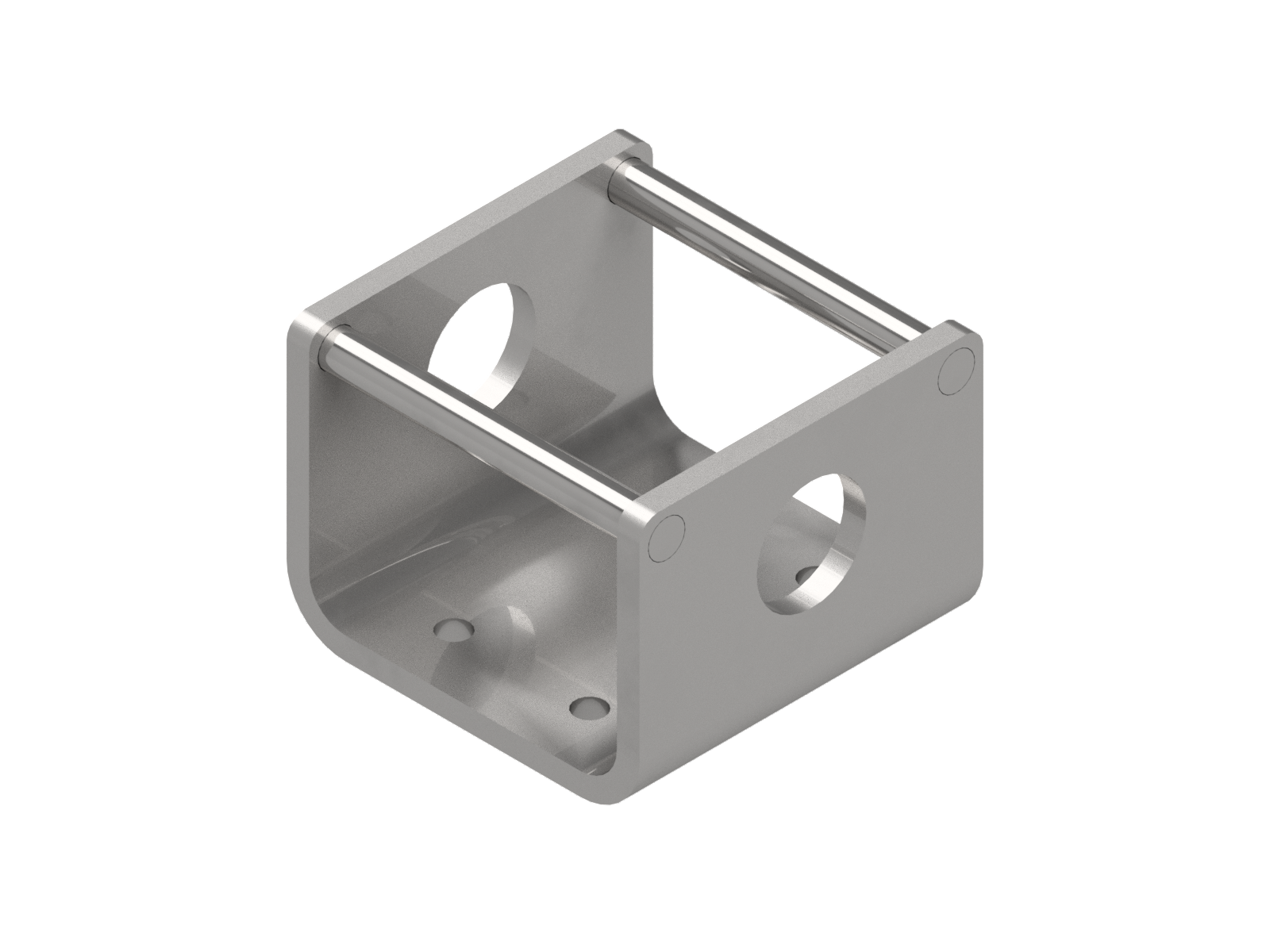

WA2HA | Welded COUPLING | - | 2 | |
| WA2HC | Mounting Channel with collars 1½”I.D. x 2 ½"O.D. x 7/8” width | - | 2 | ||
| WA2HD | Shaft 1½” x 6¼”LG | - | 2 | ||
| WA1J | Collar 1 ½”I.D. x 2 ½’’ O.D. x 7/8” width | - | 4 | ||
| HHCS3816075 | w/Hex Head Screw | -- | 84 | ||
| WA5K | WRAP AROUND SHAFT ASSEMBLY | 14 | 2 | ||
| WA5KA | Motor Mount | - | 2 | ||
| NLN3816 | Nylon Lock Nuts | - | 4 | ||
| WA1KM | Hydraulic motor, displacement 11.9 [cu. in./rev.], | 15 | 2 | ||
| SAE070202-8-8 | Fitting 90° elbow ½” NPTM x ½” JIC | - | 4 | ||
| WA1K1-UHMW | TORQUE PLATE-UHMW | - | 2 | ||
| HHCS3816075 | Hex head cap screw 3/8”-16 x ¾ ”lg. (motor’s fastener) | - | 8 | ||
| WA5KB-0508 | BRUSH SHAFT Ø 1 ½” x 9” lg. | 16 | 2 | ||
| WA1KCB | 4-bolt Bearing 1½” UCF208-24E | 17 | 4 | ||
| HHCS1213175 | Hex Head Cap Screw ½” – 13 x 1 ¾” lg. | - | 16 | ||
| FW12100 | Flat Washer ½ ”I.D.x1”O.D. | - | 16 | ||
| WA1M-5/10x72 | BRUSH ASSEMBLY (design: 5” core, 72”lg.) | 18 | 2 | ||
| HHCS1213150 | Hex Head Cap Screws 1/2“-13x1½”LG | - | - | ||
| FV12125 | Flat Washers 1/2“I.D.x1¼” O.D | - | - | ||
| SLW1-2 | Split Lock Washers 1/2“ | - | - | ||
| WA1L | HYDRAULIC & WATER INSTALLATION | 19 | - | ||
| WA1LA | Side Water Manifold Assembly (on exit legs): | - | 3 | ||
|
|
WA1LAA | Manifold | - | 3 | |
| SAE140109P-8 | Hollow Hex Plug ½”NPTM | - | 3 | ||
| BRB1/2x1/2 | Barb 1/2”x ½” NPTM | - | 3 | ||
| NZ1/4 | Nozzle ¼” NPTM | - | 15 | ||
| PPP3/4 | Pipe Clamp ¾”, for water hose and side water manifolds (w/screw fasteners ¼”) | - | 15 | ||
| SAE070115-8 | Tube Support Sleeves ½” JIC | - | 30 | ||
| SAE070110-8 | Nuts ½” J | - | 30 | ||
| WA1LB | Hydraulic hose assembly: | - | 8 | ||
| SAE100R7-06x34 | Hydraulic Hose 3/8”I.D.x34”lg., thermoplastic, “Aeroquip” FC372-06 | 8 | |||
| FC5810-0806 | Crimp Fitting SAE 37° JIC swivel (female) “Aeroquip” | 4 | |||
| FC5807-0806 | Crimp fitting SAE 37° JIC male flare | 12 | |||
| DMP1/2 | Damping clamp ½”, for hydraulic tubes (w/screw fasteners ¼”-20) | 8 | |||
| HHCS1420125 | Hex head cap screw ¼” -20 x 1¼”lg. | 8 | |||
| - | Flat Washer 1/4“I.D | - | 4 |
