Z-WRAP DUAL MITTER CONTOUR COMBO AVW-STYLE, Model DC3CB0405 (MITTERS)

Z-WRAP DUAL MITTER CONTOUR COMBO AVW-STYLE, Model DC3CB0405 - MITTERS

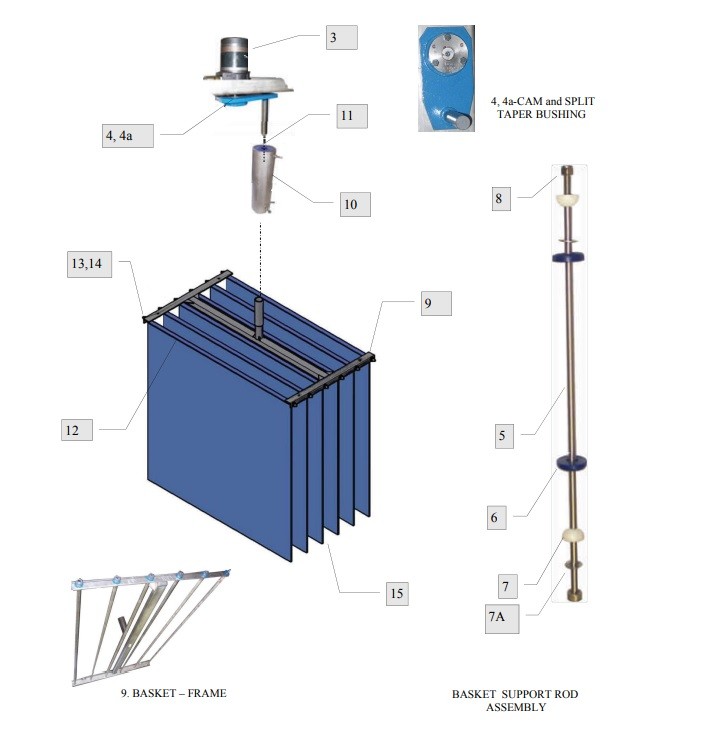

Part#	Description	Diagram Part #	Quantity
MC2BB	BASKET DRIVE ASSEMBLY:	-	2
TB0195	Hydraulic motor, displacement 13.9 [cu.in./rev.], “Parker” Model TC0230FP10...	3	2
SAE070102-8-8	Straight Fitting ½” NPTM x ½ ” JIC	-	4
MC2BBA	Cam arm (w/welded weld-on hub)	4	2
TL1610-1	Taper lock bushing 1”	4A	2
-		--14	8624
MC1BC	U-turn water manifold assembly:	-	2
MC1BCA	U-turn manifold	-	2
SAE140109P-8	Hollow Hex Plug ½” NPTM	-	2
BRB1/2x1/2	Barb 1/2”x ½” NPTM	-	2
NZ1/4	Nozzle ¼” NPTM	-	16
MC1BD	Beam Clamp ¾”, for Water Manifold (w/screw fasteners ¼”-20)	-	8
MC1C	BASKET SUPPORT ROD ASSEMBLY:	-	8
MC1C1-102307	Basket support rod 1/2“x27-1/2”lg.w/Welded Collar	5	8
MC1C2	Basket support disk UHMW	6	16
MC1C3	Basket support half ball	7	16
-	Screw fastener set 3/8”, for collar	7A8----	168624--
MC2D	BASKET DRIVE ASSEMBLY:	-	2
MC2DA	Basket frame 7	9	2
MC1DB	Sleeve assembly:	-	2
MC1DB1	Sleeve	10	2
MC1DB2	UHMW bushing 1” I.D.	11	2
MC2DC	Curtain Rod Assembly	-	12
MC2DCA	Curtain rod 7’4”lg.	12	12
MC1DC2	Plastic spacer 1” I.D.x2” O.D.x1/4” width	13	24
MC1DC1	Plastic spacer 7/8” I.D.x1½” O.D.x3/16” width	-	24
MC1E	CURTAIN (CLOTH)	15	84
DM2L	HYDRAULIC INSTALLATION	-	-
SAE010115-8	Tube support sleeves 1/2“JIC	-	-
SAE070110-8	Nuts ½” J	-	-
DMP1/2	Damping clamp ½”, for hydraulic tubes (w/screw fasteners ¼”-20)	-	-
