CONTOUR BRUSH-AVW Style, Model CB0405 (Passenger Side)



CONTOUR BRUSH-AVW Style, Model CB0405 (Passenger Side)

SKU Details

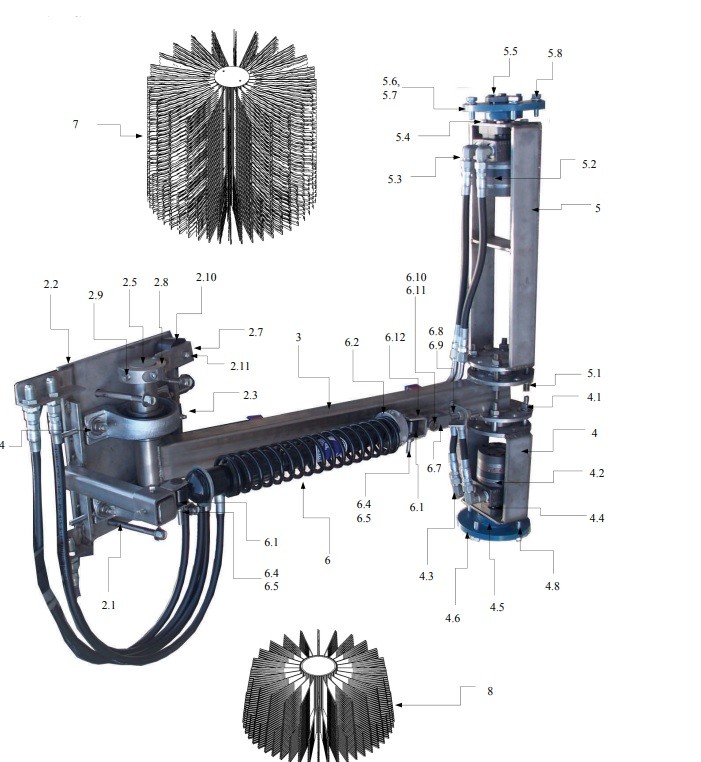

Sku Images Part# Description Diagram Part # Quantity
CB0405B CONTOUR BRUSH SIDE - 1
CB0405BB ARM MOUNT ASSEMBLY 2 1
RB2ABB Square U-Bolt Fastener set 1/2’’ - 2
RB2ABB1 Square U-Bolt 1/2’’x17’’lg 2.1 2
SLW1/2 Split lock washer ------ 224444
HN1213 Hex nut 1/2”-13 -----6.9 224443
CB0405ABA ARM MOUNT 2.2 1
WA1WB PILLOW BLOCK 2’’ 2.3 2
- Screw fastener set 3/8”, for collar 2.42.82.114.15.87.4 2-1448
HHCS1213225 Hex Head Cap Screw ½”-13x2 ½”LG - 2
FW12125 Flat Washer ½”I.D. x 1 ¼” O.D. - 2
CB04905SH SHAFT 2’’ x 14-1/4’’lg 2.5 1
CB0405AC BUMPER ASSEMBLY 2.6 1
CB0405ACA 2-Piece BUMPER MOUNT 2.7 1
HHCS3816150 Hex Head cap screw 3/8’’-16x1-1/2’’lg 2.9 2
SLW 3/8 Split Lock Washer 3/8’’ - 2
HN3816 HEX NUTS 3/8’’ - 1
WA1DBB Rubber Bumper 2.10 1
HHCS3816125 Hex Head Cap Screw 3/8” – 16 x 1 ¼” lg. - 1
FW38087 Flat Washer 3/8”I.D.x7/8”O.D. - 1
HN3816 Hex nut 3/8”-16 - 1
CB0405DAx32 ARM 3 1
RB1AE BRUSH DRIVE LOWER ASSEMBLY - 1
RB1AEA MOTOR MOUNT ( 20’’ lg ) 45 11
HHCS1213300 Hex head cap screw ½” -13x3”lg - 4
FW12125 Flat Washer 1/2”I.D.x1-1/4”O.D. -- 44
TB1ADBM HYDRAULIC MOTOR , displacement 5.0 [cu.in./rev.] 4.2 1
SAE070202-8-8 Fitting 90° elbow ½ ”NPTMx ½ ”JIC 4.35.3 22
HHCS3816075 Hex head cap screw 3/8”-16 x ¾ ”lg. (motor’s fastener) 4.45.4 34
P1 1 (0106) SPLIT TAPER BUSHING 1” 4.55.5 11
SSS1420050C (set w/two socket set screws ¼ ”-20x ½ ”lg., carbon steel) - 2
RB2AEB-P1-1-0106 (set w/two socket set screws ¼ ”-20x ½ ”lg., carbon steel) 4.65.6 11
MC2BBA3-P1-0106 w/welded weld-on hub 4.75.7 11
- 4.8- 442
HHCS1213125 - Hex Head screw 3/8’’-16x2’’Lg (Fully threaded, for pillow block adjusted) - 4
RB2AE BRUSH DRIVE UPPER ASSEMBLY - 1
HHCS1213300 Hex Head Cap Screw ½” -13x3”lg. - 4
TB1ADBM HYDRAULIC MOTOR , displacement 5.0 [cu.in./rev.] 5.2 1
SSS1420050C SPLIT TAPER BUSHING 1” - 2
HHCS1213125 Hex Head Screw 3/8’’-16x2’’Lg (Fully threaded, for pillow block adjusted) - 4
HN1213 HEX NUT 1/2’’ - 4
RB1AF SHOCK ABSORBER ASSEMBLY - 1
RB1AFA SPRING SHOCK ABSORBER 6 1
RB1AFA1 UHMW bushing 3/8”I.D. 6.1 2
RB2AFB Spring adjuster assembly (aluminum 2-piece collar): 6.2 1
RB2AFB1 Aluminum adjuster (2-piece collar) - 1
HHCS1420125 Hex head cap screw ¼” -20 x 1¼”lg. - 2
HN1420 Hex nut ¼ ”-20 - 2
RB1AFC Plastic spacer 6.3 1
TB1AEA PIN Ø3/8”x3”lg 6.4 2
WA1FC COLLAR 3/8” 6.56.11 21
RB1AG FRONT MOUNT: 6.6 1
WA2GA1 Clevis 6.7 1
WA2GA2 Threaded rod ½” -13x5”lg 6.8 1
WA1GB Pin 3/8”x1½”lg 6.10 1
RB1AGA Shock mount 6.12 1
CB0405AM-51 UPPER BRUSH 51” ASSEMBLY 7 1
CB1AMA-51 Brush cloth 7.1 1
CB1AMC-51 Aluminum Extrusion 7.2 2
CB1AMB-51 Two-piece collar 1½”x12 core 7.3 2
CB0405AM-21 LOWER BRUSH 21” ASSEMBLY: 8 1
CB1AMA-21 Brush cloth 8.1 1
CB1AMC-21 Aluminum extrusion 8.2 2
CB1AMB-21 Two-piece collar 1½”x12 core 8.3 2
CB0405LP HYDRAULIC TUBE INSTALLATION - 1
CB0405LDA HYDRAULIC TUBE ASSEMBLY (UPPER): 9 2
CB0405LDA1x26 Hydraulic tube ½ ”O.D.xW.035”X26’’LG, stainless steel 9.1 2
SAE070115-8 Tube Support Sleeves ½” JIC 9.210.2 44
SAE070110-8 Nuts ½” JIC 9.310.3 44
SAE070201-8-8 Fitting 90°elbow ½” JIC x ½ ”JIC 9.410.4 22
CB0405LDAx22 HYDRAULIC TUBE ASSEMBLY (LOWER): 10 2
CB0405LDA1x22 Hydraulic tube ½ ”O.D.xW.035”X22’’LG, stainless steel 10.1 2
CB0405HD HYDRAULIC HOSE INSTALLATION : - 1
CB0405HDA HYDRAULIC HOSE ASSEMBLY (UPPER 11 2
SAE100R7-06x15 Hydraulic Hose 3/8’’I.D x 15’’lg, thermoplastic 11.1 2
FC5810-0806 Crimp Fitting SAE 37° JIC swivel (female) “Aeroquip” 11.213.214.2 442
CB0405LDDx27 HYDRAULIC HOSE SET: 12 2
SAE100R7-06x27 Hydraulic Hose 3/8’’I.D x 27’’lg, thermoplastic 12.1 2
FC5810-0806 Crimp Fitting SAE 37° JIC swivel (female) 12.2 2
FC5807-0806 Crimp fitting SAE 37° JIC male flare 12.314.3 22
SAE 700601 Fitting– straight bulkhead 1/2’’JIC x 1/2’’JIC, Brass 12.5 2
CB0405HDB HYDRAULIC HOSE ASSEMBLY (LOWER BRUSH): 13 2
SAE100R7-06x5 Hydraulic Hose 3/8’’I.D x 5’’lg, thermoplastic 13.1 2
CB0405LDDx36 HYDRAULIC HOSE SET: 14 2
SAE100R7-06x36 14.1 2
SAE 700601-8-8 Fitting– straight bulkhead 1/2’’JIC x 1/2’’JIC, Brass 14.4 2
