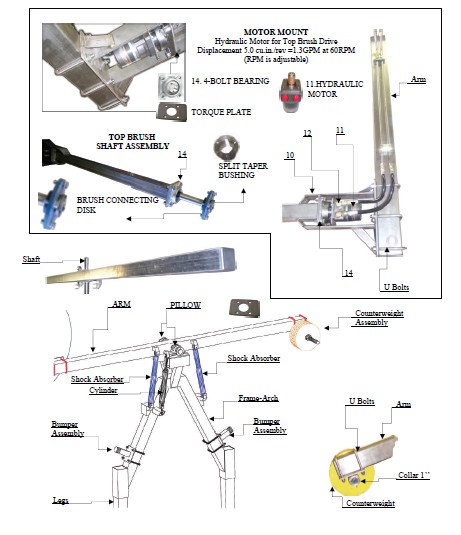

TIRE WASHER w/TOP BRUSH-Model-TBTR2-1655, TOP BRUSH-PARTS
SKU Details
| Sku Images | Part# | Description | Diagram Part # | Quantity | ADDTOCARTDETAILSANDPRICE |
|---|---|---|---|---|---|
| TBTR2A | LEG | 1 | 2 | ||
| TBTR2B0304 | PENTA ARCH | 2 | 1 | ||
| SQHS1213150 | Square Head Screw ½” – 13 x 1½” LG. (for sleeves) | 8 | |||
| TR1DB0304 | BUMPER ASSEMBLY | 3 | 1 | ||
|
|
WA1DBB | Rubber Bumper | 2 | ||
|
|
WA1DBB-S | UHMW SPACER | 1 | ||
|
|
TR1ACF0304 | FRONT BRACKET for AIR CYLINDER | 4 | 1 | |
| TR1SAF0304 | FRONT MOUNT for SHOCK ABSORBER | 5 | 2 | ||
|
|
TR1C0304 | TOP BRUSH ARM w/ | 6 | 1 | |
| WA1WB | PILLOW BLOCK 2” | 7 | 2 | ||
| HHCS1213225 | Hex Head Cap Screw ½” – 13 x 2 ¼” LG. | 4 | |||
| FW12125 | Flat Washer ½”I.D. x 1 ¼” O.D. | 8 | |||
| SLW1/2 | Split Lock Washer | 4 | |||
|
|
HN1213 | HEX NUT 1/2’’ | 4 | ||
|
|
UB-SQ050x1500 | U Bolts 1/2” to accept Rect. Tub. 2”x6” | 4 | ||
| TR1D-1 ¼ | SHAFT for counterweight 1¼” | 8 | 1 | ||
| RB2ABB | Square U-Bolt Fastener set 1/2’’ | 5 | |||
| TR1F0304 | COUNTERWEIGHT | 9 | 3 | ||
| TR1F-C1 ¼ | 2 piece - collars 1¼” I.D. | 2 | |||
|
|
TR1G | TOP BRUSH SHAFT ASSEMBLY: | 1 | ||
|
|
TR1GA | MOTOR MOUNT | 10 | 2 | |
| HHCS3816075 | w/Hex Head Screw | 2 | |||
| NLN3816 | Nylon Lock Nuts | 2 | |||
| TB1ADBM | HYDRAULIC MOTOR , displacement 5.0 [cu.in./rev.] | 11 | 1 | ||
| WA1K1 | Torque Plate | 1 | |||
| TR1GB | BRUSH SHAFT 1 ½” x 60” LG. | 13 | 1 | ||
|
|
TR1GC | BRUSH CONNECTING DISK (w/welded weld-on hub) | 1 | ||
| P1-1½ | SPLIT TAPER BUSHING 1½” | 1 | |||
| WA1KCB | 4-bolt Bearing 1 ½” | 14 | 2 | ||
| HHCS1213175 | Hex Head Cap Screw ½” – 13 x 1 ¾” lg. | 8 | |||
| FW12100 | Flat Washer ½” I.D. x 1” O.D. | 8 | |||
| TR1H | FOAMED BRUSH (Foam Aid 60” dia. x 82”lg.) w/ | 15 | 61 | ||
|
|
AC2X10 | AIR CYLINDER 2”x10” | 16 | 1 | |
| BJ1/2-20 | BALL JOINT ROD END1/2-20 | 1 | |||
| WA1GB | Pin 3/8”x1½”lg. | 1 | |||
| CP3/8 | Cotter Pin | 1 | |||
| WA1GC | Front pin ½” x 2” LG | 1 | |||
| WA1GD | Collar ½” | 1 | |||
|
|
WA1FA | SHOCK ABSORBER ASSEMBLY: | 17 | 2 | |
| WA1FAA | Shock Absorber | 2 | |||
|
|
WA1FA1 | UHMW Bushing 3/8” I.D. | 4 | ||
| TB1AEA | PIN Ø 3/8” x 3” LG. | 4 | |||
|
|
WA1FC | COLLAR 3/8” | 4 |
