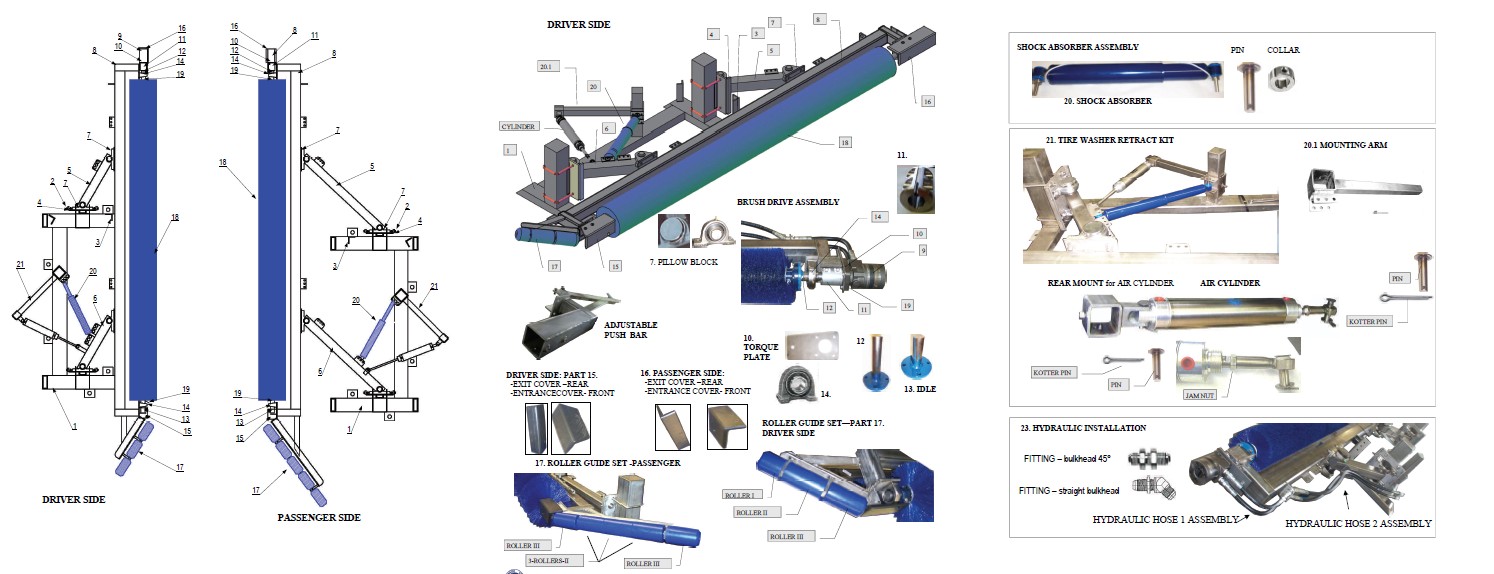

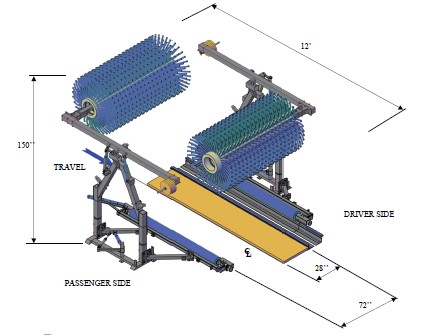

TIRE WASHER Model-TB2, STEPPED TIRE WASHER, Model-TB2-1655: PASSENGER'S SIDE




SKU Details



Sku Images Part# Description Diagram Part # Quantity ADDTOCARTDETAILSANDPRICE
TB2B TIRE BRUSH SIDE - 1
TB2BA FRAME ASSEMBLY - 1

TB2BAA FRAME 1 1
HHCS3816200F Hex Head Cap Screw 3/8’’-16x2’’LG 2 8

WA1DBB Rubber Bumper 3 1

FW38087 Flat Washer 3/8” I.D. x 7/8” O.D - 1
HN3816 HEX NUTS 3/8’’ - 1

TB2AAC PILLOW BLOCK MOUNTING PLATE 4 2

TB2AACA Mounting Plate - 2

RB2ABB Square U-Bolt Fastener set 1/2’’ - 4

RB2ABB1 Square U-Bolt 1/2’’x17’’lg - 4
SLW1/2 Split Lock Washer - 8
HN1213 HEX NUT 1/2’’ - 8
TBTR2A LEG - 2

TBTR2AB PLATES #1/4”x6” Round - 2
TB2BBX32 FRONT ARM 5 1

TB2BCX32 REAR ARM 6 1

TB1WB PILLOW BLOCK BEARINGS 1-1/4’’ (Capped) 7 4
TB1WC Cap - 4
RB1WB Pillow Block Bearings (Non Capped) - 4
HHCS1213225 Hex Head Cap Screw ½” – 13 x 2 ¼” LG. - 16

FW12125 Flat Washer ½”I.D. x 1 ¼” O.D. - 32

TB2BD-4B-0810 BRUSH -RACK SUPPORT FRAME ASSEMBLY: - 1
TB2BDA-4B-0810 BRUSH SUPPORT FRAME- (RACK) 8 1
TB2BDAA-4B-0810 FRAME - 1
TB2BDABA-4B-0810 ADJUSTABLE PUSH BAR - 1

TB2ADB-4B BRUSH DRIVE ASSEMBLY 9 1
TB1ADBM HYDRAULIC MOTOR , displacement 5.0 [cu.in./rev.] - 1
SAE070102-8-8 1/2’’JIC -1/2’’NPT, MALE 10 2

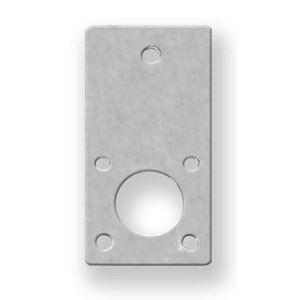

TB2ADB1-4B TORQUE PLATE - 1

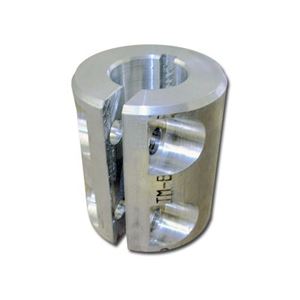

TB2ADBC ALUMINIUM COUPLING 1’’ x 1-1/4’’ 11 1

TB2ADBA-4B DRIVE SHAFT Ø 1-1/4’’x6’’Lg 12 1

SHCS3816100F SOCKET HEAD CAP SCREW - 4

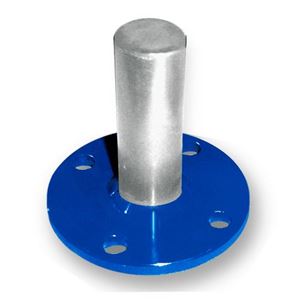

TB1AD1-4B DRIVE SHAFT Ø 1-1/4’’x6’’LG 13 1

TB1ADDA TAPPED BASE BEARING 1-14’’ 14 2
HHCS71614075 Hex Head Cap Screw 7/16’’- - 4

SLW7/16 14x3/4’’LG - 4

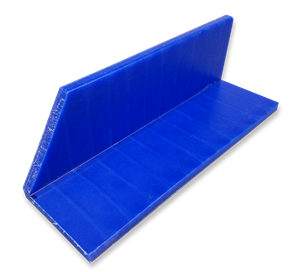

TB2BD2-0809 ENTRANCE COVER (FRONT) 15 1

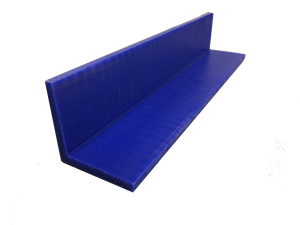

TB2BD3-0809 EXIT COVER (REAR) 16 1

CBS3816125 CARRIAGE BOLT 3/8’’-16x1-1/4’’LG - 4

TB1BDC ROLLER GUIDE SET (PUSH BAR) 17 1

TB1ADC2-0209 Roller II (Dia. 3’’x5-5/8’’’LG) - -

TB1ADC3-0209 Roller III (Dia. 3’’x5-5/8’’’LG) - 3

VD3L-34x125 Collars - 2

TB1BDC4-0209 Shaft ( Dia. 3/4’’x14-1/2’’LG) - 1

TB1ADE-4B-94 BRUSH SET - 1
TB1ADEA-4B-94 BRUSH Ø8’’x94’’lg 18 1
TB1ADEA-4B-94-1655 STEPPED BRUSH –For Stepped Tire Brush (Option) 18a 1
TB1ADEB-4B 4-BOLT SPINDLE 19 2
TB1AE SHOCK ABSORBER ASSEMBLY: - 1

WA1FAA Shock Absorber 20 1
TB2AG-1104 SHOCK ABSORBER’S MOUNTING - 1

WA1FA1 UHMW Bushing 3/8” I.D. - 2

TB1AEA PIN Ø 3/8” x 3” LG. - 2

WA1FC COLLAR 3/8” - 2

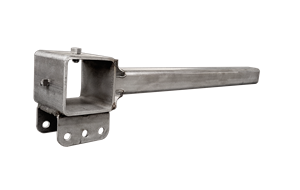

TB2AGA-1104 MOUNTING ARM 20.1

TB2AF TIRE WASHER RETRACT KIT 21 1set
TB2AGB-1104 REAR MOUNT for Air Cylinder - 1

AC2X8-R AIR CYLINDER (2’’ Bore, 8’’ St - 1
BJ1/2-20 BALL JOINT ROD END1/2-20 - 1
WA1GC Front pin ½” x 2” LG - 2

CP1/2 COTTER PIN - 2
WA1P RETRACT AIR CONTROL PANEL(OPTIONAL) 22 1
FRL1/4 FRL COMBINATION - 1
4WDV1/4 4-WAY DIRECTIONAL VALVE 1/4’’ - 1
TB1L HYDRAULIC INSTALLATION: 23 1
TB1LA HYDRAULIC HOSE 1 ASSEMBLY: - 2

SAE100R7-06x14 Hydraulic hose 3/8”I.D.x14”lg.,thermoplastic - 2
FC5810-0806 Crimp Fitting SAE 37° JIC swivel (female) - 4

TB1LB HYDRAULIC HOSE 2 ASSEMBLY: - 2

SAE100R7-06x40 Hydraulic hose 3/8”I.D.x40”lg., thermoplastic - 2
SAE070801-8-8 FITTING – bulkhead 45° elbow 1/2”JICx1/2”JIC, brass - 2
SAE070601-8-8 Fitting – Straight Bulkhead ½”JICx ½ ”JIC, brass - 2
