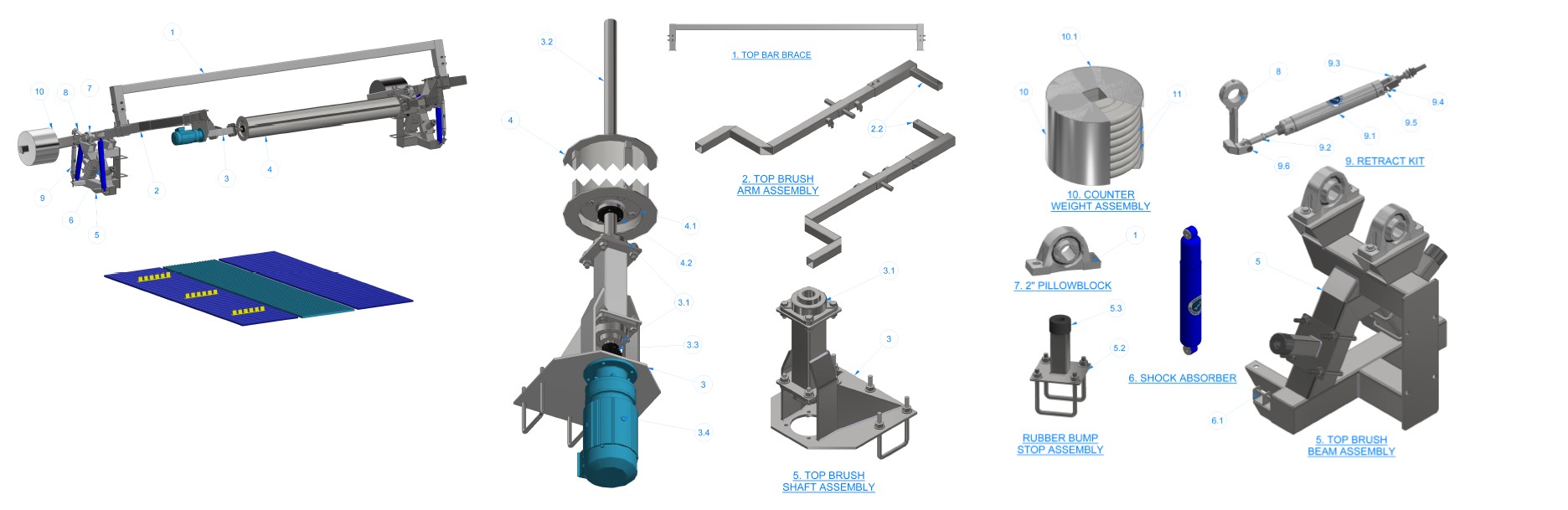

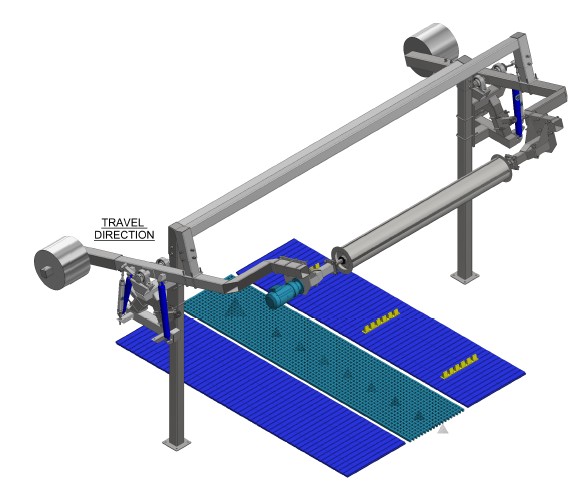

DUAL ARM TOP BRUSH, Model TR

Part#	Description	Diagram Part #	Quantity
TR1D-1-1-2-3328	MOUNTING BRACKET FOR COUNTERWEIGH	2.2	2
TR1HB—??	BRUSH CORE	4
STB-P1X112	SPLIT TAPER BUSHING	4.2
TR1GC	BRUSH CONNECTING DISK (w/welded weld-on hub)	4.1
WA1KCB	4-bolt Bearing 1 ½”	3.1
HHCS1213175	Hex Head Cap Screw ½” – 13 x 1 ¾” lg.	-
FW12100	Flat Washer ½” I.D. x 1” O.D.
SLW12	Split Lock Washer 1/2”
HN1213	HEX NUT 1/2’’
TR1DB0304	BUMPER ASSEMBLY	5	4
SQ-UB050x1500	SQ.U-BOLTS 1/2’’ w/	5.2	8
WA1DBB	Rubber Bumper	5.3	4
WA1DBB-S	UHMW SPACER		2
WA1FA	SHOCK ABSORBER ASSEMBLY:	6	4
WA1FAA	Shock Absorber	-	4
WA1FA1	UHMW Bushing 3/8” I.D.	-	8
TB1AEA	PIN Ø 3/8” x 3” LG.	6.1	4
WA1FC	COLLAR 3/8”	-	4
WA1WB	PILLOW BLOCK 2”	7	4
HHCS1213225	Hex Head Cap Screw ½” – 13 x 2 ¼” LG.	-	8
FW12125	Flat Washer ½”I.D. x 1 ¼” O.D.	-	16
TR1ACF0304	FRONT BRACKET for AIR CYLINDER	8	2
AC2X10	AIR CYLINDER 2”x10”	9.1	2
BJ1-2-20	BALL JOINT ROD END1/2-20	9.2	2
WA2GA	FRONT MOUNT:	9.3	2
WA2GA1	Clevis	-	2
WA2GA2	Threaded rod ½” -13x5”LG.	-	2
WA1GB	Pin 3/8”x1½”lg.	9.4	2
CP3-8	Cotter Pin	9.5	2
WA1GC	Front pin ½” x 2” LG	9.6	2
WA1GD	Collar ½”	-	2
JN1220	JAM NUT	-	2
TR1FH	HOUSING for COUNTERWEIGHT	-	2
TR1F0304-50	COUNTERWEIGHT	-	14
