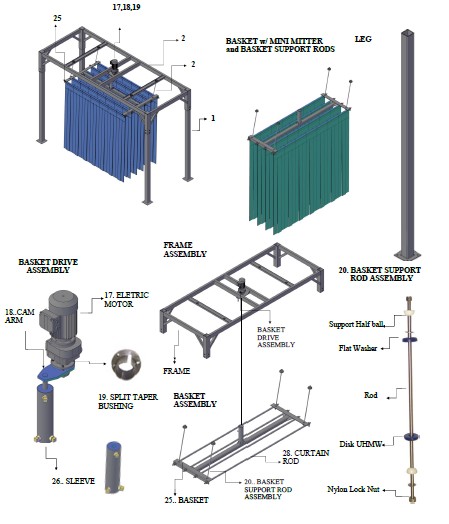

SIDE WASHER w/ MITTER COMBO, Model SC4-EL
SKU Details
| Sku Images | Part# | Description | Diagram Part # | Quantity | ADDTOCARTDETAILSANDPRICE |
|---|---|---|---|---|---|
| SW8K-EL | BRUSH SHAFT ASSEMBLY | - | 2 |
|
|
| SW8KA-EL | Motor Mount | 12 | 2 | ||
| SQHS1213150 | Square Head Screw ½” – 13 x 1½” LG. (for sleeves) | - | 4 | ||
| HHCS3816075 | w/Hex Head Screw | - | 4 | ||
| NLN3816 | Nylon Lock Nuts | - | 4 | ||
|
|
GRMTR1-5HP-81-230-460 | Electric Motor, displacement 11.9{cu.in./rev.} | 13 | 2 | |
| WA1K1 | Torque Plate | - | 2 | ||
|
|
WA5KB | Brush Shaft Æ1 ½” x 10 ½” lg. | 14 | 2 | |
| WA1KCB | 4-bolt Bearing 1 ½” | 15 | 4 | ||
| HHCS1213175 | Hex Head Cap Screw ½” – 13 x 1 ¾” lg. | - | 16 | ||
| FW12100 | Flat Washer ½” I.D. x 1” O.D. | - | 16 | ||
|
|
SLW12 | Split Lock Washer 1/2” | - | 16 | |
|
|
HN1213 | HEX NUT 1/2’’ | - | 16 | |
| SW1M-5X72 | BRUSH ASSEMBLY | 16 | 2 | ||
| SW1L | WATER INSTALLATION: | - | 1set | ||
|
|
WA1LA | Side Water Manifold Assembly (on exit legs): | - | 2 | |
|
|
WA1LAA | Manifold | - | 2 | |
|
|
SAE140109P-8 | Hollow Hex Plug ½” NPTM | - | 2 | |
|
|
BRBPP050x050 | Barb 1/2”x ½” NPTM | - | 2 | |
| NZ1-4 | Nozzle ¼” NPTM | - | 10 | ||
| PPP3-4 | Pipe Clamp ¾”, for Water Manifold (w/screw fasteners ¼”-20) | - | 4 | ||
| MC1A | LEG | - | 4 | ||
| SC4B | FRAME ASSEMBLY: | - | 1 | ||
| MC2BA | FRAME | - | 1 | ||
| MC2BB-1104 | Basket Drive Assembly: | - | 16 | ||
| MC2BBA-P1-1-0615 | Cam Arm (w/welded weld-on hub) | 18 | 1 | ||
| STB-P1X118 | Split Taper Bushing P1 1 1/8” | 19 | 1 | ||
|
|
MC1C | BASKET SUPPORT ROD ASSEMBLY: | - | 4 | |
| MC1C1-102307 | Basket support Rod ½” x 27” lg. | 20 | 4 | ||
|
|
MC1C2 | Basket support Disk UHMW | 21 | 8 | |
|
|
MC1C3 | Basket support Halfball | 22 | 8 | |
| FW12125 | Flat Washer ½”I.D. x 1 ¼” O.D. | 23 | 8 | ||
| NLN 1213 | Nylon Lock Nut 1/2”-13 | 24 | 8 | ||
| MM5D-7 | BASKET ASSEMBLY | - | 1 | ||
| MM4DA-7 | Basket Frame 7’ | 25 | 1 | ||
|
|
MC1DB | Sleeve Assembly | - | 1 | |
|
|
MC1DB1 | Sleeve | 26 | 1 | |
|
|
MC1DB2 | UHMW Bushing 1” I.D. | 27 | 1 | |
| SQHS3816075 | Square Head Screw 3/8”-16x ¾” lg. | - | 3 | ||
| HN3816 | HEX NUTS 3/8’’ | - | 3 | ||
|
|
MC2DC | Curtain Rod Assembly | - | 4 | |
|
|
MC2DCA | Curtain Rod 7’4”lg. | 28 | 4 | |
| MC1DC2-3-4x2x1-8 | Plastic Spacer ¾ ” I.D.x2” O.D. x 3/8” width | 30 | 8 | ||
| PLHN3410 | Plastic Hex Nut ¾”-10 | 31 | 16 | ||
| MC1E | CURTAIN (CLOTH) | - | 35 | ||
| MM5L | HYDRAULIC & WATER INSTALLATION | - | |||
| SAE140109E-8 | Hex Head Plug ½” NPTM (white plastic) | - | 1 |
