FREE STANDING ROCKER PANEL BRUSH 21’’ , Model RB1: DRIVER'S SIDE
SKU Details

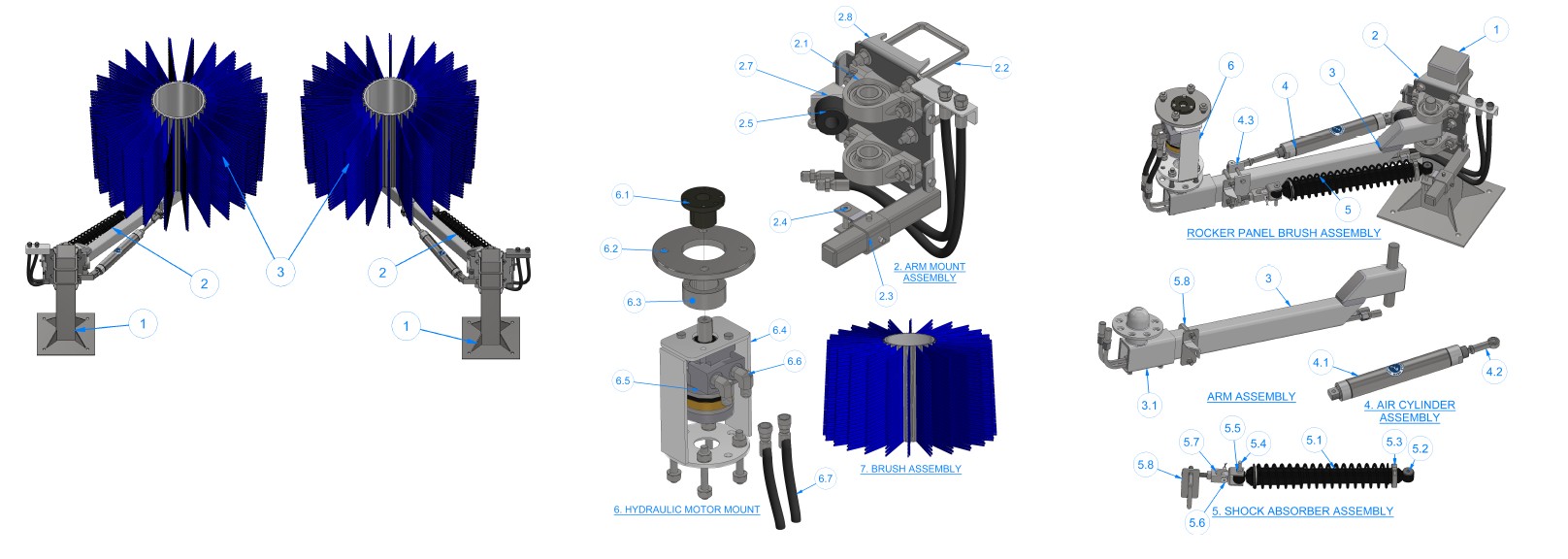

| Sku Images | Part# | Description | Diagram Part # | Quantity | ADDTOCARTDETAILSANDPRICE |
|---|---|---|---|---|---|
| RB1AA | LEG | 1 | 1 | ||
| RB1AY | ARM ASSEMBLY (w/o LEG, w/o BRUSH) | 1 | |||
|
|
RB2AB | ARM MOUNT ASSEMBLY: | 2 | 1 | |
| RB1WB | Pillow Block Bearings (Non Capped) | 2.1 | 2 | ||
| HHCS1213225 | Hex Head Cap Screw ½” – 13 x 2 ¼” LG. | - | 4 | ||
| FW12125 | Flat Washer ½”I.D. x 1 ¼” O.D. | - | 8 | ||
|
|
SLW12 | Split Lock Washer 1/2” | - | 4 | |
|
|
HN1213 | HEX NUT 1/2’’ | - | 4 | |
| RB2ABB | Square U-Bolt Fastener set 1/2’’ | - | 2 | ||
| RB2ABB1 | Square U-Bolt 1/2’’x17’’lg | 2.2 | 2 | ||
| RB1ABAM | Moveable Rear Shock Mount | 2.3 | 1 | ||
| TB1AEA | PIN Ø 3/8” x 3” LG. | 2.4 | 1 | ||
|
|
WA1DBB | Rubber Bumper | 2.5 | 1 | |
| HHCS3816125 | Hex Head Cap Screw 3/8” – 16 x 1 ¼” LG | - | 1 | ||
| FW380875 | Flat Washer 3/8”I.D.x7/8”O.D. | - | 1 | ||
| HN3816 | HEX NUTS 3/8’’ | - | 1 | ||
|
|
RB1AC-0308 | Bumper Mount | 2.7 | 1 | |
| RB1ACA-0308 | Hex Head Cap Screw 3/8”-16x1¼”lg. | - | 1 | ||
| SQHS3816100 | Square Head Screw 3/8”-16x1”lg. | - | 1 | ||
|
|
RB1BBA | Arm Mount | 2.8 | 1 | |
| RB1D | Rocker Brush Arm Assembly | - | 1 |
|
|
| RB1ADx36 | ARM | 3 | 1 | ||
| CB1ADAS | Removable Sleeve for Motor Mount | 3.1 | 1 | ||
|
|
AC2X10 | AIR CYLINDER 2”x10” | 4.1 | 1 | |
| RB2AFB1 | Aluminum adjuster (2-piece collar) | - | 1 | ||
| HHCS1420125 | Hex head cap screw ¼” -20 x 1¼”LG. | - | 1 | ||
| HN1420 | Hex nut ¼ ”-20 | - | 2 | ||
| RB1AFC | Plastic spacer | - | 2 | ||
|
|
WA1FC | COLLAR 3/8” | - | 2 | |
|
|
WA2GA | FRONT MOUNT: | 4.3 | 1 | |
| WA2GA1 | Clevis | - | 1 | ||
| WA2GA2 | Threaded rod ½” -13x5”LG. | - | 1 | ||
| WA1GB | Pin 3/8”x1½”lg. | - | 1 | ||
|
|
RB1AGA | Shock mount | - | 1 | |
|
|
RB1AF | SHOCK ABSORBER ASSEMBLY | 5 | 1 | |
| RB1AFA | SPRING SHOCK ABSORBER | 5.1 | 1 | ||
| RB1AFA1 | UHMW bushing 3/8”I.D | 5.2 | 2 | ||
| RB2AFB | Spring adjuster assembly (aluminum 2-piece collar): | - | 1 | ||
| RB1AG | FRONT MOUNT: | 5.7 | 1 | ||
| RB1ADB2-0117 | SHOCK FRONT BRACKET | 5.8 | 1 | ||
| RB1AE | BRUSH DRIVE LOWER ASSEMBLY | 6 | 1 | ||
|
|
RB1AEA | MOTOR MOUNT ( 8’’ LG ) | 6.1 | 1 | |
| HHCS1213300 | Hex Head Cap Screw ½” -13x3”lg. | - | 4 | ||
| TB1ADBM | HYDRAULIC MOTOR , displacement 5.0 [cu.in./rev.] | 6.2 | 1 | ||
| EL90STL050JIC050NPTF | Straight Fitting ½” NPTM x ½ ” JIC | 6.3 | 2 | ||
| HHCS3816075 | w/Hex Head Screw | - | 4 | ||
|
|
STB-P1X100 | Split Taper Bushing P1 1” | 6.4 | 1 | |
| SSS1420050C | SPLIT TAPER BUSHING 1” | - | 2 | ||
|
|
RB2AEB-P1-1-0106 | (set w/two socket set screws ¼ ”-20x ½ ”lg., carbon steel) | 6.5 | 1 | |
| MC2BBA3-P1-1-01061 | welded weld-on hub | - | 1 | ||
| HHCS1213125 | Hex Head Screw 3/8’’-16x2’’Lg (Fully threaded, for pillow block adjusted) | - | 4 | ||
| RB1AM | BRUSH 28” ASSEMBLY: | 7 | 1 | ||
| RB1AMA | Brush Cloth | - | 1 | ||
| RB1AMC | Aluminum Extrusion | - | 2 | ||
| RB1AMB | Two-piece Collar 1½”x12 core | - | 2 | ||
| RB1LD | HYDRAULIC INSTALLATION: | - | 1 | ||
| RB1LDA | Hydraulic Tube Assembly: | - | 2 | ||
| RB1LDA1x36 | Hydraulic Tube 1/2”O.D.xW.035”, stainless steel | - | 2 | ||
| SAE070115-8 | Tube support sleeves ½” JIC | - | 4 | ||
| SAE070110-8 | Nuts ½” JIC | - | 4 | ||
| RB1LTC1-2 | Tube Clamp ½ ” | - | 2 | ||
| RB1LDB | Hydraulic Hose assembly: | - | 2 | ||
| SAE100R7-06 | Hydraulic Hose 3/8”I.D.x4-3/8”lg., thermoplastic | - | 2 | ||
| FC5810-0806 | Crimp Fitting SAE 37° JIC swivel (female) | - | 4 | ||
| RB1LDD | Hydraulic Hose Assembly; | - | 2 | ||
| SAE100R7-06x19/20 | Hydraulic Hose 3/8”I.D.x19/20”lg., thermoplastic | - | 2 | ||
| FC5807-0806 | Crimp Fitting SAE 37° JIC male flare | - | 2 | ||
| SAE070601-8-8 | Fitting – Straight Bulkhead ½”JICx ½ ”JIC, brass | - | 2 |
