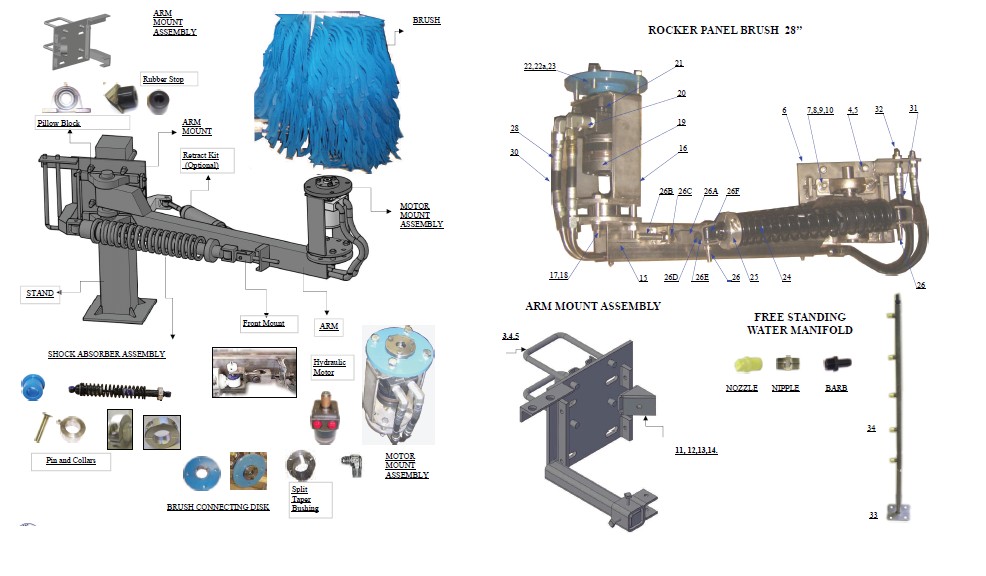

FREE STANDING ROCKER PANEL BRUSH 28’’, Model RB1-28: PASSENGER'S SIDE




SKU Details



Sku Images Part# Description Diagram Part # Quantity ADDTOCARTDETAILSANDPRICE
RB1B ROCKER PANEL BRUSH SIDE - 1
RB1AA LEG 1 1

RB2BB-0308 ARM MOUNT ASSEMBLY: - 1
RB2ABB Square U-Bolt Fastener set 1/2’’ - 2

RB2ABB1 Square U-Bolt 1/2’’x17’’lg 3 2
SLW1/2 Split Lock Washer 4 4
HN1213 HEX NUT 1/2’’ 5 4

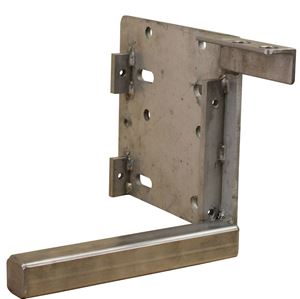

RB1ABA Arm Mount 6 1

RB1ABAA Arm Mount - 1

RB1ABAM Moveable Rear Shock Mount - 1

RB1WB Pillow Block Bearings (Non Capped) 7 2
HHCS1213225 Hex Head Cap Screw ½” – 13 x 2 ¼” LG. 8 4

FW12125 Flat Washer ½”I.D. x 1 ¼” O.D. 10 4

RB1BC-0308 BUMPER ASSEMBLY: - 1
RB1BCA-0308 Bumper Mount 11 1
HHCS3816125 Hex Head Cap Screw 3/8” – 16 x 1 ¼” LG - 1

HN3816 HEX NUTS 3/8’’ - 1

SQHS3816100 Square Head Screw 3/8”-16x1”lg. - 1

WA1DBB Rubber Bumper 12 1

FW38087 Flat Washer 3/8” I.D. x 7/8” O.D 13 1
RB1ADx36 ARM 15 1
RB1AE BRUSH DRIVE LOWER ASSEMBLY - 1

RB1AEA MOTOR MOUNT ( 8’’ LG ) - 1

HHCS1213300 Hex Head Cap Screw ½” -13x3”lg. 16 4

TB1ADBM HYDRAULIC MOTOR , displacement 5.0 [cu.in./rev.] 19 1
SAE070202-8-8 Fitting 90° elbow ½” NPTM x ½” JIC 20 2
HHCS3816075 w/Hex Head Screw 21 4

P1 1” (0106) Split Taper Bushing 1” 22A 1
SSS1420050C SPLIT TAPER BUSHING 1” - 2

RB2AEB-P1-1-0106 (set w/two socket set screws ¼ ”-20x ½ ”lg., carbon steel) 22 1

MC2BBA3-P1-1-0106 welded weld-on hub - 1
HHCS1213125 Hex Head Screw 3/8’’-16x2’’Lg (Fully threaded, for pillow block adjusted) - 4

RB1AF SHOCK ABSORBER ASSEMBLY - 1

RB1AFA SPRING SHOCK ABSORBER 24 1
RB1AFA1 UHMW bushing 3/8”I.D - 2

RB2AFB Spring adjuster assembly (aluminum 2-piece collar): 25 1

RB2AFB1 Aluminum adjuster (2-piece collar) - 1

HHCS1420125 Hex head cap screw ¼” -20 x 1¼”LG. - 2

HN1420 Hex nut ¼ ”-20 - 2

RB1AFC Plastic spacer - 1

TB1AEA PIN Ø 3/8” x 3” LG. 26 2

WA1FC COLLAR 3/8” - 2

RB1AG FRONT MOUNT: - 1

WA2GA1 Clevis 26A 1

WA2GA2 Threaded rod ½” -13x5”LG. 26B 1

WA1GB Pin 3/8”x1½”lg. 26D 1

RB1AGA Shock mount 26F 1

RB1AM BRUSH 28” ASSEMBLY: 27 1
RB1AMA-15 Brush Cloth - 1
RB1AMC Aluminum Extrusion - 2
RB1AMB Two-piece Collar 1½”x12 core - 2
RB1LP HYDRAULIC INSTALLATION: - 1

RB1LPA Hydraulic Tube Assembly: 28 2

RB1LDA1x33 Hydraulic Tube 1/2”O.D.xW.035”, stainless steel - 2
SAE070115-8 Tube support sleeves ½” JIC - 4
SAE070110-8 Nuts ½” JIC - 4
RB1LTC1/2 Tube Clamp ½ ” - 2
RB1LDB Hydraulic Hose assembly: 30 2

SAE100R7-06x4-3/8 Hydraulic Hose 3/8”I.D.x4-3/8”lg., thermoplastic - 2
FC5810-0806 Crimp Fitting SAE 37° JIC swivel (female) - 4

RB1LDD Hydraulic Hose Assembly; 31 2

SAE100R7-06x19/20 Hydraulic Hose 3/8”I.D.x19/20”lg., thermoplastic - 2
FC5807-0806 Crimp Fitting SAE 37° JIC male flare - 2

SAE070601-8-8 Fitting – Straight Bulkhead ½”JICx ½ ”JIC, brass 32 2
