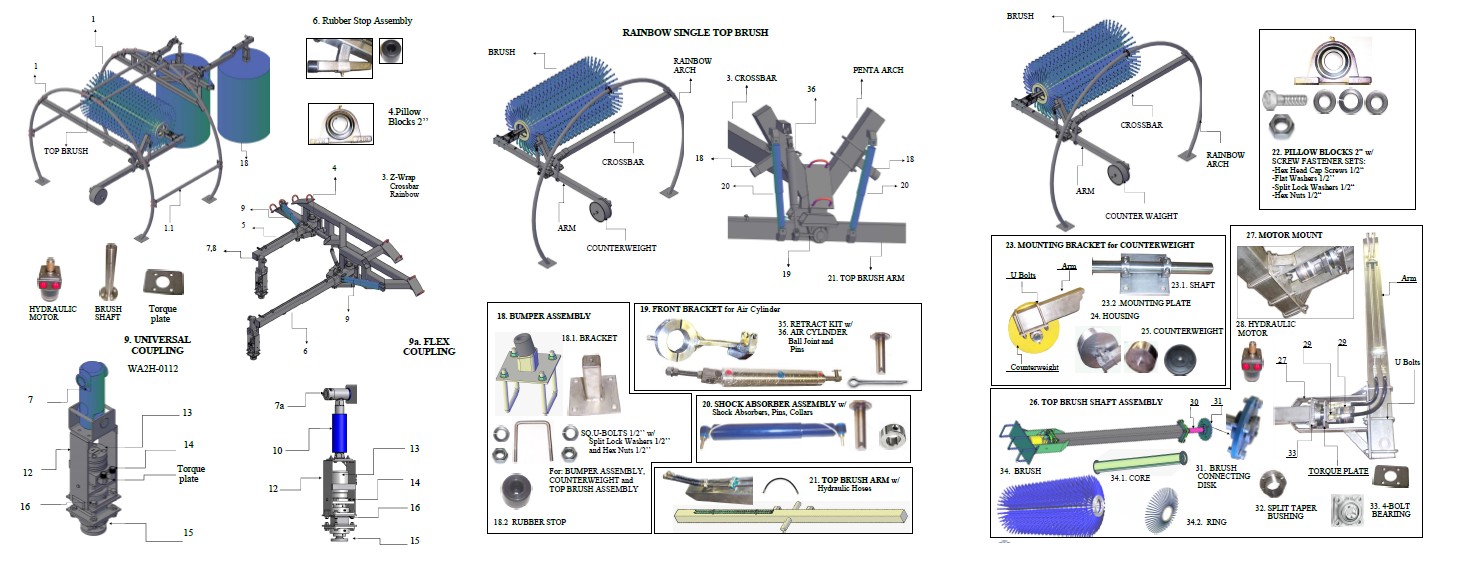

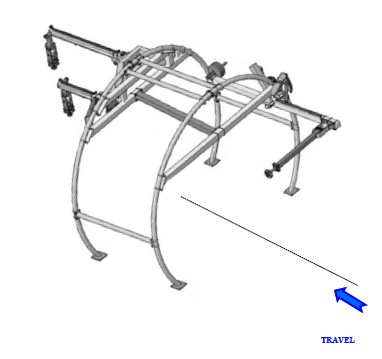

RAINBOW WRAP w/TOP BRUSH - Model: R-WTR1105
SKU Details
| Sku Images | Part# | Description | Diagram Part # | Quantity | ADDTOCARTDETAILSANDPRICE |
|---|---|---|---|---|---|
| R-AA0 | RAINBOW ARCH—2-1/2’’ | 1 | 2 |
|
|
| HHCS12131050 | Hex Head Cap Screw 1/2”-13x1-1/2” LG | 8 | |||
| FW12125 | Flat Washer ½”I.D. x 1 ¼” O.D. | 16 | |||
| SLW1/2 | Split Lock Washer | 8 | |||
|
|
HN1213 | HEX NUT 1/2’’ | 8 | ||
| UB-R050x300x1050 | w/ 3’’ ROUND U BOLTS (1/2’’ SIZE) | 14 | |||
| HBB-21SCH40-92 | HORIZONTAL BRACE BARS | 1.1 | 4 | ||
| R-WA1C | RAINBOW Z WRAP | 2 | |||
| R-TR1B | CROSSBAR w/ PENTA ARCH | 3 | 1 |
|
|
| SQHS1213150 | Square Head Screw ½” – 13 x 1½” LG. (for sleeves) | 8 | |||
| WA1WB | PILLOW BLOCK 2” | 4 | 4 | ||
| HHCS1213225 | Hex Head Cap Screw ½” – 13 x 2 ¼” LG. | - | 8 | ||
| R-WA1D | DRIVER SIDE ARM ASSEMBLY: | - | 1 | ||
| R-WA1DA | Driver side arm 46” LG. | 5 | 1 | ||
| WA1D 2073 | Step Up Arm (OPTION) | 1 | |||
|
|
WA1DB | Rubber Stop Arm Assembly | - | 1 | |
| WA1DBA | Stop Arm | - | 1 | ||
|
|
WA1DBB | Rubber Bumper | - | 1 | |
| HHCS3816125 | Hex Head Cap Screw 3/8” – 16 x 1 ¼” LG | - | 1 | ||
| FW38087 | Flat Washer 3/8” I.D. x 7/8” O.D | - | 1 | ||
| HN3816 | HEX NUTS 3/8’’ | - | 1 | ||
| SQHS3816075 | Square Head Screw 3/8”-16x ¾” lg. | - | 2 | ||
|
|
WA1E | PASSENGER SIDE ARM ASSEMBLY: | - | 1 | |
|
|
WA1EA | Passenger Side Arm 76” LG | 6 | 1 | |
| WA1E 2073 | -Step Up Arm (OPTION | 1 | |||
| WA11 | PLASTIC SPACER | 7 | 2 | ||
| WA2J-2P | 2-PIECE COLLAR 1-1/2’’ | 7a | 2 | ||
|
|
WA1FA | SHOCK ABSORBER ASSEMBLY: | 8 | 2 | |
| WA1FAA | Shock Absorber | - | 4 | ||
|
|
WA1FA1 | UHMW Bushing 3/8” I.D. | - | 8 | |
| WA1FB | PIN Æ3/8” x 6” LG. | - | 4 | ||
|
|
WA1FC | COLLAR 3/8” | - | 4 | |
| WA1G | RETRACT KIT | - | 1set | ||
| WA2H-0112 | UNIVERSAL COUPLING ASSEMBLY | 9 | 2 | ||
| WA2HA-0112 | UHMW Flex Coupling | - | 2 | ||
| WA1H2 | UHMW Bushing 1 ½” I.D. | - | 2 | ||
| WA2HC | Mounting Channel | - | 2 | ||
| WA2HD | Shaft 1 ½” x6 ¼” LG | - | 2 | ||
| WA1J | Collar 1 ½”I.D. x 2 ½’’ O.D. x 7/8” width | - | 4 | ||
| WA1H | FLEX COUPLING ASSEMBLY (optional) | 9A | 2 | ||
| WA1HA | Welded Flex Coupling | - | 2 | ||
| WA1HB | Wrap Cam ¾” I.D. | - | 2 | ||
| WA1H1 | UHMW Sleeve | - | 2 | ||
| HHCS3816075 | w/Hex Head Screw | - | 8 | ||
| WA5K | WRAP AROUND SHAFT ASSEMBLY | - | 2 | ||
|
|
WA5KA | Motor Mount | 11 | 2 | |
| NLN3816 | Nylon Lock Nuts | - | 4 | ||
|
|
WA1KM | Hydraulic Motor, displacement 11.9 [cu.in./rev.] | 12 | 2 | |
| SAE070202-8-8 | Fitting 90° elbow ½” NPTM x ½” JIC | 13 | 4 | ||
| WA1K1 | Torque Plate | - | 2 | ||
|
|
WA5KB | Brush Shaft Æ1 ½” x 10 ½” lg. | 14 | 2 | |
| WA1KCB | 4-bolt Bearing 1 ½” | 15 | 4 | ||
| HHCS1213175 | Hex Head Cap Screw ½” – 13 x 1 ¾” lg. | - | 16 | ||
| FW12100 | Flat Washer ½” I.D. x 1” O.D. | - | 16 | ||
| WA1M-5/10x72 | BRUSH ASSEMBLY (design: 5” core, 72”lg.) | 17 | 1set | ||
| WC3L | HYDRAULIC & WATER INSTALLATION | - | - | ||
|
|
WA1LA | Side Water Manifold Assembly (on exit legs): | - | 2 | |
|
|
WA1LAA | Manifold | - | 2 | |
|
|
SAE140109P-8 | Hollow Hex Plug ½” NPTM | - | 2 | |
| BRB1/2x1/2 | Barb ½” x ½” NPTM | - | 2 | ||
| NZ1/4 | Nozzle ¼” NPTM | - | 8 | ||
| SAE140438-8-8 | Female Pipe Tee ½” NPTF | - | 2 | ||
| PPP3/4 | Pipe Clamp ¾”, for water hose and side water manifolds (w/screw fasteners ¼”) | - | 10 | ||
| MC1BC-S | Top Water Manifold assembly | - | 2 | ||
| MC1BCA-S | Top water manifold (tubing 1” O.D. x 34” lg. w/4 water outlets, 10” apart one from another | - | 2 | ||
| SAE140409P-8 | Hollow Hex Plug ½” NPTM | - | 2 | ||
| SAE070115-8 | Tube support sleeves ½” JIC | - | |||
| SAE070110-8 | Nuts ½” JIC | - | |||
| WA1LB | Hydraulic hose assembly: | - | 8 | ||
| SAE100R7-06x34 | Hydraulic Hose 3/8” I.D. x 34” lg., thermoplastic | - | 8 | ||
| FC5810-0806 | Crimp Fitting SAE 37° JIC swivel (female) | - | 4 | ||
| FC5807-0806 | Crimp Fitting SAE 37° JIC male flare | - | 12 | ||
| DMP1/2 | Damping Clamp ½”, for hydraulic tubes (w/screw fasteners ¼”) | - | 11 | ||
| TR1DB0304 | BUMPER ASSEMBLY | 18 | 2 | ||
| SQ-UB050x1500 | SQ.U-BOLTS 1/2’’ w/ | 4 | |||
|
|

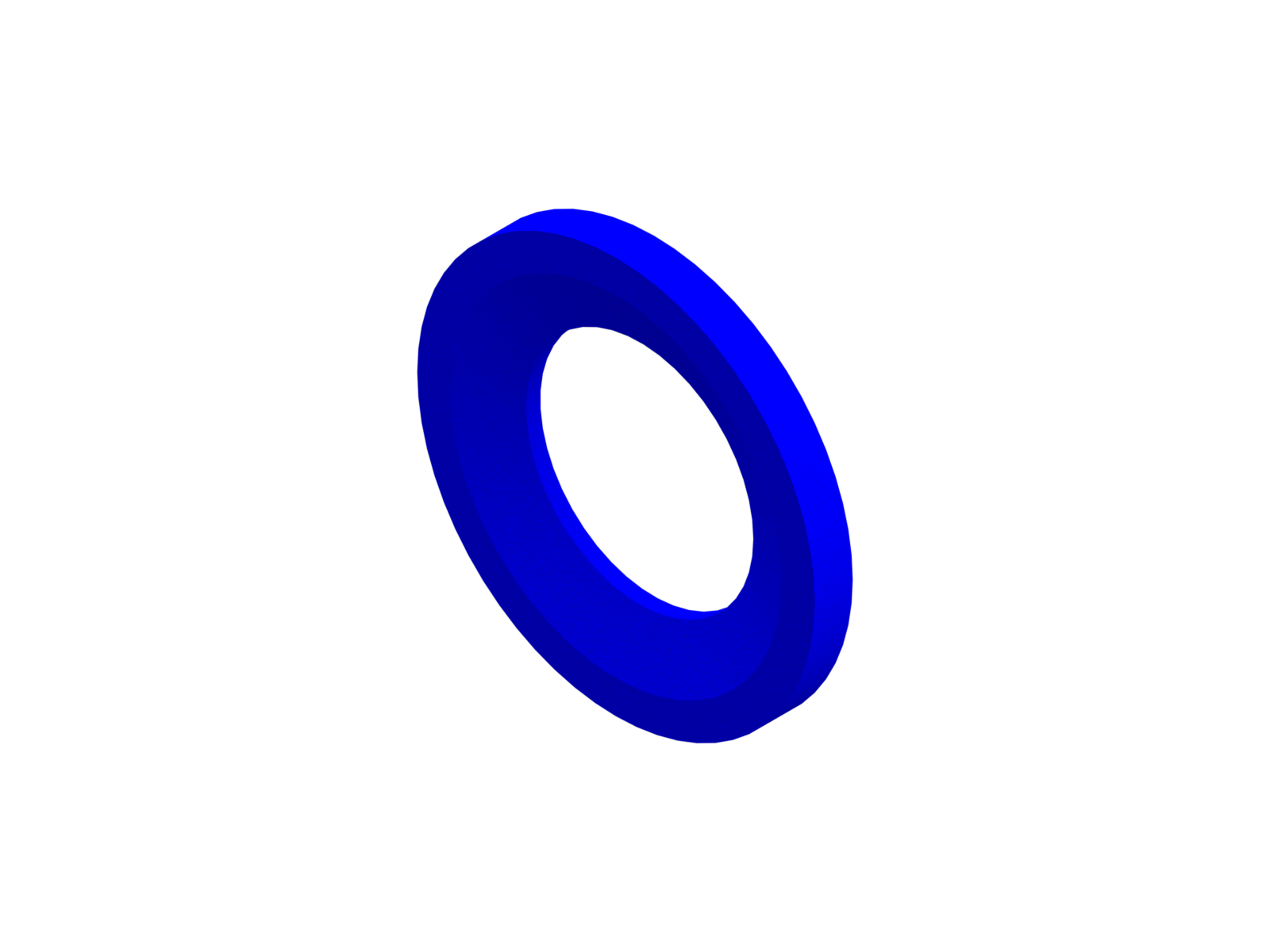

WA1DBB-S | UHMW SPACER | 18.3 | 2 | |
|
|

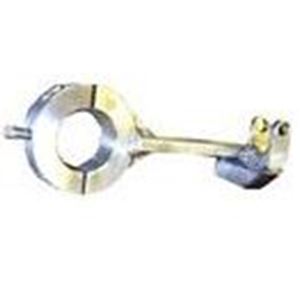

TR1ACF0304 | FRONT BRACKET for AIR CYLINDER | 19 | 1 | |
| TB1AEA | PIN Ø 3/8” x 3” LG. | 20.3 | 4 | ||
| TR1SAF0304 | FRONT MOUNT for SHOCK ABSORBER | 20.5 | 2 | ||
| TR1C0304 –108 | TOP BRUSH ARM 108” w/ | 21 | 1 | ||
| TR1D-1-1/2 | MOUNTING BRACKET for COUNTERWEIGHT | 23 | 1 | ||
| TR1D1-1-1/2 | SHAFT for Counterweight 11/2 ” | 23.1 | 1 | ||
| TR1DA | MOUNTING PLATE | 23.2 | 1 | ||
| R1FH | HOUSING for COUNTERWEIGHT | 24 | 1 | ||
| TR1F0304 | COUNTERWEIGHT | 25 | 10 | ||
|
|

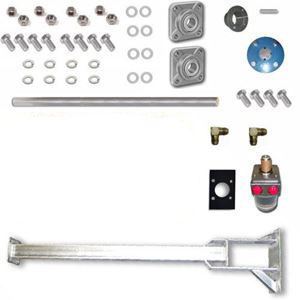

TR1G | TOP BRUSH SHAFT ASSEMBLY: | 26 | 1 | |
|
|

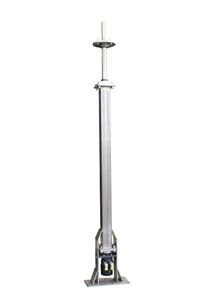

TR1GA | MOTOR MOUNT | 27 | 1 | |
| TB1ADBM | HYDRAULIC MOTOR , displacement 5.0 [cu.in./rev.] | 28 | 1 | ||
| TR1GB | BRUSH SHAFT 1 ½” x 60” LG. | 30 | 1 | ||
|
|
TR1GC | BRUSH CONNECTING DISK (w/welded weld-on hub) | 31 | 1 | |
| P1-1½ | SPLIT TAPER BUSHING 1½” | 32 | 1 | ||
| TR1H | FOAMED BRUSH (Foam Aid 60” dia. x 82”lg.) w/ | 34 | 1SET | ||
| TR1HB | CORE | 34.1 | 1 | ||
| TR1HA | RING | 34.2 | 70 |
