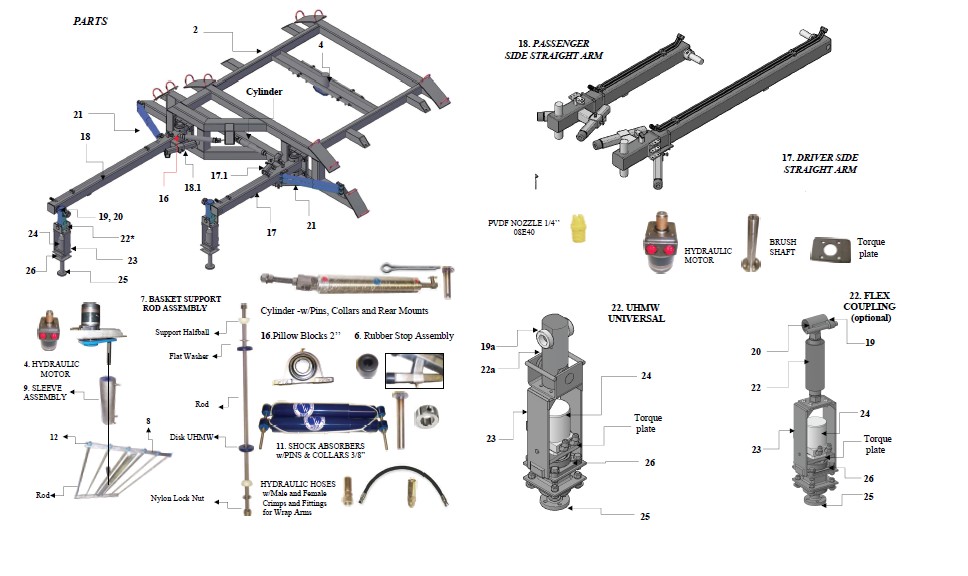

Sku Images | Part# | Description | Diagram Part # | Quantity | ADDTOCARTDETAILSANDPRICE |
---|---|---|---|---|---|
R-AA0 | RAINBOW ARCH—2-1/2’’ | 1 | 4 |
|
|
HHCS12131050 | Hex Head Cap Screw 1/2”-13x1-1/2” LG | - | 8 | ||
FW12125 | Flat Washer ½”I.D. x 1 ¼” O.D. | - | 8 | ||
SLW12 | Split Lock Washer 1/2” | - | 8 | ||
HN1213 | HEX NUT 1/2’’ | - | 8 | ||
HBB-21SCH40-60 | HORIZONTAL BRACE BARS | 1.1 | 4 | ||
UB-R050x300x1050 | w/ 3’’ ROUND U BOLTS (1/2’’ SIZE) | - | 40 | ||
R-WC3B | FRAME ASSEMBLY: | - | 1 | ||
R-WC3BA | Frame | 2 | 1 | ||
SQHS1213150 | Square Head Screw ½” – 13 x 1½” LG. (for sleeves) | 3 | 16 | ||
HHCS3816200F | Hex Head Cap Screw 3/8’’-16x2’’LG | - | 8 | ||
MC2BB-1104 | Basket Drive Assembly: | - | 1 | ||
WA1KM | Hydraulic Motor, displacement 11.9 [cu.in./rev.] | 4 | 1 | ||
EL90STL050JIC050NPTF | Straight Fitting ½” NPTM x ½ ” JIC | - | |||
MC2BBA-P1-0615 | Cam Arm (w/welded weld-on hub) | 5 | 2 | ||
STB-P1X100 | Split Taper Bushing P1 1” | 6 | 1 | ||
HHCS3816075 | w/Hex Head Screw | - | 4 | ||
MC1C | BASKET SUPPORT ROD ASSEMBLY: | 7 | 4 | ||
MC1C1-102307 | Basket support Rod ½” x 27” lg. | - | 4 | ||
MC1C2 | Basket support Disk UHMW | - | 8 | ||
MC1C3 | Basket support Halfball | - | 8 | ||
NLN1213 | Nylon Lock Nut ½”-13 | - | 8 | ||
MC2D | BASKET DRIVE ASSEMBLY: | - | 1 | ||
MC2DA | Basket Frame 7’ | 8 | 1 | ||
MC1DB | Sleeve Assembly | - | 1 | ||
MC1DB1 | Sleeve | 9 | 1 | ||
MC1DB2 | UHMW Bushing 1” I.D. | - | 1 | ||
SQHS3816075 | Square Head Screw 3/8”-16x ¾” lg. | 10 | 3 | ||
HN3816 | HEX NUTS 3/8’’ | - | 3 | ||
MC2DC | Curtain Rod Assembly | 11 | 6 | ||
MC2DCA | Curtain Rod 7’4”lg. | - | 6 | ||
MC1DC2-3-4x2x1-8 | Plastic Spacer ¾ ” I.D.x2” O.D. x 3/8” width | 12 | 12 | ||
PLHN3410 | Plastic Hex Nut ¾”-10 | - | 24 | ||
MC1E | CURTAIN (CLOTH) | 14 | 42 | ||
MC2L | HYDRAULIC & WATER INSTALLATION | - |
|
||
WA1LA | Side Water Manifold Assembly (on exit legs): | - | 2 | ||
WA1LAA | Manifold | - | 2 | ||
SAE140109E-8 | Hex Head Plug ½” NPTM (white plastic) | - | 2 | ||
BRBPP050x050 | Barb 1/2”x ½” NPTM | - | 2 | ||
NZ14 | Nozzle ¼” NPTM | - | 10 | ||
PPP3-4 | Pipe Clamp ¾”, for Water Manifold (w/screw fasteners ¼”-20) | - | 4 | ||
SAE010115-8 | Tube Support Sleeves ½” JIC | - | 8 | ||
SAE070110-8 | Nuts ½” JIC | - | 8 | ||
DMP1-2 | Damping Clamp ½”, for hydraulic tubes (w/screw fasteners ¼”-20) | - | 10 | ||
WA1WB | PILLOW BLOCK 2” | 16 | 4 | ||
HHCS1213225 | Hex Head Cap Screw ½” – 13 x 2 ¼” LG. | - | 8 | ||
WA1D | DRIVER SIDE ARM ASSEMBLY: | - | 1 | ||
WA1DA | Driver Side Arm 48”lg. | 17 | 1 | ||
WA1DB | Rubber Stop Arm Assembly | 17.1 | 2 | ||
WA1DBA | Stop Arm | - | 2 | ||
WA1DBB | Rubber Bumper | - | 2 | ||
HHCS3816125 | Hex Head Cap Screw 3/8” – 16 x 1 ¼” LG | - | 2 | ||
FW380875 | Flat Washer 3/8”I.D.x7/8”O.D. | - | 2 | ||
WA3DB-2639 | ADJUSTABLE LOWER RUBBER STOP ARM (OPTION) | - | 1 | ||
WA1E | PASSENGER SIDE ARM ASSEMBLY: | - | 1 | ||
WA1EA | Passenger Side Arm 76” LG | 18 | 1 | ||
WA11 | PLASTIC SPACER | 19 | 2 | ||
WA11-0112 | PLASTIC SPACER ( for UNIVERSAL COUPLING) | 19a | 2 | ||
WA2J-2P | 2-PIECE COLLAR 1-1/2’’ | 20 | 2 | ||
WA1FA | SHOCK ABSORBER ASSEMBLY: | 21 | 2 | ||
WA1FAA | Shock Absorber | - | 2 | ||
WA1FA1 | UHMW Bushing 3/8” I.D. | - | 4 | ||
WA1FB | PIN Æ3/8” x 6” LG. | a | 4 | ||
WA1FC | COLLAR 3/8” | - | 4 | ||
WA2H-0210 | UNIVERSAL COUPLING ASSEMBLY | 22 | 2 | ||
WA2HA-0210 | UHMW Coupling | - | 2 | ||
WA1H2 | UHMW Bushing 1 ½” I.D. | - | 2 | ||
WA2HC | Mounting Channel | - | 2 | ||
WA2HD | Shaft 1 ½” x6 ¼” LG | - | 2 | ||
WA1J | Collar 1 ½”I.D. x 2 ½’’ O.D. x 7/8” width | - | 2 | ||
WA1H | FLEX COUPLING ASSEMBLY (optional) | 22A | 2 | ||
WA1HA | Welded Flex Coupling | - | 2 | ||
WA1HB | Wrap Cam ¾” I.D. | - | 2 | ||
WA1H1 | UHMW Sleeve | - | 2 | ||
FW38087 | Flat Washer 3/8” I.D. x 7/8” O.D | - | 8 | ||
WA5K | WRAP AROUND SHAFT ASSEMBLY | - | 2 | ||
WA5KA | Motor Mount | 23 | 2 | ||
NLN3816 | Nylon Lock Nuts | - | 4 | ||
WA1K1 | Torque Plate | - | 2 | ||
WA5KB | Brush Shaft Æ1 ½” x 10 ½” lg. | 25 | 2 | ||
WA1KCB | 4-bolt Bearing 1 ½” | 26 | 4 | ||
HHCS1213175 | Hex Head Cap Screw ½” – 13 x 1 ¾” lg. | - | 16 | ||
FW12100 | Flat Washer ½” I.D. x 1” O.D. | - | 16 | ||
WA1M-5/10x72 | BRUSH ASSEMBLY (design: 5” core, 72”lg.) | 27 | 2 | ||
WA1L | HYDRAULIC & WATER INSTALLATION | - | - | ||
SAE140109P-8 | Hollow Hex Plug ½” NPTM | - | 2 | ||
NZ1-4 | Nozzle ¼” NPTM | - | 10 | ||
WA1LHT | Hydraulic tube assemblies: | - | |||
WA1LHTA-CB | Hydraulic Tube Assembly, 1/2"OD x (3) Lengths-34", 60", and9 0" - Cross Bar | - | |||
WA1LHTA-DS | Hydraulic Tube Assembly,1/2"OD x 34"LG, SS - Driver Side | - | 2 | ||
WA1LHTA-PS | Hydraulic Tube Assembly, 1/2" x 64"LG, SS - Passenger Side | - | 2 | ||
SAE070115-8 | Tube support sleeves ½” JIC | - | |||
DMP12 | UHMW DAMPING CLAMP 1/2“, | - | 8 | ||
WA1LB | Hydraulic hose assembly: | - | 8 | ||
SAE100R7-06x34 | Hydraulic Hose 3/8” I.D. x 34” lg., thermoplastic | - | 8 | ||
FC5810-0806 | Crimp Fitting SAE 37° JIC swivel (female) | - | 4 | ||
(10655-8-6) | Catching Fluidpower-“Parker | - | (4) | ||
FC5807-0806 | Crimp Fitting SAE 37° JIC male flare | - | 12 | ||
(10355-8-6) | Catching Fluidpower-“Par | - | (12) |
