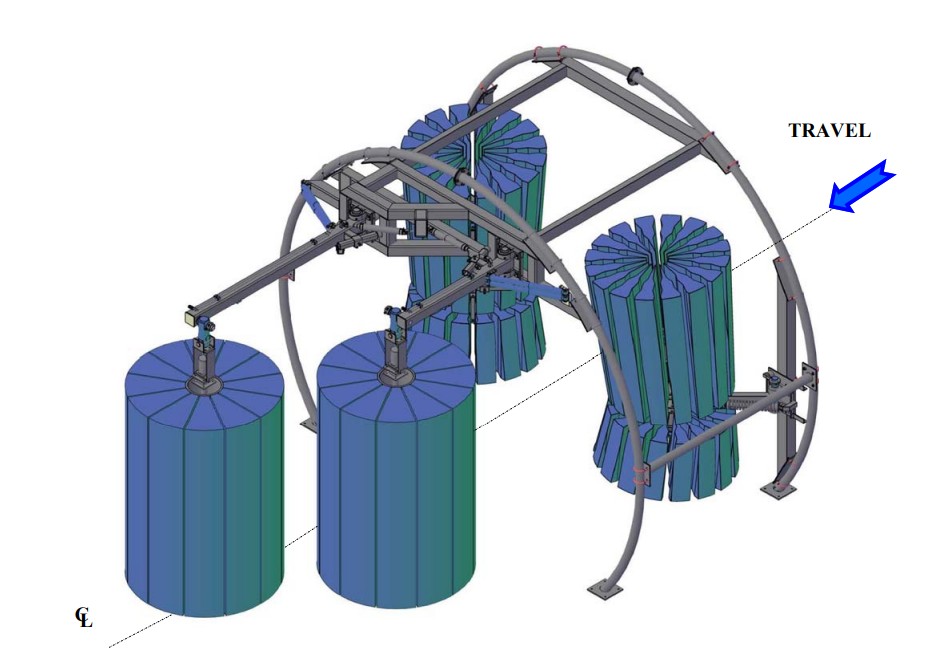

RAINBOW WRAP CONTOUR COMBO, Model R–WACB405


RAINBOW WRAP CONTOUR COMBO, Model R–WACB405

SKU Details

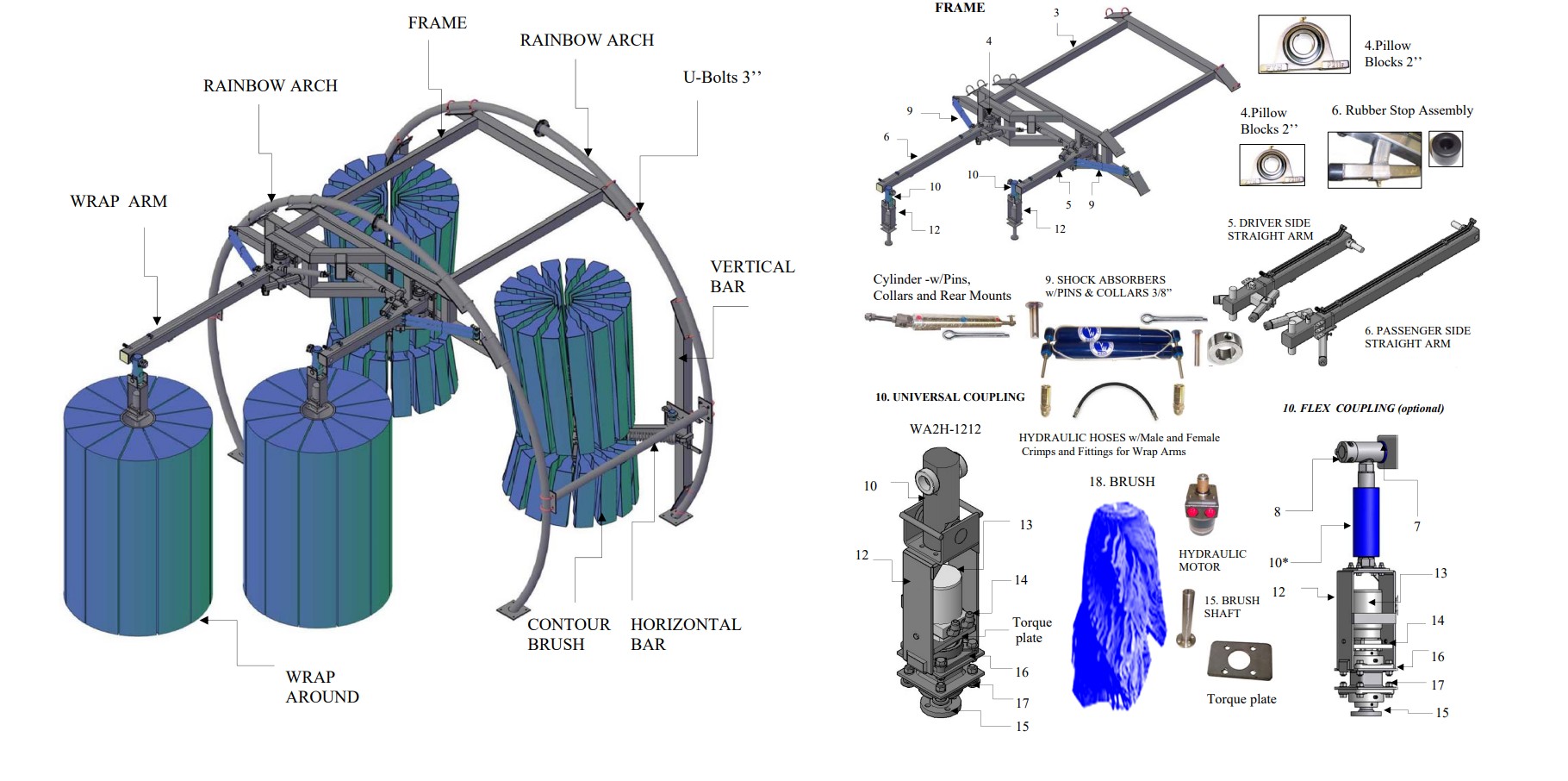

Sku Images Part# Description Diagram Part # Quantity ADDTOCARTDETAILSANDPRICE
R-AA0 RAINBOW ARCH—2-1/2’’ 1 2
HHCS12131050 Hex Head Cap Screw 1/2”-13x1-1/2” LG 8
FW12125 Flat Washer 1/2”I.D.x1-1/4”O.D. 16
SLW1/2 Split lock washer 8
HN1213 Hex nut 1/2”-13 8
UB-R050x300x1050 w/ 3’’ ROUND U BOLTS (1/2’’ SIZE) (For Frame and for Horizontal Bars) 1.1 12
HBB-21SCH40-74 HORIZONTAL BRACE BARS 2 2
R-WCB0405B FRAME ASSEMBLY: - 1
R-WCB0405BA Frame 3 1
SQHS1213125 Square Head Screw ½” – 13 x 1 ¼” lg. (for sleeves) - 16
HHCS3816200F Hex Head Cap Screw 3/8”– 16 x 2” lg. - 8
WA1WB PILLOW BLOCK 2” 4 4
HHCS1213225 Hex Head Cap Screw ½” – 13 x 2 ¼” LG. - 8

WA1D DRIVER SIDE ARM ASSEMBLY: - 1

WA1DA Driver Side Arm 48”lg. 5 1
WA1DB Rubber Stop Arm Assembly - 1

WA1DBA Stop Arm - 1
WA1DBB Rubber Bumper - 1

HHCS3816125 Hex Head Cap Screw 3/8” – 16 x 1 ¼” LG - 1

FW38087 Flat Washer 3/8”I.D.x7/8”O.D. - 1
HN3816 Hex nut 3/8”-16 - 1
SQHS3816075 Square head screw 3/8”-16x ¾” lg. - 2
WA1E PASSENGER SIDE ARM ASSEMBLY: - 1

WA1EA Driver Side Arm 76”lg. 6 1
WA1DBB Rubber Bumper - 2
HHCS3816125 Hex Head Cap Screw 3/8” – 16 x 1 ¼” lg. - 2
WA11 PLASTIC SPACER 7 2

WA2J-2P 2-PIECE COLLAR 1½” 8 2
WA1FA SHOCK ABSORBER ASSEMBLY: 9 2

WA1FAA Shock Absorber Model MN32238 - 4
WA1FA1 UHMW Bushing 3/8” I.D. - 8
WA1FB PIN Æ3/8”x6”lg. - 4
WA1FC COLLAR 3/8” - 4
WA1G RETRACT KIT - 1set
WA2H-1212 UNIVERSAL COUPLING 10 2

WA2HA-1212 UHMW Flex Coupling - 2
WA1H2 UHMW Bushing 1½”I.D. - 2
WA2HC Mounting Channel with collars 1½”I.D. x 2 ½"O.D. x 7/8” width - 2
WA2HD Shaft 1½” x 6¼”LG - 2
WA1J Collar 1 ½”I.D. x 2 ½’’ O.D. x 7/8” width 4
WA1H FLEX COUPLING ASSEMBLY (optional) 10A 2
WA1HA Welded Flex Coupling - 2
WA1HB Wrap Cam ¾ ”I.D. - 2
WA1H1 UHMW Sleeve - 2
HHCS3816075 w/Hex Head Screw - 8

WA5K WRAP AROUND SHAFT ASSEMBLY - 2

WA5KA Motor Mount 12 2
NLN3816 Nylon Lock Nut 3/8”-16 - 4
WA1KM Hydraulic motor, displacement 11.9 [cu. in./rev.], 13 2
SAE070202-8-8 Fitting 90° elbow ½ ”NPTMx ½ ”JIC 14 4
WA1K1 Torque Plate - 4
HHCS3816075 Hex head cap screw 3/8”-16 x ¾ ”lg. (motor’s fastener) - 8
WA5KB Brush Shaft Æ1½”x10½”lg. 15 2
WA1KCB 4-bolt Bearing 1½” UCF208-24E 16 4
HHCS1213175 Hex Head Cap Screw ½” – 13 x 1 ¾” lg. - 16

FW12100 Flat Washer ½ ”I.D.x1”O.D. - 16
WA1M-5/10x72 BRUSH ASSEMBLY (design: 5” core, 72”lg.) 18 1set
WC3L HYDRAULIC & WATER INSTALLATION: - -
WA1LA Side Water Manifold Assembly (on exit legs): - 2
WA1LAA Water Manifold (tubing 1”O.D. x 36”lg., w/4 water outlets 11” apart) - 2
SAE140109P-8 Hollow Hex Plug ½”NPTM - 2
BRB1/2x1/2 Barb 1/2”x ½” NPTM - 2
NZ1/4 Nozzle ¼” NPTM - 8
SAE140438-8-8 Female Pipe Tee ½” NPTF - 2
PPP3/4 Pipe Clamp ¾”, for water hose and side water manifolds (w/screw fasteners ¼”) - 10
MC1BC-S Top Water Manifold Assembly - 2
MC1BCA-S Top water manifold (tubing 1” O.D. x 34” lg. w/4 water outlets, 10” apart one from another - 2
SAE140409P-8 Hollow Hex Plug ½” NPTM - 2
SAE070115-8 Tube Support Sleeves ½” JIC -
SAE070110-8 Nuts ½” JIC -
WA1LB Hydraulic hose assembly: - 8
SAE100R7-06x34 Hydraulic Hose 3/8”I.D.x34”lg., thermoplastic, “Aeroquip” FC372-06 - 8
FC5810-0806 Crimp Fitting SAE 37° JIC swivel (female) “Aeroquip” - 4
FC5807-0806 Crimp fitting SAE 37° JIC male flare - 12
DMP1/2 Damping Clamp ½”, for hydraulic tubes (w/screw fasteners ¼”) - 11
