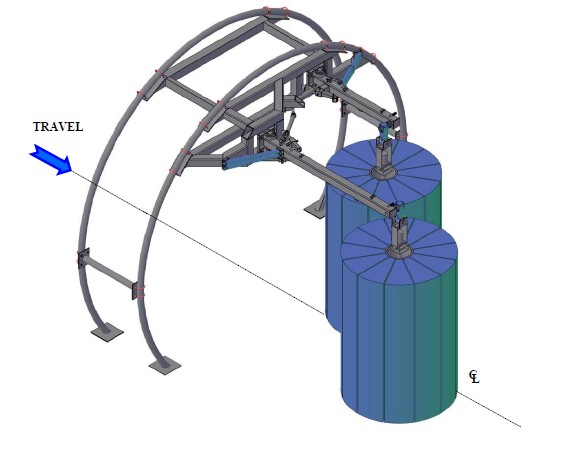

RAINBOW WRAP AROUND, Model R-WA1


RAINBOW WRAP AROUND, Model R-WA1

SKU Details

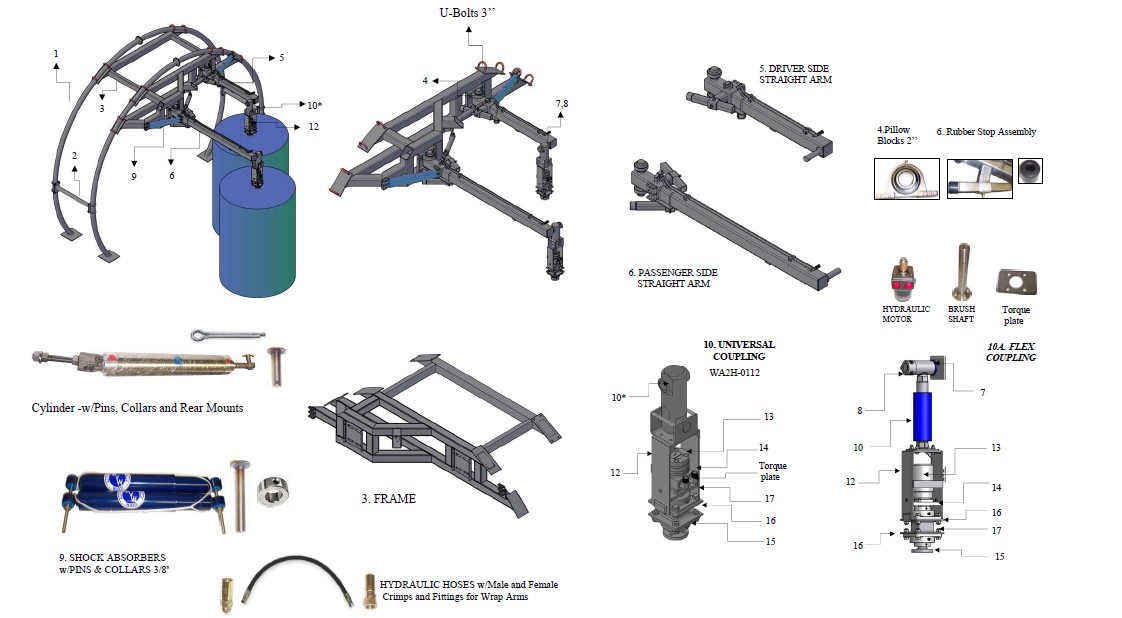

Sku Images Part# Description Diagram Part # Quantity ADDTOCARTDETAILSANDPRICE
R-AA0 RAINBOW ARCH—2-1/2’’ 1 2
HHCS12131050 Hex Head Cap Screw 1/2”-13x1-1/2” LG 8
FW12125 Flat Washer ½”I.D. x 1 ¼” O.D. 16

SLW1/2 Split Lock Washer 8
HN1213 HEX NUT 1/2’’ 8
UB-R050x300x1050 w/ 3’’ ROUND U BOLTS (1/2’’ SIZE) 1.1 12
HBB-21SCH40-32 HORIZONTAL BRACE BARS 2 2
R-WC3B FRAME ASSEMBLY: - 1
R-WC3BA Frame 3 1
SQHS1213125 Square Head Screw ½” – 13 x 1 ¼” lg. (for sleeves) - 16
HHCS3816200F Hex Head Cap Screw 3/8’’-16x2’’LG - 8

WA1WB PILLOW BLOCK 2” 4 4
HHCS1213225 Hex Head Cap Screw ½” – 13 x 2 ¼” LG. - 8

WA1D DRIVER SIDE ARM ASSEMBLY: - 1

WA1DA Driver Side Arm 48”lg. 5 1

WA1DB Rubber Stop Arm Assembly - 1

WA1DBA Stop Arm - 1

WA1DBB Rubber Bumper - 1

HHCS3816125 Hex Head Cap Screw 3/8” – 16 x 1 ¼” LG - 1

FW38087 Flat Washer 3/8” I.D. x 7/8” O.D - 1
HN3816 HEX NUTS 3/8’’ - 1

SQHS3816075 Square Head Screw 3/8”-16x ¾” lg. - 2

WA1E PASSENGER SIDE ARM ASSEMBLY: - 1

WA1EA Passenger Side Arm 76” LG 6 1

WA11 PLASTIC SPACER 7 2

WA2J-2P 2-PIECE COLLAR 1-1/2’’ 8 2

WA1FA SHOCK ABSORBER ASSEMBLY: 9 2

WA1FAA Shock Absorber - 4
WA1FA1 UHMW Bushing 3/8” I.D. - 8

WA1FB PIN Æ3/8” x 6” LG. - 4

WA1FC COLLAR 3/8” - 4

WA1G RETRACT KIT - 1SET

WA2H-1212 UNIVERSAL COUPLING 10 2

WA2HA-1212 UHMW Flex Coupling - 2
WA1H2 UHMW Bushing 1 ½” I.D. - 2
WA2HC Mounting Channel - 2
WA2HD Shaft 1 ½” x6 ¼” LG - 2
WA1J Collar 1 ½”I.D. x 2 ½’’ O.D. x 7/8” width - 2

WA1H FLEX COUPLING ASSEMBLY (optional) 10a 2
WA1HA Welded Flex Coupling - 2
WA1HB Wrap Cam ¾” I.D. - 2
WA1H1 UHMW Sleeve - 2
HHCS3816075 w/Hex Head Screw - 8

WA5K WRAP AROUND SHAFT ASSEMBLY - 2

WA5KA Motor Mount 12 2

NLN3816 Nylon Lock Nuts - 4

WA1KM Hydraulic Motor, displacement 11.9 [cu.in./rev.] 13 2
SAE070202-8-8 Fitting 90° elbow ½” NPTM x ½” JIC 14 4
WA1K1 Torque Plate - 2
WA5KB Brush Shaft Æ1 ½” x 10 ½” lg. 15 2

WA1KCB 4-bolt Bearing 1 ½” 16 4
HHCS1213175 Hex Head Cap Screw ½” – 13 x 1 ¾” lg. - 16

FW12100 Flat Washer ½” I.D. x 1” O.D. - 16
WA1M-5/10x72 BRUSH ASSEMBLY (design: 5” core, 72”lg.) 18 1set
WC3L HYDRAULIC & WATER INSTALLATION - -
WA1LA Side Water Manifold Assembly (on exit legs): - 2

WA1LAA Manifold - 2

SAE140109P-8 Hollow Hex Plug ½” NPTM - 2

BRB1/2x1/2 Barb ½” x ½” NPTM - 2
NZ1/4 Nozzle ¼” NPTM - 8
SAE140438-8-8 Female Pipe Tee ½” NPTF - 2
PPP3/4 Pipe Clamp ¾”, for water hose and side water manifolds (w/screw fasteners ¼”) - 10
MC1BC-S Top Water Manifold assembly - 2

MC1BCA-S Top water manifold (tubing 1” O.D. x 34” lg. w/4 water outlets, 10” apart one from another - 2
SAE140409P-8 Hollow Hex Plug ½” NPTM - 2
SAE070115-8 Tube support sleeves ½” JIC -
SAE070110-8 Nuts ½” JIC -
WA1LB Hydraulic hose assembly: - 8
SAE100R7-06x34 Hydraulic Hose 3/8” I.D. x 34” lg., thermoplastic - 8
FC5810-0806 Crimp Fitting SAE 37° JIC swivel (female) - 4

FC5807-0806 Crimp Fitting SAE 37° JIC male flare - 12

DMP1/2 Damping Clamp ½”, for hydraulic tubes (w/screw fasteners ¼”) - 11
