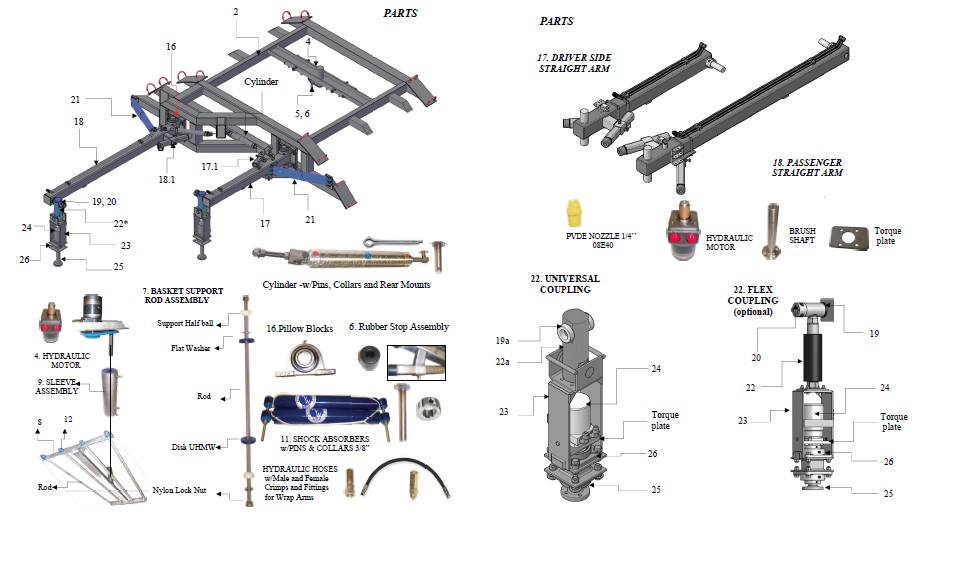

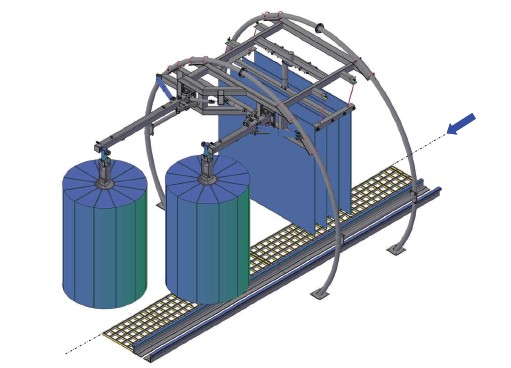

RAINBOW WRAP MINI MITTER, Model R-W1MM5
SKU Details
| Sku Images | Part# | Description | Diagram Part # | Quantity | ADDTOCARTDETAILSANDPRICE |
|---|---|---|---|---|---|
| R-AA0 | RAINBOW ARCH—2-1/2’’ | 1 | 2 |
|
|
| HBB-21SCH40-60 | HORIZONTAL BRACE BARS | 1.1 | 4 | ||
| R-W1MM5B-7 | FRAME ASSEMBLY: | - | 1 | ||
| R-W1 MM5BA-7 | Frame | 1 | |||
| SQHS1213150 | Square Head Screw ½” – 13 x 1½” LG. (for sleeves) | 3 | 16 | ||
| HHCS1213125 | Hex Head Screw 3/8’’-16x2’’Lg (Fully threaded, for pillow block adjusted) | 8 | |||
| MC2BB-1104 | Basket Drive Assembly: | - | 1 | ||
|
|
WA1KM | Hydraulic Motor, displacement 11.9 [cu.in./rev.] | 4 | 1 | |
| SAE070102-8-8 | 1/2’’JIC -1/2’’NPT, MALE | - | 2 | ||
| MC2BBA-P1-1-0106 | Cam Arm (w/welded weld-on hub) | 5 | 1 | ||
| P1 1” | Split Taper Bushing P1 1” | 6 | 1 | ||
| HHCS3816075 | w/Hex Head Screw | - | 4 | ||
|
|
MC1C | BASKET SUPPORT ROD ASSEMBLY: | 7 | 4 | |
|
|
MC1C1 | Basket support Rod ½” x 27” lg. | - | 4 | |
|
|
MC1C2 | Basket support Disk UHMW | - | 8 | |
|
|
MC1C3 | Basket support Halfball | - | 8 | |
| FW12125 | Flat Washer ½”I.D. x 1 ¼” O.D. | - | 8 | ||
| NLN1213 | Nylon Lock Nut ½”-13 | - | 8 | ||
| MM5D-7 | BASKET ASSEMBLY | - | 1 | ||
| MM4DA-7 | Basket Frame 7’ | 8 | 1 | ||
|
|
MC1DB | Sleeve Assembly | - | 1 | |
|
|
MC1DB1 | Sleeve | 9 | 1 | |
|
|
MC1DB2 | UHMW Bushing 1” I.D. | - | 1 | |
| SQHS3816075 | Square Head Screw 3/8”-16x ¾” lg. | 10 | 3 | ||
| HN3816 | HEX NUTS 3/8’’ | - | 3 | ||
|
|
MC2DC | Curtain Rod Assembly | 11 | 4 | |
|
|
MC2DCA | Curtain Rod 7’4”lg. | - | 4 | |
| MC1DC2-3/4x2x3/8 | Plastic Spacer ¾ ” I.D.x2” O.D. x 3/8” width | 12 | 8 | ||
| PLHN3410 | Plastic Hex Nut ¾”-10 | 16 | |||
| MC1E | CURTAIN (CLOTH) | 14 | 36 | ||
| R-MM5L | HYDRAULIC & WATER INSTALLATION | - | |||
| MM5BC | Top Water manifold Assembly: | - | 1 | ||
| MM5BCA | Top Water Manifold (straight, tubing 1” O.D. x 96” lg. w/9 water outlets) | - | 1 | ||
| SAE140109E-8 | Hex Head Plug ½” NPTM (white plastic) | - | 1 | ||
| BRB1/2x1/2 | Barb ½” x ½” NPTM | - | 1 | ||
| NZ1/4 | Nozzle ¼” NPTM | - | 9 | ||
| MC1BD | Beam Clamp ¾”, for Water Manifold (w/screw fasteners ¼”-20) | - | 2 | ||
| SAE010115-8 | Tube Support Sleeves ½” JIC | - | 8 | ||
| SAE070110-8 | Nuts ½” JIC | - | 8 | ||
| DMP1/2 | Damping Clamp ½”, for hydraulic tubes (w/screw fasteners ¼”) | - | 10 | ||
| WA1WB | PILLOW BLOCK 2” | 16 | 4 | ||
| HHCS1213225 | Hex Head Cap Screw ½” – 13 x 2 ¼” LG. | - | 8 | ||
| SLW1/2 | Split Lock Washer | - | 8 | ||
|
|
HN1213 | HEX NUT 1/2’’ | - | 8 | |
| WA1D-2073 | DRIVER SIDE STRAIGHT ARM ASSEMBLY: | - | 1 |
|
|
| WA1DA-2073 | Driver Side Arm 48”lg. | 17 | 1 | ||
|
|
WA1DB | Rubber Stop Arm Assembly | 17.1 | 2 | |
| WA1DBA | Stop Arm | 2 | |||
|
|
WA1DBB | Rubber Bumper | 2 | ||
| HHCS3816125 | Hex Head Cap Screw 3/8” – 16 x 1 ¼” LG | 2 | |||
| FW38087 | Flat Washer 3/8” I.D. x 7/8” O.D | 2 | |||
| WA1E-2073 | PASSENGER SIDE STRAIGHT ARM ASSEMBLY: | - | 1 | ||
| WA1EA-2073 | Driver Side Arm 76”lg. | 18 | 1 | ||
| WA11 | PLASTIC SPACER | 19 | 2 | ||
| WA11-0112 | PLASTIC SPACER ( for UNIVERSAL COUPLING) | 19a | 2 | ||
| WA2J-2P | 2-PIECE COLLAR 1-1/2’’ | 20 | 2 | ||
|
|
WA1FA | SHOCK ABSORBER ASSEMBLY: | 21 | 2 | |
| WA1FAA | Shock Absorber | - | 4 | ||
|
|
WA1FA1 | UHMW Bushing 3/8” I.D. | - | 8 | |
| WA1FB | PIN Æ3/8” x 6” LG. | a | 4 | ||
|
|
WA1FC | COLLAR 3/8” | - | 4 | |
| WA2H-1212 | UNIVERSAL COUPLING | 22 | 2 | ||
| WA2HA-UHMW | UHMW Coupling | 2 | |||
| WA1H2 | UHMW Bushing 1 ½” I.D. | 2 | |||
| WA2HC | Mounting Channel | 2 | |||
| WA2HD | Shaft 1 ½” x6 ¼” LG | 2 | |||
| WA1H | FLEX COUPLING ASSEMBLY (optional) | 22A | 2 | ||
| WA1HA | Welded Flex Coupling | 2 | |||
| WA1HB | Wrap Cam ¾” I.D. | 2 | |||
| WA1H1 | UHMW Sleeve | 2 | |||
| WA5K | WRAP AROUND SHAFT ASSEMBLY | - | 2 | ||
|
|
WA5KA | Motor Mount | 23 | 2 | |
| NLN3816 | Nylon Lock Nuts | - | 4 | ||
| SAE070202-8-8 | Fitting 90° elbow ½” NPTM x ½” JIC | - | 4 | ||
| WA1K1 | Torque Plate | - | 2 | ||
|
|
WA5KB | Brush Shaft Æ1 ½” x 10 ½” lg. | 25 | 2 | |
| WA1KCB | 4-bolt Bearing 1 ½” | 26 | 4 | ||
| HHCS1213175 | Hex Head Cap Screw ½” – 13 x 1 ¾” lg. | - | 16 | ||
| FW12100 | Flat Washer ½” I.D. x 1” O.D. | - | 16 | ||
| WA1M-5/10x72 | BRUSH ASSEMBLY (design: 5” core, 72”lg.) | 27 | 2 | ||
| WA1L | HYDRAULIC & WATER INSTALLATION | - | - | ||
|
|
WA1LA | Side Water Manifold Assembly (on exit legs): | - | 2 | |
|
|
WA1LAA | Manifold | - | 2 | |
|
|
SAE140109P-8 | Hollow Hex Plug ½” NPTM | - | 2 | |
| PPP3/4 | Pipe Clamp ¾”, for water hose and side water manifolds (w/screw fasteners ¼”) | - | 10 | ||
| SAE070115-8 | Tube support sleeves ½” JIC | - | |||
| WA1LB | Hydraulic hose assembly: | - | |||
| SAE100R7-06x34 | Hydraulic Hose 3/8” I.D. x 34” lg., thermoplastic | - | 8 | ||
| FC5810-0806 | Crimp Fitting SAE 37° JIC swivel (female) | - | 4 | ||
| (10655-8-6) | Catching Fluidpower-“Parker | (4) | |||
| FC5807-0806 | Crimp Fitting SAE 37° JIC male flare | - | 12 | ||
| (10355-8-6) | Catching Fluidpower-“Par | (12) |
