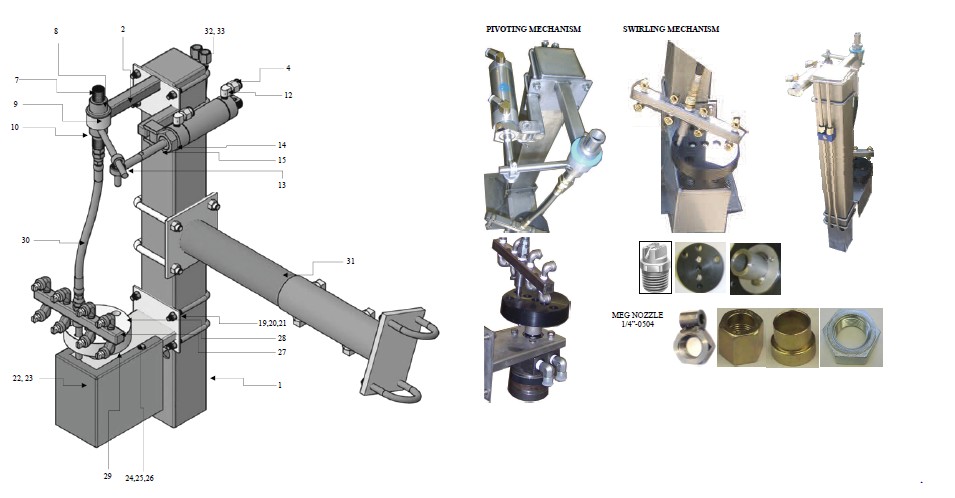

RAINBOW PIVOTING SWIRLING SIDE BLASTER, Model R-BS1: PASSENGER'S SIDE
SKU Details
| Sku Images | Part# | Description | Diagram Part # | Quantity | ADDTOCARTDETAILSANDPRICE |
|---|---|---|---|---|---|
| R-SB1B | SIDE BLASTER- ONE SIDE | - | 1 | ||
| R-SB1AA | SQUARE LEG | 1 | 1 | ||
| SB1BB | PIVOTING MECHANISM: | - | 1 | ||
| SB2BBA | TOP BRACKET | 2 | 1 | ||
| SB1ABG | Square U-bolt fastener set 3/8”: | - | 2 | ||
|
|
UB-SQ0375x1400 | w/SQ.U BOLTS 3/8’’ SIZE and | - | 2 | |
|
|
SLW38 | SPLIT LOCK WASHER 3/8” | 4 | 4 | |
| HN3816 | HEX NUTS 3/8’’ | 5 | 4 | ||
| SB1AB2 | UHMW bushing 7/8”I.D. | 6 | 1 | ||
| SB1ABB | COLLAR for ½” Nipple (w/square head screw ¼” -20 x ½”) | 8 | 1 | ||
| SB1ABC-0808 | CAM ARM | 9 | 1 | ||
| SAE070103-8-8 | FITTING ½ ”NPTF x ½ ”JIC | 10 | 1 | ||
| SB1ABD | PIVOTING KIT: | 1 | |||
|
|
AC2x3 | CYLINDER | - | 1 | |
| EL90304025 | 90° Street ELBOW 1/4” NPT, Stainless Steel | 12 | 2 |
|
|
|
|
APF3814 | AIR PUSH FITTING 3/8’’ x 1/4’’ NPT | - | 2 | |
|
|
BJ1-2-20 | BALL JOINT ROD END1/2-20 | - | 1 | |
| SB1ABDA-0808 | HEX NUT 1 1/4",zink plated w/Collar | 13 | 1 | ||
| HHCS1420050-BR | HEX HEAD CAP SCREW 1/4" BRASS | 14 | 1 | ||
| SB1ABDB-0808 | CAM CONNECTOR 1/2"Collar,1/2"x1-1/2"lg Shaft | 15 | 1 | ||
| SB1AC | SWIRLING MECHANISM | 1 | |||
| SB1ACA | MOTOR MOUNT | 17 | 1 | ||
| SB1ABG1 | SQUARE U-bolt Æ3/8”x17”lg. | 19 | 2 | ||
| SLW3/8 | SPLIT LOCK WASHER 3/8” | 20 | 4 | ||
| TB1ADBM | HYDRAULIC MOTOR , displacement 5.0 [cu.in./rev.] | 21 | 1 | ||
| EL90STL050JIC050MNPT | HYDRAULIC MOTOR, displacement 5.0 [cu.in./rev.] | 22 | 2 | ||
| HHCS3816075 | w/Hex Head Screw | 23 | 4 | ||
| SB2ABDA-0806 | - | 1 | |||
|
|

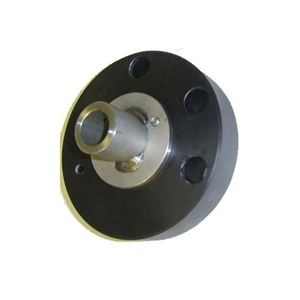

SB2ABDA-0806A | UHMW Disk | 24 | 1 | |
| SB2ABDA-0806B | S. STEEL Disk | 25 | 1 | ||
| HHCS1420175 | HEX HEAD CAP SCREW 1/4"x1 3/4" Lg | 26 | 2 | ||
| SB2AD-0811 | MANIFOLD ASSEMBLY: | 1 | |||
| SB2ADA-0811 | MANIFOLD ASSEMBLY (w/Post) | 27 | 1 | ||
| SB2ADAA-0811 | Manifold (less Post) | 1 | |||
| SB2ADAB | Post | 1 | |||
| EL90SBR025 | 90° STREET ELBOW¼ ”NPT | 28 | 8 | ||
|
|
1-4MEG-0504 | NOZZLE 1/4’’ MEG 0504 (8/PER MANIFOLD) | - | 8 | |
| SAE070102-6-8 | FITTING STRAIGHT 3/8”NPTMx ½ ”JIC | 29 | 1 | ||
| SB1AF | HYDRAULIC HOSE ASSEMBLY: | 30 | 1 | ||
| SAE100R7-06x12 | Hydraulic hose 3/8”I.D.x12”lg., thermoplastic | - | 1 | ||
| FC5810-0806 | Crimp Fitting SAE 37° JIC swivel (female) | - | 2 | ||
| R-SB1CA | -w/o U-Bolts | 1 | |||
| R-SB1C | -w U-Bolts ( includes ): | 1 | |||
| UB-R050x300x1050 | w/ 3’’ ROUND U BOLTS (1/2’’ SIZE) | ||||
|
|
UB-SQ050x1500 | U Bolts 1/2” to accept Rect. Tub. 2”x6” | |||
| 1-2TP304-TP304L | HYDRAULIC TUBE ASSEMBLY: | 1 | |||
|
|
RB1LPA1x33 | Hydraulic tubes 1/2”O.D.xW.035” stainless steel | |||
| SAE070115-8 | Tube support sleeves ½” JIC | 1 | |||
| SAE070110-8 | Nuts ½” JIC | 1 | |||
|
|
DMP12 | UHMW DAMPING CLAMP 1/2“, | 1 |
