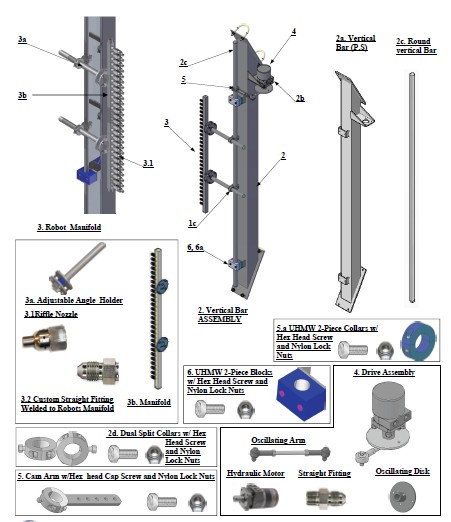

RAINBOW AUTOMATED PREPPING SYSTEM ROBOT ARCH, Model R-RT3-0815

Part#	Description	Diagram Part #	Quantity
R-AA0	RAINBOW ARCH—2-1/2’’	1.0	2
FW12125	Flat Washer ½”I.D. x 1 ¼” O.D.		4
SLW12	Split Lock Washer 1/2”		4
HN1213	HEX NUT 1/2’’		4
R-AA0L-2470	CURVED SUPPORT LEGS with:	1.1	2
UB-R050x300x1100	3’’Round U -Bolts 1/2” Size		4
R-RT1A	VERTICAL BAR ASSEMBLY -Driver Side	1	1
R-RT1AA	VERTICAL BAR - -Driver Side	1a
R-RT1B	VERTICAL BAR ASSEMBLY – Passenger Side	2	1
R-RT1BA	VERTICAL BAR - Passenger Side	2a
RT1AAC	MOTOR MOUNT WELDED TO PIVOT	2b	1/side
RT1AB1	Round Vertical Bar	2c	2
RT1ABB	Dual Split Collars	2d	2/side
HHCS3816075	w/Hex Head Screw	-	1
NLN3816	Nylon Lock Nuts		-
RT1ABA	Robot Manifold	3	1/side
RT1ABAA	Adjustable Angle Holder	3a	2/side
RT1ABAB	Manifold	3b	26/side
RIFNOZ-BODY-SS	Riffle Nozzle	3.1	26/side
SAE070102-4-4	Custom Straight Fitting (Welded to Robot’s Manifold)	-	26/side
TB1ADBM	HYDRAULIC MOTOR , displacement 5.0 [cu.in./rev.]	-	1/Side
SB2ADBA	Oscillating Disk	-	1/Side
PO1CBB-10	OSCILLATING ARM ASSEMBLY	-	1/Side
SAE070102-8-8	1/2’’JIC -1/2’’NPT, MALE	-	1/Side
RT1-CAM3	Cam Arm	5	1/Side
PO1C2	UHMW BLOCK MANIFOLD	6	2/side
RT1DDA	UHMW SPLIT COLLAR 1’’ I.D. (1/PER MANIFOLD)	6a	2/side
