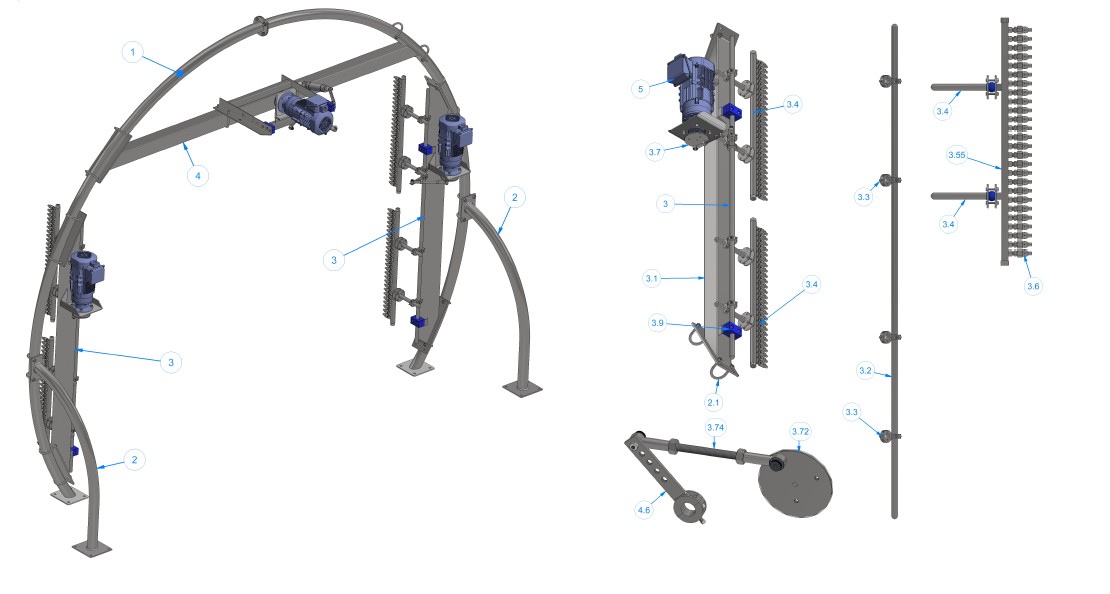

RAINBOW AUTO PREPPING SYSTEM, MODEL R-RT1-2580-EL
SKU Details
| Sku Images | Part# | Description | Diagram Part # | Quantity | ADDTOCARTDETAILSANDPRICE |
|---|---|---|---|---|---|
| R-AA0 | RAINBOW ARCH—2-1/2’’ | 1 | 2 |
|
|
| HHCS3816075 | w/Hex Head Screw | - | 4 | ||
| FW12100 | Flat Washer ½” I.D. x 1” O.D. | - | 4 | ||
| NLN3816 | Nylon Lock Nuts | - | 4 | ||
| R-AA0L-2470 | CURVED SUPPORT LEGS with: | 2 | 2 |
|
|
| UB-R050x300x1050 | w/ 3’’ ROUND U BOLTS (1/2’’ SIZE) | 2.1 | 4 | ||
| R-RT1A/R-RT1B | VERTICAL BAR ASSEMBLY | 3 | 1 | ||
| R-RT1AA/R-RT1BA | VERTICAL BAR | 3.1 | 1 | ||
| RT1AAC | MOTOR MOUNT WELDED TO PIVOT | - | 1 | ||
| RT1AB1 | Round Vertical Bar | 3.2 | 2 | ||
| RT1ABB | Dual Split Collars | 3.3 | 2 | ||
| RT1ABA | Robot Manifold | 3.4 | 1/side | ||
| RT1ABAA | Adjustable Angle Holder | 3.5 | 2/side | ||
|
|
RT1ABAB | Manifold | 3.55 | 26/side | |
| RIF-NOZ-BODY1-SS | Riffle Nozzle | 3.6 | 26/side | ||
| SAE#070102-4-4 | Custom Straight Fitting (Welded to Robot’s Manifold) | - | 26/side | ||
| PO1DBB | Drive Assembly | 3.7 | 1/side | ||
| SB2ADBA | Oscillating Disk | 3.72 | 1/side | ||
|
|
PO1CBB-10 | OSCILLATING ARM ASSEMBLY | 3.74 | 1/side | |
| SAE070102-8-8 | 1/2’’JIC -1/2’’NPT, MALE | - | 1/side | ||
| RT1-CAM3 | Cam Arm | 3.8 | 1/side | ||
|
|
PO1C2 | UHMW BLOCK MANIFOLD | 3.9 | 2/side | |
|
|
RT1DDA | UHMW SPLIT COLLAR 1’’ I.D. (1/PER MANIFOLD) | - | 2/side |
