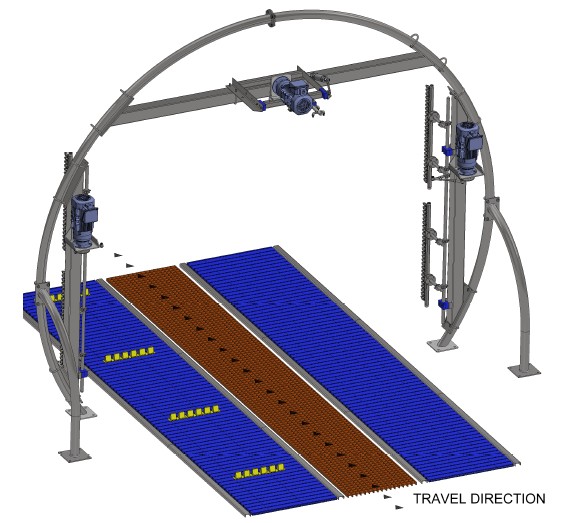

PIVOTING OSCILLATING TOP MANIFOLD
SKU Details

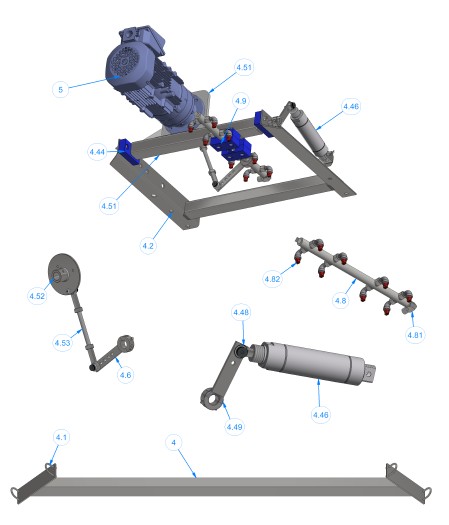

| Sku Images | Part# | Description | Diagram Part # | Quantity | ADDTOCARTDETAILSANDPRICE |
|---|---|---|---|---|---|
| R-OS1B | HOLDING TOP BAR RAINBOW w/ | 4 | 1 |
|
|
|
|
HN1213 | HEX NUT 1/2’’ | 8 | ||
| FW12100 | Flat Washer ½” I.D. x 1” O.D. | 8 | |||
|
|
SLW12 | Split Lock Washer 1/2” | 8 | ||
| PO1C-EL0915 | PIVOTING OSCILLATING TOP MANIFOLD FRAME | 4.2 | 1 | ||
| UB-S050X300X1050 | w/SQ.U BOLTS 3/8’’ SIZE and | 4.3 | 2 | ||
| FW38 | WASHERS 3/8” and | 4 | |||
| HN38 | HEX NUTS 3/8’’ | 4 | |||
| PO1C1 | PIVOT UHMW BLOCK | 4.44 | 2 | ||
|
|
AC2x3 | CYLINDER | 4.46 | 1 | |
|
|
BJ1-2-20 | BALL JOINT ROD END1/2-20 | 4.48 | 1 | |
| JN1220 | JAM NUT | 1 | |||
| SB1ADB1 | SHOULDER BOLT 1/2’’ | 1 | |||
| NLN1213 | Nylon Lock Nut ½”-13 | 1 | |||
| CP18-112 | COTTER PIN | 1 | |||
| PO1CAM1 | PIVOT CAM | 4.49 | 1 | ||
| RT1AAC | MOTOR MOUNT WELDED TO PIVOT | 4.51 | 1 | ||
|
|
SB2ABDA | OSCILLATING DISK | 4.52 | 1 | |
| HN1420 | Hex nut ¼ ”-20 | 1 | |||
|
|
PO1CBB-10 | OSCILLATING ARM ASSEMBLY | 4.53 | 1 | |
| NLN3813 | NYLON LOCK NUT | 1 | |||
| PO1CAM2 | CAM | 4.6 | 1 | ||
| EL90-S-304025 | 90° Street ELBOW 1/4” NPT, 8/PER SIDE , Stainless Steel | 4.81 | 8 | ||
| RIF-NOZ-BODY1-SS | Riffle Nozzle | 4.82 | 8 | ||
|
|
PLUGPP050 | PLUG 1/2”, (1/PER MANIFOLD) | - | 1 | |
| GRMTR1-5HP-75-230-460 | ELECTRIC MOTOR | 5 | 1 |
