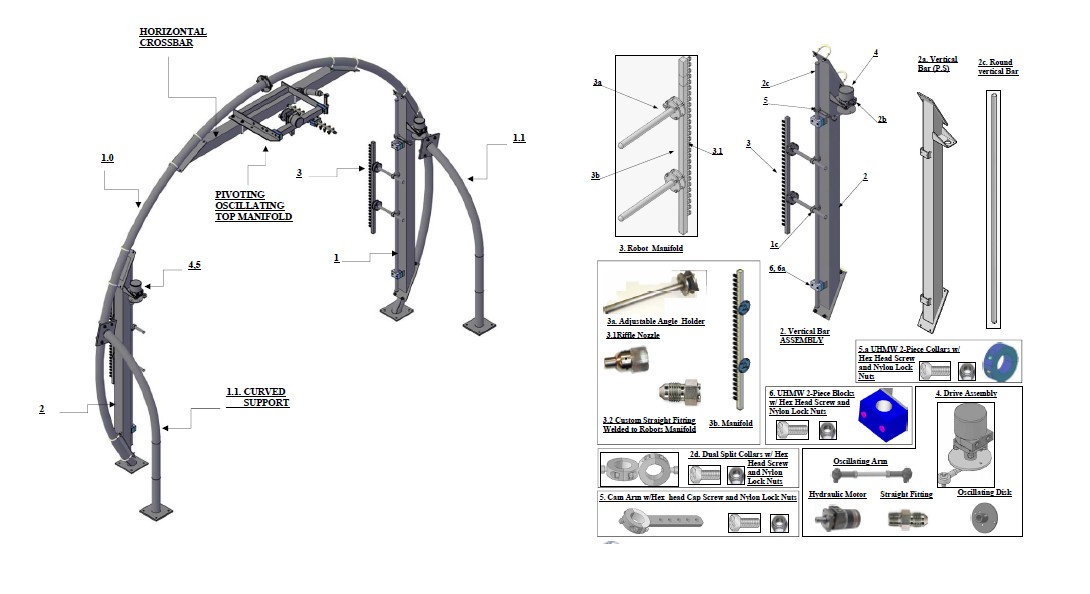

RAINBOW AUTOMATIC PREPPING SYSTEM - MODEL R-RT1-2580
SKU Details
| Sku Images | Part# | Description | Diagram Part # | Quantity | ADDTOCARTDETAILSANDPRICE |
|---|---|---|---|---|---|
| R-AA0 | RAINBOW ARCH—2-1/2’’ | 1.0 | 2 |
|
|
| R-AA0L-2470 | CURVED SUPPORT LEGS with: | 1.1 | 2 |
|
|
| UB-R050x300x1050 | w/ 3’’ ROUND U BOLTS (1/2’’ SIZE) | 4 | |||
| R-RT1A | VERTICAL BAR ASSEMBLY -Driver Side | 1 | 1 |
|
|
| R-RT1AA | VERTICAL BAR - -Driver Side | 1a | |||
| R-RT1B | VERTICAL BAR ASSEMBLY – Passenger Side | 2 | 1 |
|
|
| R-RT!BA | VERTICAL BAR - Passenger Side with | 2a | |||
| RT1AAC | MOTOR MOUNT WELDED TO PIVOT | 2b | 1/side | ||
| RT1AB1 | Round Vertical Bar | 2c | 2 | ||
| RT1ABB | Dual Split Collars | 2d | 2/side | ||
| HHCS3816075 | w/Hex Head Screw | - | - | ||
| NLN3816 | Nylon Lock Nuts | ||||
| RT1ABA | Robot Manifold | 3 | 1/side | ||
| RT1ABAA | Adjustable Angle Holder | 3a | 2/side | ||
|
|
RT1ABAB | Manifold | 3b | 26/side | |
| RIF-NOZ-BODY1-SS | Riffle Nozzle | 3.1 | 26/side | ||
| SAE#070102-4-4 | Custom Straight Fitting (Welded to Robot’s Manifold) | - | 26/side | ||
| PO1DBB | Drive Assembly | 4 | 1/Side | ||
| TB1ADBM | HYDRAULIC MOTOR , displacement 5.0 [cu.in./rev.] | - | 1/Side | ||
| SB2ADBA | Oscillating Disk | - | 1/Side | ||
|
|
PO1CBB-10 | OSCILLATING ARM ASSEMBLY | - | 1/Side | |
| SAE#070102-8-8 | w/Straight Fittings | - | 1/Side | ||
| RT1-CAM3 | Cam Arm | 5 | 1/Side | ||
|
|
PO1C2 | UHMW BLOCK MANIFOLD | 6 | 2/Side | |
|
|
RT1DDA | UHMW SPLIT COLLAR 1’’ I.D. (1/PER MANIFOLD) | 6a | 2/Side |
