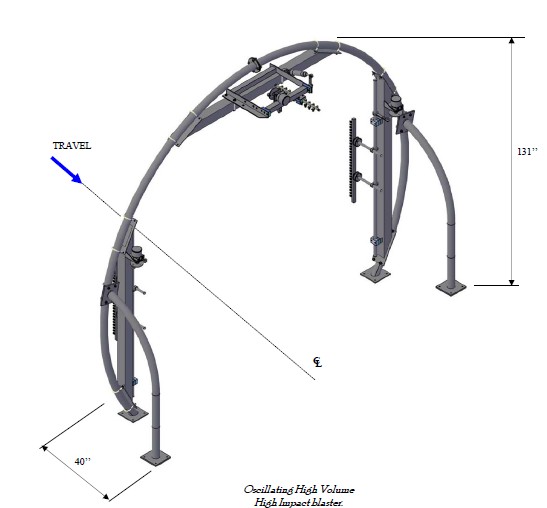

RAINBOW AUTOMATIC PREPPING SYSTEM - MODEL R-RT1-2580: TOP MANIFOLD
SKU Details

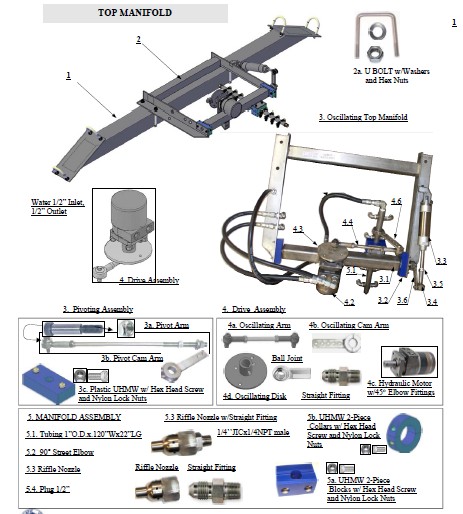

| Sku Images | Part# | Description | Diagram Part # | Quantity | ADDTOCARTDETAILSANDPRICE |
|---|---|---|---|---|---|
| R-OS1B | HOLDING TOP BAR RAINBOW w/ | 1 | 1 |
|
|
| PO1D | PIVOTING OSCILLATING TOP MANIFOLD | 2 | 1 | ||
| PO1C1 | PIVOT UHMW BLOCK | 3.2 | 2 | ||
|
|

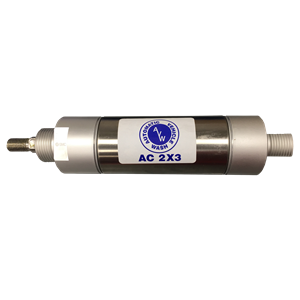

AC2x3 | CYLINDER | 3.3 | 1 | |
|
|
BJ1-2-20 | BALL JOINT ROD END1/2-20 | 3.4 | 1 | |
| JN1220 | JAM NUT | 3.5 | 1 | ||
| SB1ADB1 | SHOULDER BOLT 1/2’’ | 1 | |||
| FW38 | WASHERS 3/8” and | 1 | |||
| NLN1213 | Nylon Lock Nut ½”-13 | 1 | |||
| CP18-112 | COTTER PIN | 1 | |||
| PO1CAM1 | PIVOT CAM | 3.6 | 1 | ||
| RT1AAC | MOTOR MOUNT WELDED TO PIVOT | 4.1 | 1 | ||
| TB1ADBM | HYDRAULIC MOTOR , displacement 5.0 [cu.in./rev.] | 4.2 | 1 | ||
| SAE070202-8-8 | Fitting 90° elbow ½” NPTM x ½” JIC | 1 | |||
|
|
SB2ABDA | OSCILLATING DISK | 4.3 | 1 | |
| HN1420 | Hex nut ¼ ”-20 | 1 | |||
|
|
PO1CBB-10 | OSCILLATING ARM ASSEMBLY | 4.4 | 1 | |
|
|
HN1213 | HEX NUT 1/2’’ | 1 | ||
| NLN3813 | NYLON LOCK NUT | 1 | |||
| PO1CAM2 | CAM | 4.6 | 1 | ||
| EL90-S-304025 | 90° Street ELBOW 1/4” NPT, 8/PER SIDE , Stainless Steel | 5.2 | 8 | ||
| RIFNOZ-BODY1-SS | RIFLE NOZZLE 1/4’’ | 5.3 | 8 | ||
|
|
PLUGPP050 | PLUG 1/2”, (1/PER MANIFOLD) | 5.4 | 1 |
