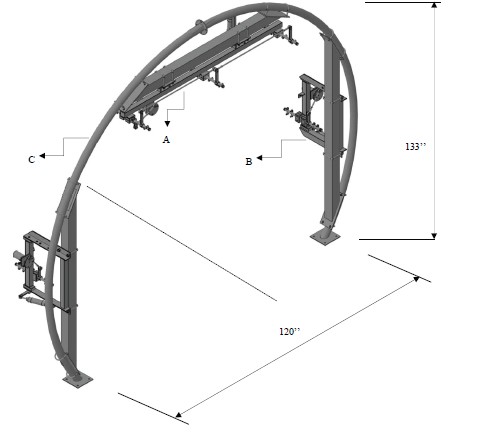

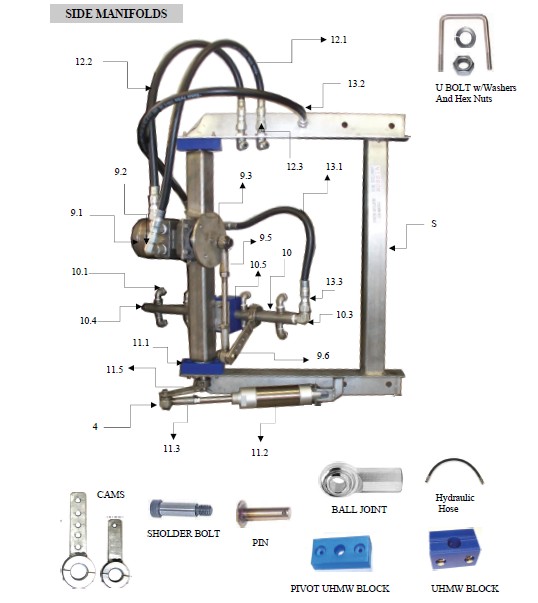

RAINBOW PIVOTING OSCILLATING HIGH ARCH , MODEL R-PO1: SIDE MANIFOLDS
SKU Details
| Sku Images | Part# | Description | Diagram Part # | Quantity | ADDTOCARTDETAILSANDPRICE |
|---|---|---|---|---|---|
| PO1D/PO1E | PIVOTING SIDE OSCILLLATOR [DRIVER/PASSENGER] | - | 1 | ||
|
|
UB-SQ0375x1400 | w/SQ.U BOLTS 3/8’’ SIZE and | 2 | ||
| FW38 | WASHERS 3/8” and | 4 | |||
| HN3820 | HEX NUTS 3/8’’ | 4 | |||
| RT1AAC | MOTOR MOUNT WELDED TO PIVOT | 9 | 1 | ||
| TB1ADBM | HYDRAULIC MOTOR , displacement 5.0 [cu.in./rev.] | 9.1 | 1 | ||
| SAE070202-8-8 | Fitting 90° elbow ½” NPTM x ½” JIC | 9.2 | 1 | ||
| SB2ADBA | Oscillating Disk | 9.3 | 1 | ||
| HN1420 | Hex nut ¼ ”-20 | 1 | |||
|
|
PO1CBB-10 | OSCILLATING ARM ASSEMBLY | 9.4 | 1 | |
|
|
BJ1-2-20 | BALL JOINT ROD END1/2-20 | 9.5 | 1 | |
|
|
HN1213 | HEX NUT 1/2’’ | 1 | ||
| SB1ADB1 | SHOULDER BOLT 1/2’’ | 2 | |||
| NLN3813 | NYLON LOCK NUT | 1 | |||
| PO1CAM2 | CAM | 9.6 | 1 | ||
| EL90S304025 | 90°STREET ELBOW 1/4’’x1/4’’, (8/PER MANIFOLD) | 10.1 | 8 | ||
|
|
1-4MEG-0504 | NOZZLE 1/4’’ MEG 0504 (8/PER MANIFOLD) | 10.2 | 8 | |
| EL90000JIC050x050MT | ELBOW– 1/2JICx1/2NPT | 10.3 | 1 | ||
|
|
PLUGPP050 | PLUG 1/2”, (1/PER MANIFOLD) | 10.4 | 1 | |
| PO1C1 | PIVOT UHMW BLOCK | 10.5 | 1 | ||
|
|
AC2x3 | CYLINDER | 11.1 | 2 | |
| JN1220 | JAM NUT | 11.4 | 1 | ||
| NLN1213 | Nylon Lock Nut ½”-13 | 1 | |||
| CP18-112 | COTTER PIN | 1 | |||
| PO1CAM1 | PIVOT CAM | 11.5 | 1 | ||
| SAE100R7-06x27 | HYDRAULIC HOSE 1 | 12.1 | 1 | ||
| SAE100R7-06x25 | HYDRAULIC HOSE 2 w/FEMALE FITTINGS | 12.2 | 1 | ||
| FC5810-0806 | Crimp Fitting SAE 37° JIC swivel (female) | 12.3 | 4 | ||
| SAE100R7-06x16 | WATER HOSE 1 | 13.1 | 1 | ||
| SAE100R7-06x234 | WATER HOSE 2 | 13.2 | 1 |
