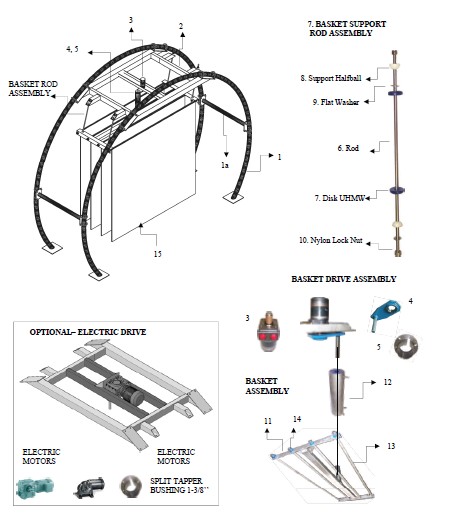

RAINBOW MINI MITTER, Model R-MM5




SKU Details



Sku Images Part# Description Diagram Part # Quantity ADDTOCARTDETAILSANDPRICE
RAA0 RAINBOW ARCH 1 2
UB-R050x300x1050 w/ 3’’ ROUND U BOLTS (1/2’’ SIZE) 16
HBB212SCH40-42 HORIZONTAL BRACE BAR 1a 2
MM5B FRAME ASSEMBLY - 1
MC5BA Frame 2 1
HHCS1213125 Hex Head Screw 3/8’’-16x2’’Lg (Fully threaded, for pillow block adjusted) 8

MC2BB-1104 Basket Drive Assembly: - 1

WA1KM Hydraulic Motor, displacement 11.9 [cu.in./rev.] 3 1
EL90STL050JIC050NPTF Straight Fitting ½” NPTM x ½ ” JIC - 2

MC2BBA-P1-1-0615 Cam Arm (w/welded weld-on hub) 4 1
STB-P1X100 Split Taper Bushing P1 1” 5 1

HHCS3816075 w/Hex Head Screw - 4

MC1C BASKET SUPPORT ROD ASSEMBLY: - 4

MC1C1-102307 Basket support Rod ½” x 27” lg. 6 4

MC1C2 Basket support Disk UHMW 7 8

MC1C3 Basket support Halfball 8 8

FW12125 Flat Washer ½”I.D. x 1 ¼” O.D. 9 8

NLN1213 Nylon Lock Nut ½”-13 10 8

MM5D-7 BASKET ASSEMBLY - 1

MM4DA-7 Basket Frame 7’ 11 1

MC1DB Sleeve Assembly - 1

MC1DB1 Sleeve 12 1

MC1DB2 UHMW Bushing 1” I.D. - 1

SQHS3816075 Square Head Screw 3/8”-16x ¾” lg. - 3

HN3816 HEX NUTS 3/8’’ - 3

MC2DC Curtain Rod Assembly - 4

MC2DCA Curtain Rod 7’4”lg. 13 4

MC1DC2-3-4x2x1-8 Plastic Spacer ¾ ” I.D.x2” O.D. x 3/8” width 4 8
PLHN3410 Plastic Hex Nut ¾”-10 16

MC1E CURTAIN (CLOTH) 15 36
MM5L HYDRAULIC & WATER INSTALLATION - -
WA1LA Side Water Manifold Assembly (on exit legs): - 1

WA1LAA Manifold - 1

SAE140109E-8 Hex Head Plug ½” NPTM (white plastic) - 1
BRBPP050x050 Barb 1/2”x ½” NPTM - 1

NZ1-4 Nozzle ¼” NPTM - 9
PPP3-4 Pipe Clamp ¾”, for Water Manifold (w/screw fasteners ¼”-20) - 2

SAE010115-8 Tube Support Sleeves ½” JIC - 8

SAE070110-8 Nuts ½” JIC - 8
DMP1-2 Damping Clamp ½”, for hydraulic tubes (w/screw fasteners ¼”-20) - 10
