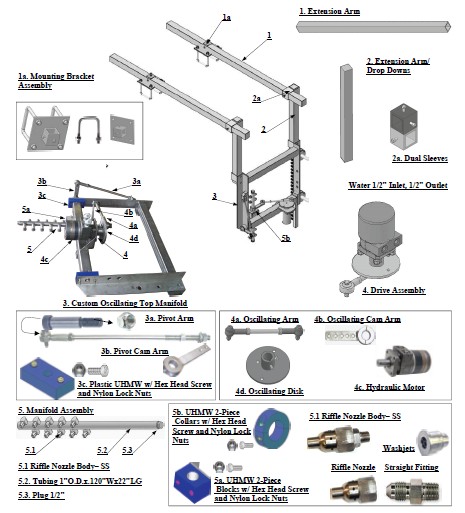

PIVOTING OSCILLATING MANIFOLD, Model PO1D-2276
SKU Details
| Sku Images | Part# | Description | Diagram Part # | Quantity | ADDTOCARTDETAILSANDPRICE |
|---|---|---|---|---|---|
| PO1DD-2763 | Extension Arm | 1 | 2 | ||
| PO1DE-2763 | Mounting Assembly | - | 4 | ||
|
|
UB-SQ050x1500 | U Bolts 1/2” to accept Rect. Tub. 2”x6” | - | 4 | |
| PO1DB-2319 | Extension Arm—Drop Down | 2 | 2 | ||
| PO1DC-2319 | Dual Sleeves to accept Sq. Tub. 2x2 | 2a | 2 | ||
| PO1DA-2276 | Custom Oscillating Top Manifold | 3 | 1 |
|
|
| PO1DPA-2276 | Pivot Arm | 3a | 1 | ||
| PO1DAA-2276 | w/Bolt w/Longer thread | - | - | ||
| PHN3816 | And Prevailing Torque Lock Nut | - | - | ||
| RT1-CAM2 | Pivot Cam Arm | 3b | 1 | ||
| HHCS3816075 | w/Hex Head Screw | - | 4 | ||
| NLN3816 | Nylon Lock Nuts | - | 4 | ||
| PO1DBB | Drive Assembly | 4 | 1 | ||
|
|
PO1CBB-10 | OSCILLATING ARM ASSEMBLY | 4a | 1 | |
| TB1ADBM | HYDRAULIC MOTOR , displacement 5.0 [cu.in./rev.] | 4b | 1 | ||
| SAE#070302-8-8 | Fittings | - | 1 | ||
| SB2ADBA | Oscillating Disk | 4d | 1 | ||
| PO2DM-2276 | Manifold Assembly | 5 | 1 | ||
|
|

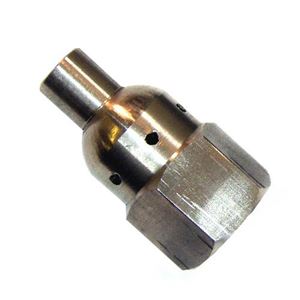

RIFNOZ-BRL-SS | Riffle Nozzle Body-SS | 5.1 | 8 | |
| RIF-NOZ-BODY1-SS | Riffle Nozzle | - | 8 | ||
| SAE#070102-4-4 | Custom Straight Fitting (Welded to Robot’s Manifold) | - | 8 | ||
| TP00035 | Washjets | - | 8 | ||
|
|
PO1C2 | UHMW BLOCK MANIFOLD | 5a | 1 | |
|
|

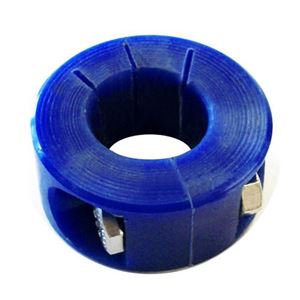

RT1DDA | UHMW SPLIT COLLAR 1’’ I.D. (1/PER MANIFOLD) | 5b | 1 |
