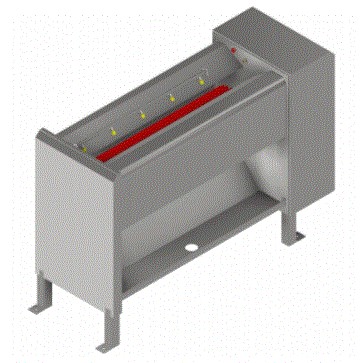

FW1 Mat Cleaner (Floormat Washer)
SKU Details

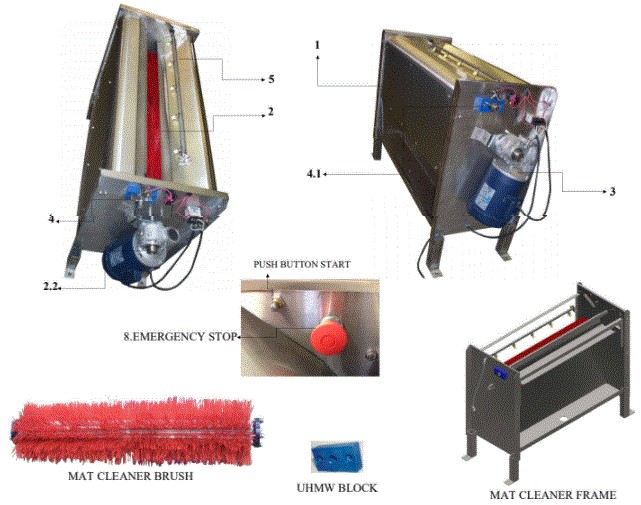

| Sku Images | Part# | Description | Diagram Part # | Quantity | ADDTOCARTDETAILSANDPRICE |
|---|---|---|---|---|---|
| FW1-RELAY-120VAC | RELAY, Mat Cleaner, 120 VAC, 25A, 1 1/2HP, 50/60Hz | 7 | 1 | ||
| FW1-RELAY-220VAC | RELAY, Mat Cleaner, 220 VAC, 25A, 3 HP, 50/60Hz | ||||
| FW1A | MAT FRAME | 1 | 1 | ||
| FW1B | MAT BRUSH, (4 Bolt x 8” DiaX36’’ LG) | 2 | 1 | ||
| FW1C | GEAR MOTOR BOX ASSEMBLY | 2.1 | |||
| FW1D | SHAFT 1”X44” LG | 2.2 | |||
| FW1E | GEAR MOTOR BOX | 3 | 1 | ||
| EM1-2-2850-56C | -EL. MOTOR 1/2HP, 1 PHASE, 2850 RPM, 110/220 VAC, 50 Hz | 1 | |||
| GRBOX-RUG | GEAR DRIVE | ||||
| BRG-UCFL205-16 | -1”, 2 BOLT BEARING-TAPPED BASE | 2 | |||
| FW1F | SHAFT 1”X44” LG | 4 | |||
| PO1C1 | PIVOT UHMW BLOCK | 4.1 | 1 | ||
| FW1LA | MANIFOLD , 32’’ LG (OPTIONAL) | 5 | 1 | ||
|
|
NZ14-05E80 | NOZZLE ¼” NPT, Yellow | 5 | ||
| FW1-120V | PUSH BUTTON START, 120 VAC, 1 PH, 50 Hz, SS | 6 | 1 | ||
| FW1-220V | Mat Cleaner, Push Button Start, 1/2 HP, 220 VAC, 1 ph, 50 Hz, SS | ||||
| FW1PB22R1 | EMERGENCY STOP | 8 | 1 |
