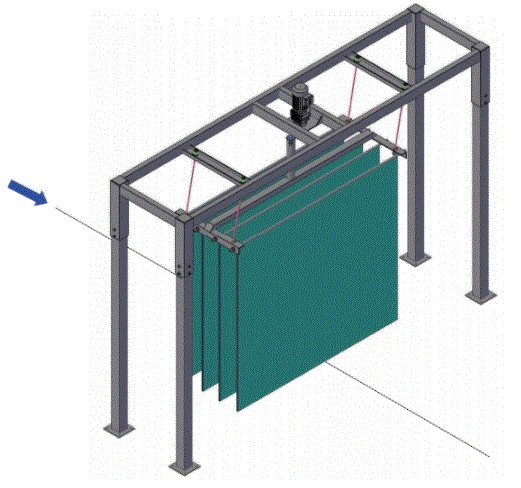

MM5-EL-0914 Mini Mitter




SKU Details

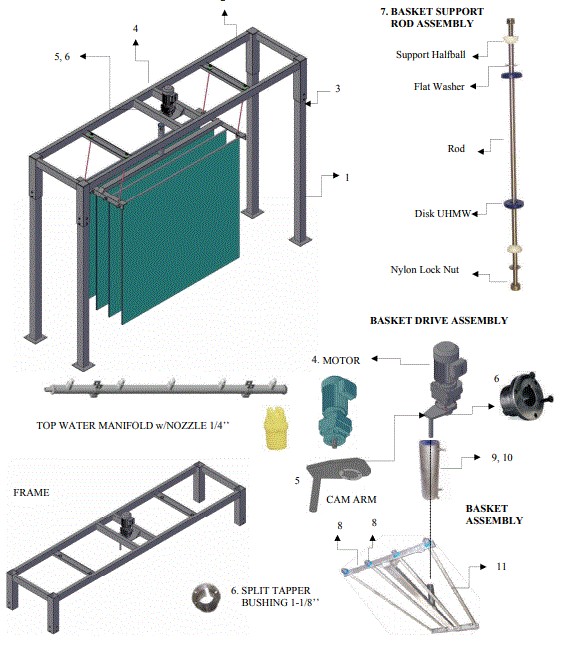

Sku Images Part# Description Diagram Part # Quantity ADDTOCARTDETAILSANDPRICE
MC1A LEG 1 4

MM5B-7-EL FRAME ASSEMBLY: - 1
MM5BA-7-EL FRAME 2 1
SQHS1213150 Square Head Screw ½” – 13 x 1½” LG. (for sleeves) - 16

HHCS1213125 Hex Head Screw 3/8’’-16x2’’Lg (Fully threaded, for pillow block adjusted) 8

MC2BB-1104 Basket Drive Assembly: - 1

GRMTR1-5HP-81-230-460 Electric Motor, displacement 11.9{cu.in./rev.} 4 1

MC2BBA-P1-1-0615 Cam Arm (w/welded weld-on hub) 5
STB-P1X118 Split Taper Bushing P1 1 1/8” 6 4

HHCS3816075 w/Hex Head Screw - 1

MC1C BASKET SUPPORT ROD ASSEMBLY: 7 4

MC1C1-102307 Basket support Rod ½” x 27” lg. - 4

MC1C2 Basket support Disk UHMW - 4

MC1C3 Basket support Halfball - 8

FW12125 Flat Washer ½”I.D. x 1 ¼” O.D. - 8

NLN1213 Nylon Lock Nut ½”-13 - 8

MM4DA-7 Basket Frame 7’ 8 1

MM5D-7 BASKET ASSEMBLY - 1

MC1DB Sleeve Assembly - 1

MC1DB1 Sleeve 9 1

MC1DB2 UHMW Bushing 1” I.D. - 1

SQHS3816075 Square Head Screw 3/8”-16x ¾” lg. 10 3

MC2DC Curtain Rod Assembly 11 4

MC2DCA Curtain Rod 7’4”lg. - 4

MC1DC2-3-4x2x1-8 Plastic Spacer ¾ ” I.D.x2” O.D. x 1/8” width 12 8
PLHN3410 Plastic Hex Nut 3/4”-10 - 16
MC1E CURTAIN (CLOTH) 13 36
MM5L HYDRAULIC & WATER INSTALLATION -
WA1LA Side Water Manifold Assembly (on exit legs): - 1

WA1LAA Manifold - 1

SAE140109E-8 Hex Head Plug ½” NPTM (white plastic) - 1
BRBPP050x050 Barb 1/2”x ½” NPTM - 1

NZ1-4 Nozzle ¼” NPTM - 9
PPP3-4 Pipe Clamp ¾”, for Water Manifold (w/screw fasteners ¼”-20) - 2
