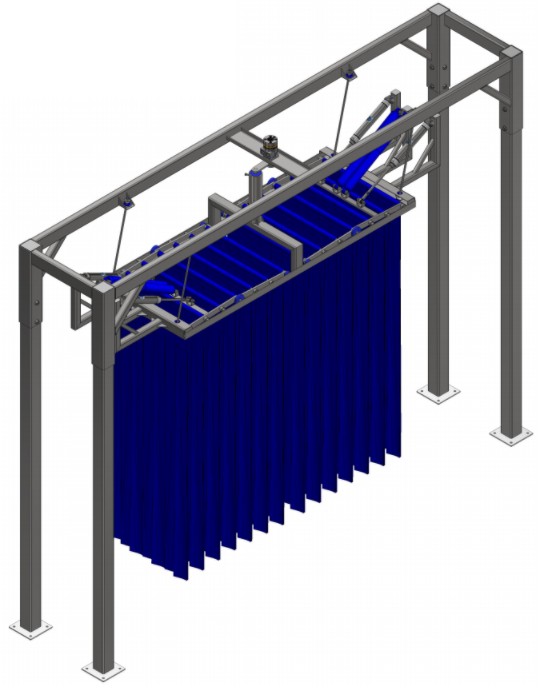

MM5-R-0818 Retractable Mini Mitter
SKU Details

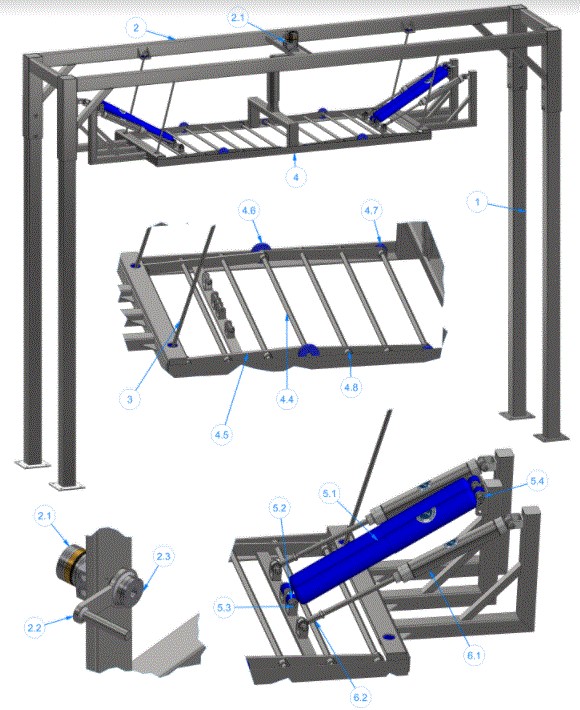

| Sku Images | Part# | Description | Diagram Part # | Quantity | ADDTOCARTDETAILSANDPRICE |
|---|---|---|---|---|---|
| MC1AMM5B | Leg | 1 | 4 | ||
| MM5BA | Frame | 2 | 1 | ||
| SQHS1213150 | Square Head Screw ½” – 13 x 1½” LG. (for sleeves) | 16 | |||
| MC2BB-1104 | Basket Drive Assembly: | - | 1 | ||
|
|
WA1KM | Hydraulic Motor, displacement 11.9 [cu.in./rev.] | 2.1 | 2 | |
| MC2BBA-P1-1-0106 | Cam Arm (w/welded weld-on hub) | 37 | 1 | ||
|
|
STB-P1X100 | Split Taper Bushing P1 1” | 2 | ||
| HHCS3816075 | w/Hex Head Screw | - | 4 | ||
|
|
MC1C | BASKET SUPPORT ROD ASSEMBLY: | 6 | 8 | |
|
|
MC1C1 | Basket support Rod ½” x 27” lg. | - | 8 | |
|
|
MC1C2 | Basket support Disk UHMW | - | 16 | |
|
|
MC1C3 | Basket support Halfball | - | 16 | |
| FW12125 | Flat Washer ½”I.D. x 1 ¼” O.D. | - | 8 | ||
| NLN1213 | Nylon Lock Nut ½”-13 | - | 16 | ||
| MM5D-R | Fully Retractable Basket for Mini Mitter, Circular Motion, 7' Basket, SS ... | - | 1 | ||
| MM5DA-7-R | Basket frame 7’ | 4 | 1 | ||
|
|
MC1DB | Sleeve Assembly | - | 2 | |
|
|
MC1DB1 | Sleeve | 8 | 2 | |
|
|
MC1DB2 | UHMW Bushing 1” I.D. | - | 2 | |
| SQHS3816075 | Square Head Screw 3/8”-16x ¾” lg. | - | 6 | ||
| MM5DA-RF | Folding Frame Assembly | 4.3 | 1 | ||
| MM5DCA-RF | Rods 48” [For Cloth] | 4.4 | 14 | ||
| MM5DCB-RF | Folding Mounting Frame Only | 4.5 | 1 | ||
| FW100200 | Flat washer 1’’ I.D. x 2’’ O.D. | 4.6 | 2 | ||
|
|
WA1FA | SHOCK ABSORBER ASSEMBLY: | 3 | 2 | |
| WA1FAA | Shock Absorber | 3.1 | 4 | ||
|
|
WA1FA1 | UHMW Bushing 3/8” I.D. | 3.2 | 8 | |
| WA1FB | PIN Æ3/8” x 6” LG. | 3.3 | 4 | ||
|
|
WA1FC | COLLAR 3/8” | 3.4 | 4 | |
| WA1GA | RETRACT KIT: | 2 | 1 | ||
|
|
AC2X10 | AIR CYLINDER 2”x10” | 2.1 | 1 | |
|
|
BJ1-2-20 | BALL JOINT ROD END1/2-20 | 2.2 | 1 | |
| WA1GC | Front pin ½” x 2” LG | 2.5 | 1 | ||
| MC1E | CURTAIN (CLOTH) | 10 | 56 | ||
| MM5L | HYDRAULIC & WATER INSTALLATION | - | |||
|
|
WA1LA | Side Water Manifold Assembly (on exit legs): | - | 2 | |
|
|
WA1LAA | Manifold | - | 2 | |
| SAE140109E-8 | Hex Head Plug ½” NPTM (white plastic) | - | 1 | ||
|
|
BRBPP050x050 | Barb 1/2”x ½” NPTM | - | 2 | |
| NZ14 | Nozzle ¼” NPTM | - | 9 | ||
| PPP3-4 | Pipe Clamp ¾”, for Water Manifold (w/screw fasteners ¼”-20) | - | 4 |
