2WAMC2 DUAL Z-WRAP MITTER COMBO

The AVW DUAL Z-WRAP MITTER COMBO operate on gravity. No complicated controls because of the design it can self adjust to most conveyor speed requirements. Simple design and low maintenance. The mitter curtain has a unique basket motion that provides aggressive motion on the vehicle surface not just at the top of the basket. It is constructed of high grade stainless steel. Telescopic height adjustment allows for easy installation even in settings with limited or obstructed heights. There are no bearings to grease on this unit.

Product Features:

Hydraulic Motors
Wrap Around Displacement 11.9cu.in./rev., 60 RPM)
Water: 1/2” NPT Outlet
Equipment Center Line 28” from inside Conveyor Rail

SKU Details

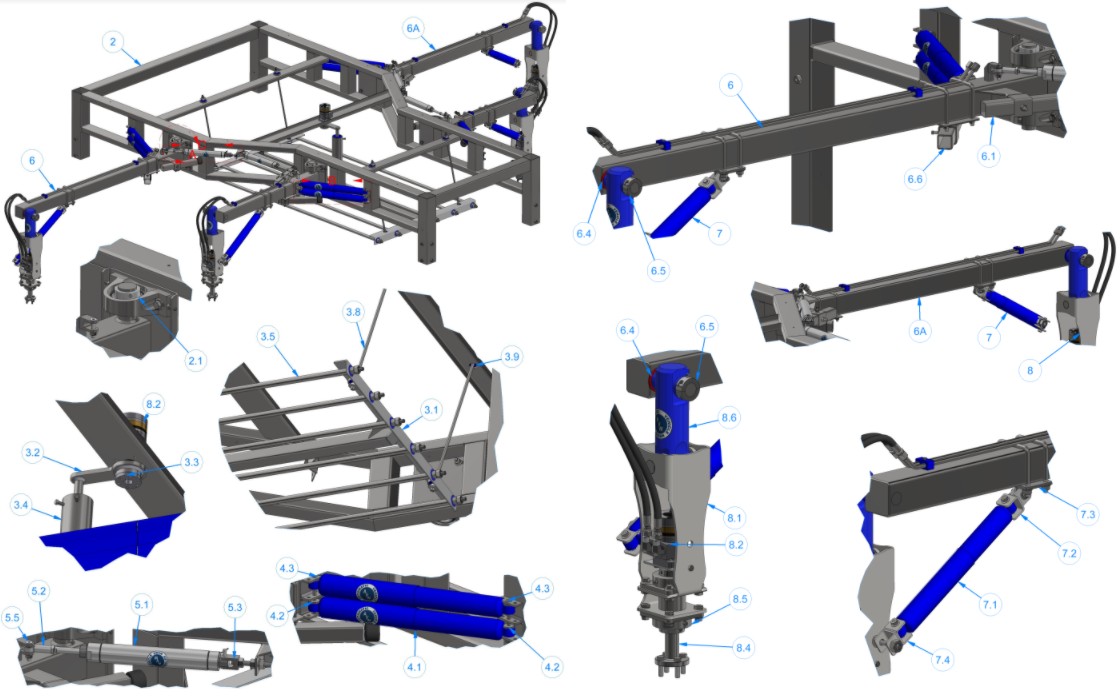

Part#	Description	Diagram Part #	Quantity
WA2GA	FRONT MOUNT:	2.3	1
WC3A	Leg, w/Manifold, for Wrap Mitter Combo Leg, SS	1	4
2WAMC2	Dual "Z"-Wrap w/Full Mitter Combo (Brushes Not Included)	2	1
WA8K-EL	WRAP AROUND SHAFT ASSEMBLY:	8	2
MC2D	BASKET DRIVE ASSEMBLY:	3	1
WA8KA-EL	Motor Mount	8.1	2
WA1FA	SHOCK ABSORBER ASSEMBLY:	4	4
WA1GA	RETRACT KIT:	5	1
NLN3816Z	Nylon Lock Nut: 3/8"-16 Zinc)
WA1D/WA1E/WA1DA/WA1EA	ARM ASSEMBLIES	6	1
WA5KB	Brush Shaft Æ1 ½” x 10 ½” lg.	5.2	2
WA1KCB	4-bolt Bearing 1 ½”	5.3	8
HHCS1213175	Hex Head Cap Screw ½” – 13 x 1 ¾” lg.	-	4
WA1M-72-510	BRUSH ASSEMBLY (design:5’’ core, 72’’ Lg)	9	4
FW12100	Flat Washer ½” I.D. x 1” O.D.	-	16
SLW12	Split Lock Washer 1/2”	-	8
SQHS1213150	Square Head Screw ½” – 13 x 1½” LG. (for sleeves)	-	16
WA2H	UNIVERSAL COUPLING (Optional)	5.5	2
HHCS3816200F	Hex Head Cap Screw 3/8’’-16x2’’LG	-	16
WA1WB	PILLOW BLOCK 2”	1.3	4
WA2F-0318	Wrap Stabilizer Kit, with Fasteners and U-bolt Rear Mount to Arm; with 4" x 5-3/4" Heavy Duty Plate and Two U-bolts. (1 set - 2 pcs.)	7	2
WA2FA	Shock Absorber Assembly	6.1	2
HHCS1213225	Hex Head Cap Screw ½” – 13 x 2 ¼” LG.	-	4
WA2FC	Rear Stabilizer Mount	6.2	2
FW12125	Flat Washer ½”I.D. x 1 ¼” O.D.	-	8
WA2DAE	Stabilizer Bracket Kit	6.3	2
SLW1/2	Split Lock Washer		8
WA2FB-0416	Front Stabilizer Mount	6.4	2
MC2DA	Basket Frame 7’	11	2
WA1L	HYDRAULIC & WATER INSTALLATION	-	-
WA1LA	Side Water Manifold Assembly (on exit legs):	-	2
MC2BBA-P1-1-0114	Cam Arm (w/ welded weld-on hub)	3.2	1
WA1LAA	Manifold	-	2
P1X100	Split Taper Bushing P1 1”	3.3	1
MC1DB	Sleeve Assembly	-	2
SAE140109P-8	Hollow Hex Plug ½” NPTM	-	3
BRBPP050x050	Barb 1/2”x ½” NPTM	-	2
MC1DB1	Sleeve	8	2
MC1DB2	UHMW Bushing 1” I.D.	-	2
NZ1-4	Nozzle ¼” NPTM	-	10
SQHS3816075	Square Head Screw 3/8”-16x ¾” lg.	-	6
PPP3-4	Pipe Clamp ¾”, for Water Manifold (w/screw fasteners ¼”-20)	-	4
MC2DC	Curtain Rod Assembly	9	8
MC2DCA	Curtain Rod 7’4”lg.	-	8
MC1DC2-3/4x2x3/8	Plastic Spacer ¾ ” I.D.x2” O.D. x 3/8” width	-	12
PLHN3410	Plastic Hex Nut ¾”-10		32
MC1C	BASKET SUPPORT ROD ASSEMBLY:	6	8
MC1C1	Basket support Rod ½” x 27” lg.	-	8
MC1C2	Basket support Disk UHMW	-	16
MC1C3	Basket support Halfball	-	16
NLN1213	Nylon Lock Nut ½”-13	-	16
WA1FAA	Shock Absorber	3.1	4
WA1FA1	UHMW Bushing 3/8” I.D.	3.2	8
WA1FB	PIN Æ3/8” x 6” LG.	3.3	4
WA1FC	COLLAR 3/8”	3.4	4
AC2X10	AIR CYLINDER 2”x10”	2.1	1
BJ1-2-20	BALL JOINT ROD END1/2-20	2.2	1
WA2GA1	Clevis	-	1
WA2GA2	Threaded rod ½” -13x5”LG.	-	1
WA1GB	Pin 3/8”x1½”lg.	2.4	1
CP3-8	Cotter Pin	-	1
WA1GC	Front pin ½” x 2” LG	2.5	1
WA1GD	Collar ½”	-	1
JN1220	JAM NUT	-	1
HHCS3816075	w/Hex Head Screw	-	4
NLN3816	Nylon Lock Nuts	-	4
