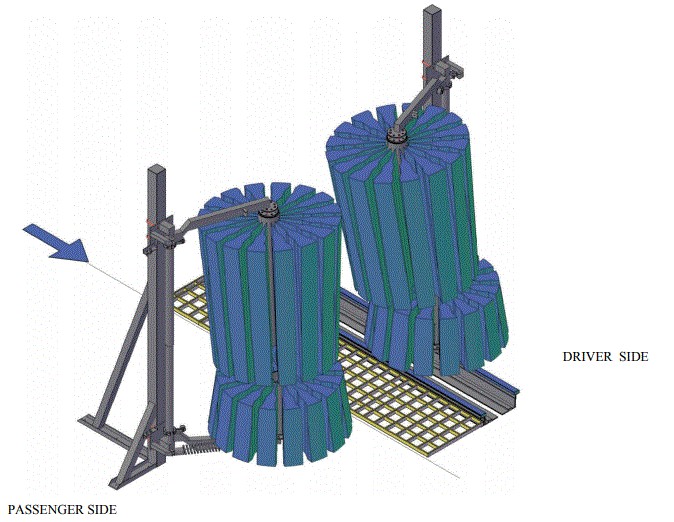

CONTOUR BRUSH - KAADY Style, Model CB2 - Upper Brush Hydraulic Installation - Passenger Side
SKU Details
| Sku Images | Part# | Description | Diagram Part # | Quantity | ADDTOCARTDETAILSANDPRICE |
|---|---|---|---|---|---|
| RB2LP | (UPPER BRUSH): | - | 1 | ||
| RB1LPA | Hydraulic Tube Assembly: | - | 2 | ||
| RB1LPA1x30 | Hydraulic tube ½ ”O.D.xW.035”X30’’LG, stainless | - | 2 | ||
| SAE070115-8 | Tube support sleeves ½” JIC | - | 4 | ||
| SAE070110-8 | Nuts ½” JIC | - | 4 | ||
| RB1LTC1-2 | Tube Clamp ½ ” | - | 2 | ||
| SAE070201-8-8 | Fitting 90°elbow ½” JIC x ½ ”JIC | - | 2 | ||
| RB2LDB | HYDRAULIC HOSE ASSEMBLY : (for Motor) | - | 2 | ||
| SAE100R7-06x16-1-2 | Hydraulic Hose 3/8’’I.D x 16-1/2’’lg, thermoplastic | - | 2 | ||
| FC5810-0806 | Crimp Fitting SAE 37° JIC swivel (female) | - | 4 | ||
| RB1LDD | Hydraulic Hose Assembly; | - | 2 | ||
| SAE100R7-06x19 | Hydraulic Hose 3/8’’I.D x 19, thermoplastic | - | 1 | ||
| SAE100R7-06x20 | Hydraulic Hose 3/8’’I.D x 20’’lg, thermoplastic | - | 1 | ||
| FC5807-0806 | Crimp Fitting SAE 37° JIC male flare | - | 2 | ||
| SAE070601-8-8 | Fitting – Straight Bulkhead ½”JICx ½ ”JIC, brass | - | 2 |
